Bosch PDT 1 Working Instructions

PTD 1 – Working procedure

Please note that that there might be some deviations to the final HMI-concept

(final Software-Configuration)

Please note also that there is a bug in the current software: if you have reached an ambient

temperature of 28 °C on the display there will be following indication: "Lo" (this is a software mistake!)

1. Switching On an Off

There are following possibilities to switch on the tool:

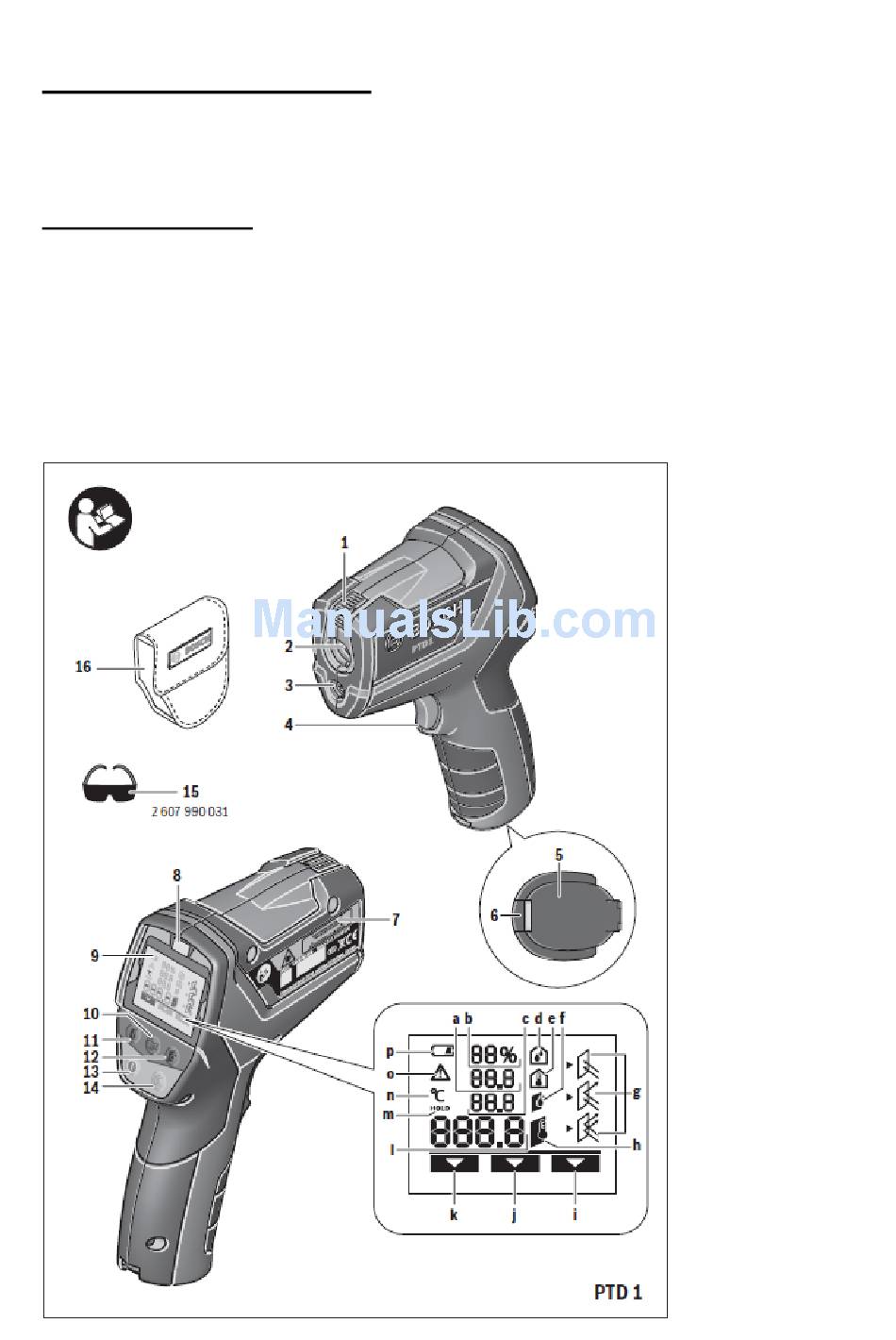

Switch on the tool by pressing the On/Off-button (13)

Switch on the tool by pressing the Measuring-button (4)

Switch off the tool by pressing the On/Off-button (13)

If no button will be pressed for four minutes, the tool will automatically switch off to save

battery capacity.

Table of Contents

Need help?

Do you have a question about the PDT 1 and is the answer not in the manual?

Page 1 PTD 1 – Working procedure Please note that that there might be some deviations to the final HMI-concept (final Software-Configuration) Please note also that there is a bug in the current software: if you have reached an ambient temperature of 28 °C on the display there will be following indication: “Lo” (this is a software mistake!) 1.
Page 2 A: Surface Temperature Mode B: Thermal Bridge Mode C: Mould Warning Mode 2. Measurement preparation Setup emissivity before doing a measurement (c.f. Icon Nr. 14) Group I: (Emissivity = 0,93): Materials such as concrete (dry), brick, sandstone, mortar, marble, stucco, Group II (Emissivity = 0,85): granite, cobblestone, fibreboard, wallpaper, varnish...
Page 3 Group III (Emissivity = 0,75): porcelain (white), varnish (bright), cork, cotton 3. Area of measurement The laser circle indicates the area of measurement. Optimal working distance is 1 m – measurement can be done from 0,1 m to 5 m 4.
Page 4 Green = No mould conditions; Technical background: Surface temperature is higher than dew point temperature Yellow = Deviation to optimal conditions Red = Surface temperature corresponds with dew point temperature  If a there are mould conditions red LED turns on indicating that there is a risk.
