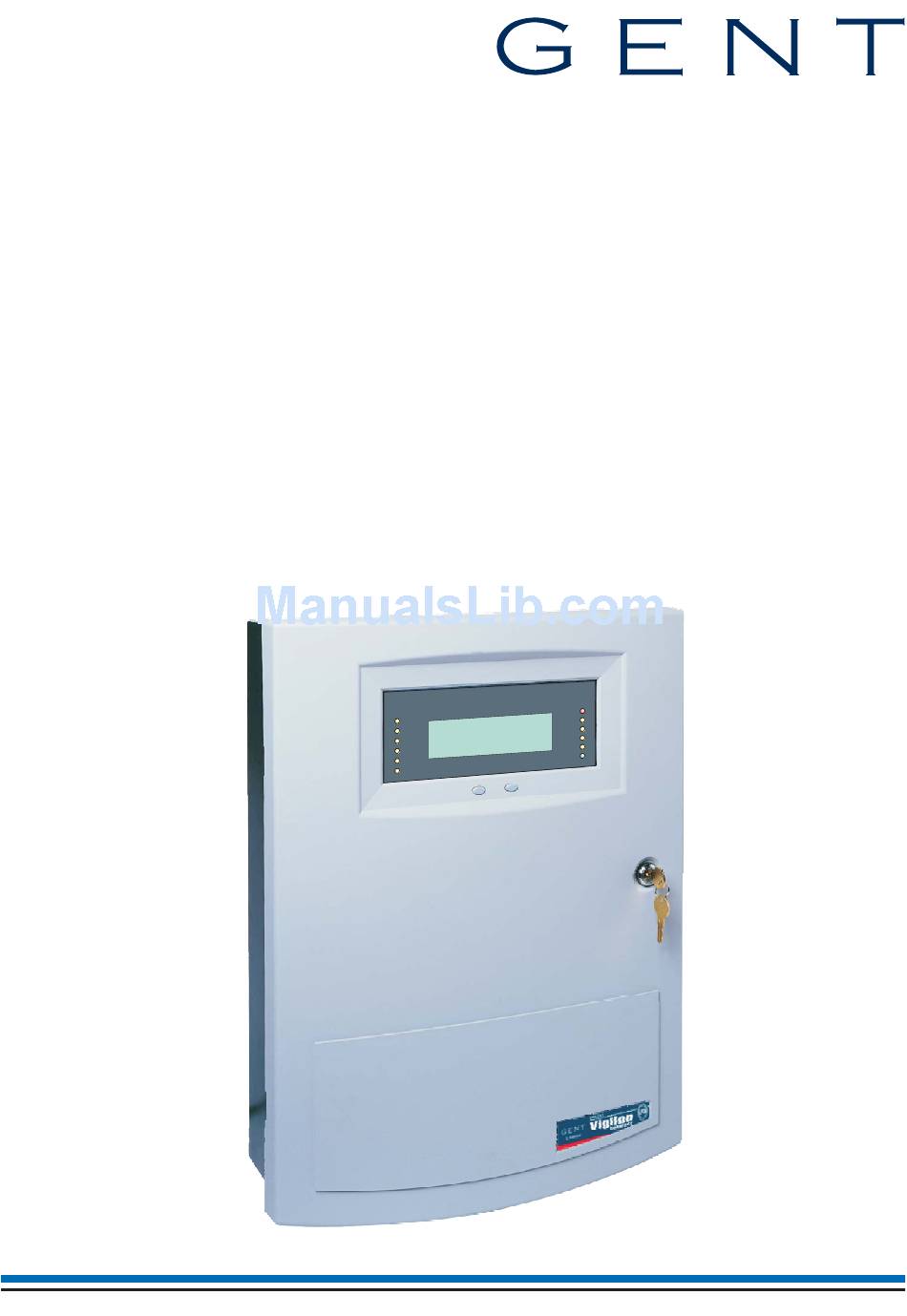

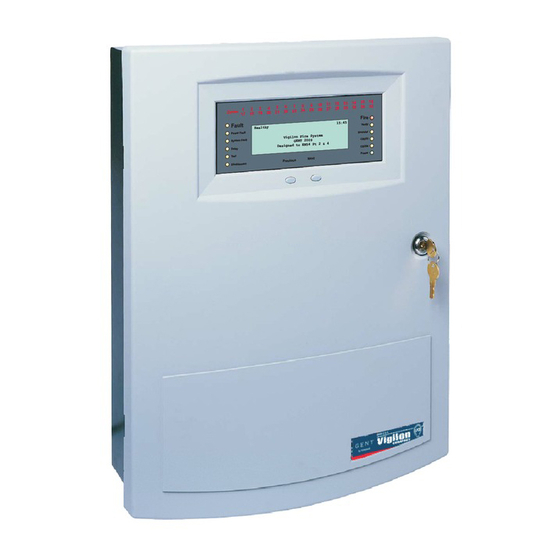

EN54 Vigilon 4/6-loop control panel / Network node
4188-774 issue 4_11/09_ EN54 Vig Ops inst.
Operating instructions
Fire detection and alarm system
14 15 16
10 11 12 13
9
8
29 30 30 32
6
7
5
3
4
25 26 27 28
2
1
21 22 23 24
Zon es
17 18 19 20
Fire
15:4 5
Fau lt
Hea lth y
Sound er
Power Fault
em
Vigi lon Fire Syst
CB253
System Fault
GENT 2009
Pt 2 & 4
Desi gned to EN54
CB254
Delay
Test
Next
Pre viou s
Disab lemen t
by Honeywell
Verify
Power
Advertisement
Table of Contents
Related Manuals for Gent Vigilon EN54
Summary of Contents for Gent Vigilon EN54
- Page 1 15:4 5 Fau lt Verify Hea lth y Sound er Power Fault Vigi lon Fire Syst CB253 System Fault GENT 2009 Pt 2 & 4 Desi gned to EN54 CB254 Delay Power Test Next Pre viou s Disab lemen t...
-
Page 2: Table Of Contents
Operating instructions Editing labels - - - - - - - - - - - - - - 28 Contents How to edit a device label - - - - - - - - 28 Preface - - - - - - - - - - - - - - - - - 3 How to edit an I/O line label - - - - - - - 29 Associated Documents - - - - - - - - - - 3 How to edit a zone label - - - - - - - - - 29... -
Page 3: Preface
Vigilon EN54 fire system Symbol Keys Preface This is the forth issue of the operating instructions for the Vigilon fire detection and alarm system. This issue incorporate changes associated with panels What you will see. manufactured post January 2009 having V4.4x software. -
Page 4: User Responsibility
Operating instructions ¨ User responsibility A different manual call point of the system should be tested to ensure the system is Your fire alarm system should have been designed, capable of operating under alarm conditions. installed and commissioned to your site specific ¨... -
Page 5: Control And Indicating Equipment
Vigilon EN54 fire system Repeat panels Control and indicating equipment There may be one or more repeat panels installed in On occurrence of a fire, fault or disablement event in the protected premises to provide secondary the protected premises, the event is quickly indicated indications of the system condition. -
Page 6: Description Of Main Controls And Indicators
Indicators Message display Outer door Fault Fire 15:45 Verify Power Fault System Fault Vigilon Fire System Sounder GENT 2009 Designed to EN54 Pt 2 & 4 CB253 Delay Test CB254 Disablement Power Previous Next Key lock to open Access level 1... - Page 7 Vigilon EN54 fire system Indicators Description Display The Display provides messages of the system status / events by means of 8 lines by 40 characters per line display. Secret-until-lit fire zone indicators. When "Zones" text and Zones (red) number(s) are illuminated it indicates that a FIRE has been detected in the specified zone(s).
- Page 8 Operating instructions Controls Description The 'Fn' buttons are used to select functions and sub-functions of the system menus which appear on the display. Each option in the menus corresponds to one of the function buttons and pressing a button will select the option which appears above it on the display.
-
Page 9: First Level Controls
Vigilon EN54 fire system First level controls 14 15 16 10 11 12 13 29 30 30 32 25 26 27 28 21 22 23 24 Zones 17 18 19 20 Fire 15:45 Fault Verify Healthy Power Fault Sounder Vigilon Fire System... -
Page 10: Normal Condition
21 22 23 24 Zones 17 18 19 20 Fire 15:45 Verify Fault Health y Power Fault Sounder Vigilon Fire System System Fault GENT 2009 CB253 Pt 2 & 4 Designed to EN54 CB254 Delay Power Test Next Previou s Disablement Flashing... -
Page 11: Weekly Tests
Vigilon EN54 fire system Weekly tests Every week during normal working hours the fire detection and alarm system should be tested. It is important to inform the alarm receiving centre of the fire test. The weekly fire test can be carried out at a manual call point without breaking the call point glass. -
Page 12: How To Manually Raise An Alarm Of Fire
Operating instructions How to manually raise an alarm of FIRE If you see a fire in the protected premises and want to raise a fire alarm to warn occupants in the building, you can do this manually by: ¨ Going to the nearest manual call point that is located away from the fire hazard. ¨... -
Page 13: Automatic Detection Of Fire
Vigilon EN54 fire system Automatic detection of FIRE A fire in your protected premises is automatically sensed at any one of the fire detection devices installed in the building, such as a sensor or a fire input from an interface. The control panel actions the alarm sounders in the system and at the same time gives the details of the fire event. - Page 14 Operating instructions Make an entry in the log book Record the event of the event for future reference. The 1st Fire will always Use these keys to scroll Multiple fires appear at top of display. All through the fires, or if the subsequent fires appear outer door is closed, use the beneath the 1st Fire.
-
Page 15: Fault Conditions
Vigilon EN54 fire system Fault conditions A fault in the system, such as failure of mains power to the panel or removal of any monitoring device will cause a Fault condition to appear at the control panel. The control panel will provide details of the event, this event indication is repeated at all repeat indicators, zonal and mimic panels in the system. -
Page 16: Typical Fault Messages
Operating instructions Typical fault messages The table below shows some of the more typical fault messages and indications that may appear at the panel if there are faults in the system. It also gives the meaning and possible rectification action for each fault. Flashing Message Indication... -
Page 17: Disablement Conditions
Vigilon EN54 fire system Disablement conditions A disablement condition is the manual or automatic disablement of a part of the fire detection system. An automatic disablement may be pre-configured for your premises to disable smoke sensors during the normal working hours in areas where smoke or dust may be present. A manual disablement may be necessary where building work is being undertaken that could result in a false alarm. -
Page 18: Typical Disablement Messages
Operating instructions Typical Disablement Messages The following table shows some typical disablement messages and indications that may appear at the panel. Flashing Message Indication Meaning Action The zone specified has If manually disabled then Zone Disabled Disablement been manually or investigate and if at card n automatically disabled. -
Page 19: Menu Controls
Vigilon EN54 fire system Menu controls Panel beeps Flashing on button press Fault Fire Panel Healthy 15:45 Power Fault Verify Vigilon Fire System Sounder System Fault GENT 2009 Designed to EN54 Pt 2 & 4 CB253 Delay [Control] [ Set Up... -
Page 20: To Carry Out A Display Test
Operating instructions To carry out a display test How to change your PIN code " You can test the message display and the indicators on the control panel. The following terms: Password, Press the MENU ON/OFF key and then the F4 PIN, Usercode and Access code mean the key to select [Test/Eng]. -
Page 21: How To View The Historic Events
Vigilon EN54 fire system How to view the historic events Cards inside the control panel Up to 255 events are stored in the Historic log of the The control panel uses the following card reference panel. To view the Historic log. -
Page 22: How To Save Changes To Memory
Operating instructions How to save changes to memory How to view active events If you make any changes to Labels or Password then An active event is an event that is still present and has you must save these to the NVM (Non Volatile not cleared. -
Page 23: How To Set The System Clock
Vigilon EN54 fire system How to set the system clock How to use the integral printer & These operations assume there is an integral printer fitted on the panel. An incorrect setting of the To Switch On the Printer system clock will affect any time Press the MENU ON/OFF key. -
Page 24: How To Enable/Disable A Zone
Operating instructions How to enable/disable a zone How to enable/disable Sensing These operations are not applicable for a These operations are not applicable for a Network node. Network node. A zone is a subdivision of your premises protected by " the fire alarm system. -
Page 25: How To Enable/Disable An Io Line
Vigilon EN54 fire system How to enable/disable an IO line How to enable/disable aux relay The control panel / network node has two auxiliary relays that provide voltage free contacts to control These operations are not applicable for a external equipment in the event of a fire or fault on Network node. -
Page 26: Viewing Labels
Operating instructions Viewing labels How to view an I/O line label The identification label given to each system device can be checked. Devices such as fire sensors, alarm This operation is not applicable for a Network sounders, manual call points, interface units - node. -
Page 27: How To View A Zone Label
Vigilon EN54 fire system How to view a zone label How to view the local panel label When there is a network of control panels and network nodes connected together in a system then This operation are not applicable for a each can be given an identification label, also referred Network node. -
Page 28: To View Or Print A Loop Map
Operating instructions To view or print a loop map Editing labels " These operations are not applicable for a Any changes to labels must be Network node. backed up to the Memory, see the section .A loop map provides information on devices that are 'How to save changes to the memory'. -
Page 29: How To Edit An I/O Line Label
Vigilon EN54 fire system How to edit an I/O line label How to edit a zone label This operation is not applicable for a Network This operation is not applicable for a Network node. node. Each input / output (IO) line of an interface unit can be... -
Page 30: How To Edit A Local Panel Label
Operating instructions How to edit a local panel label How to edit custom label A label is normally given to the control panel to identify A custom message or label is displayed beneath the its location in a network of control panels. A previously Designed to EN54 Pt 2 &... -
Page 31: Maintenance
Vigilon EN54 fire system Maintenance Replacing the glass on a Manual Call Point Disengage the front cover from the call point assembly using the end of the test key. Insert the key into the slots 'E' and from the bottom edge lift out the cover. -
Page 32: Replacing The Glass On An Older Manual Call Point
Operating instructions Replacing the glass on an older Manual Call Point & Take appropriate precautions when clearing broken glass to prevent injury. " A weather resistant version of the manual call point may have two gaskets, there may be a Cover/glass gasket and a Spacer/cover gasket, which must be refitted in their respective positions. -
Page 33: Battery Replacement
Vigilon EN54 fire system Battery replacement It is recommended where batteries are installed they must be replaced after useful life from the date the Vigilon system is first commissioned. " Any servicing work on the Vigilon system must be carried out by a suitably trained person, such as an engineer from the servicing organisation. -
Page 34: Battery Replacement
Operating instructions Battery replacement It is recommended where batteries are installed they must be replaced at 4 Yearly intervals from the date the system is first commissioned. " Any servicing work on the system must be carried out by a suitably trained person, such as an engineer from the servicing organisation. - Page 35 Vigilon EN54 fire system Notes...
- Page 36 Gent by Honeywell reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions of changes. Hamilton Industrial Park, Waterside Road, Leicester LE5 1TN Website: www.gent.co.uk...
