RB3 R868
User's Manual

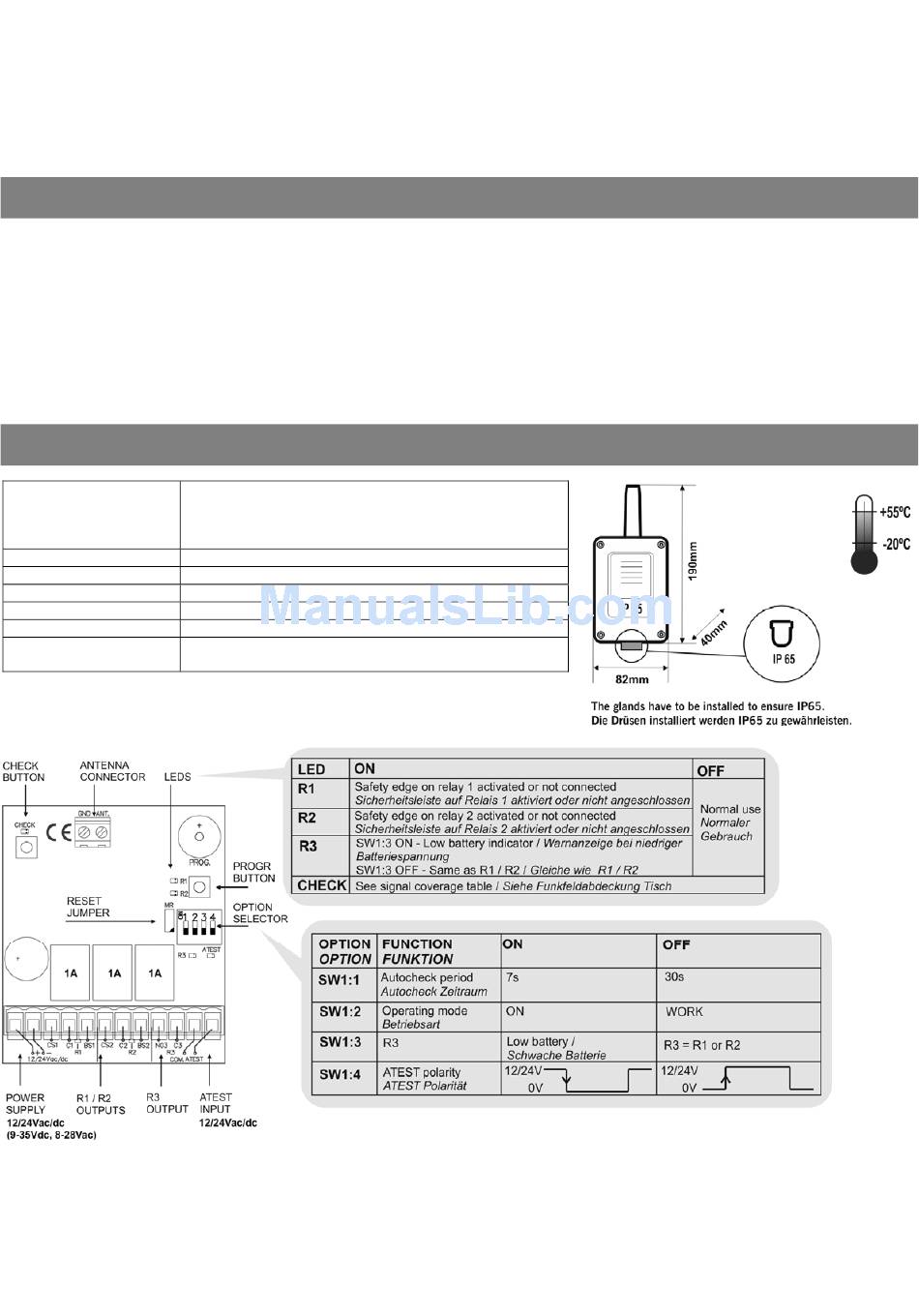

Introduction
The RadioBand system is designed of Commercial and Domestic door applications where a safety edge is used. The system provides a
wireless system replacing spiral cables or energy chain systems to provide the safety signal to the door or gate control panel. The receiver
monitors the status of transmitters connected to it. When an obstacle is detected, the RadioBand system puts its output in a safety state,
switching off the receiver relay.
Up to three transmitters per output can be connected to the receiver. There are two outputs on each receiver that can be connected to
the control panel as 8k2 or NC contact.
The system complies with EN ISO 13849-1:2008, category 2, PLd.
The manufacturer reserves the right to change the specification of the equipment without prior warning.
Technical data
Frequency
Memory
Operating consumption
Radiated power
Range (in open field)
Reaction time (typical)
Maximum reaction time
when interferences
1248081_Rev2.1 RB3 R868
Multifrequency system 868 MHz auto-adjustable (Channel 1:
868,700 -869,200MHz¸Channel 2: 868,000 -868,600MHz;
Channel 3: 869,400 -869,650MHz; Channel 4: 869,400 -
869,650MHz)
6 transmitters (3 on relay 1, 3 on relay 2)
Max 255mA
< 25mW
50 m
35ms
220ms
In order to comply with the EN 12978:2003 product standard and assure the correct operation of the
system, it is mandatory to follow the instructions below, to avoid serious dangerous to persons.
· SW1:1 is allowed to be set at ON, only if the door cycle is between 7s and 30s.
· SW1:1 is allowed to be set at OFF, only if the door cycle is greater than 30s.
Note: If the door cycle is smaller than 7s, this system must not be used.
