X220 Manual
(V1.0)
Disclaimer and Warning
Thank you for purchasing X220.
Please read this instruction manual carefully before using this product. By using this product, you
hereby agree to this disclaimer and signify that you have read it in full.
Please mount and use this product as per this manual strictly. As manufacturer has no control over
use, setup, final assembly, modification (including use other parts such as motor, ESC, propeller
etc),no ability shall be assumed nor accepted for any resulting damage or injury.As it may cause
wireless interference in the living environment, please take effective measures to avoid it.
Any parts of this manual is subjected to change without prior notice.
Any problems while mounting this frame, please contact with us or authorized agents.
Product Overview
Introduction
X220 is a racer for hobbyist. It is a high-integrated product with highly flexible control. Equipped with
latest motor MR2205-2300KV and propeller 5 inch 3 blades prop as well as the popular XM20A
BLHeli firmware ESC ( Oneshot support), flight range of remote control more than 1000 meters.
To gain the quality and real-time shoot for FPV, X220 combines with 32CH transmitter(the switch can
shift between 20mW and 200mW) with 1/3''CMOS lens, which supports 127 and wider 160 shooting
and brings you the exciting FPV experience every moment.
X220 is with OSD for video, the real-time status will be returned back to the display. X220 is with
SPRACING F3 which runs Cleanflight flight control (FC) software, just connect with battery, receiver
and set remote control.

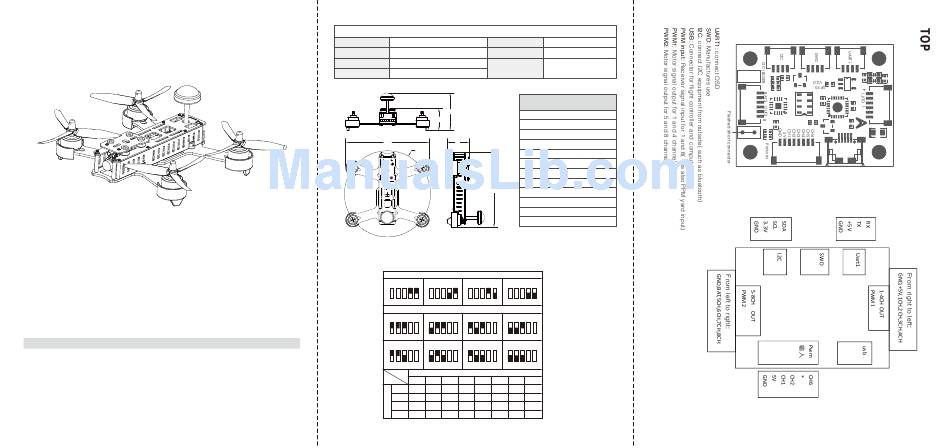

X220 Power set
Flight controller SP F3 CleanFlight Motor
propeller 5 inch Transmitter
ESC 20A（BLHeli XM)
Weight
(excluded battery)
Lens 1/3" CMOS lens FOV:160°
96
57
214 57
Ø220
191
Switch frequency selection
Dial 12345 switch to choose required FR/CH for 32 channels
FR
F R 1 ( A) F R 2 ( B) F R3 ( C) F R4 ( D)
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
CH
C H1 C H2 CH 3 C H4
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
C H5 C H6 CH 7 CH 8
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
C H
CH
F R
C H1 CH 2 CH 3 CH 4 CH 5 CH 6 C H7 CH 8
F R 1 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
F R 2
5733M 5752M 5771M 5790M 5809M 5828M 5847M
FR
F R 3
5705M 5685M 5665M 5645M 5885M 5905M 5925M
F R 4
5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
2205/2550KV
5.8G 200mW/32CH
143g
Box List
X220 frame 1pc
5 inch propeller 4 pairs
5.8G Antennas 1PC
Antennas fixed seat A/B 1pc for A/B
Gopro camera Base 1pc
T-nail 4pcs
T-nail cover 4pcs
PVC gum cover 2pcs
Antennas pipe 2pcs
M1.5x5 screw 6pcs
M5.0 nylon lock nut (CW) 2pcs
M5.0 nylon lock nut(CCW) 2pcs
5866M
5945M
