- Page 1 HD ENCODER AND MODULATOR HDMI TO DVB-T DIGITAL RF (MPEG-4) 14MM-DM05 USER MANUAL 1-15...
-
Page 2: Product Introduction

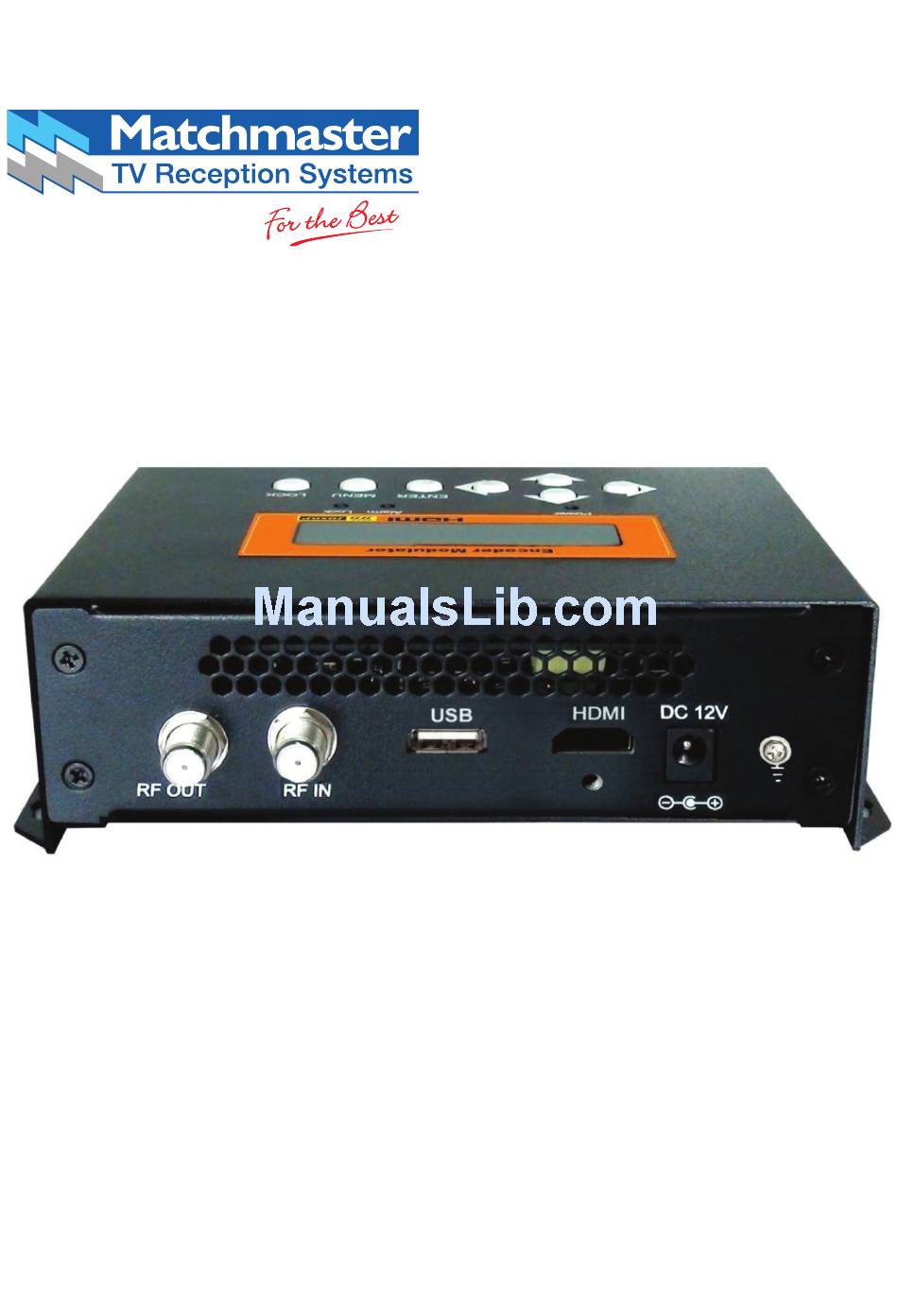

PRODUCT INTRODUCTION Indicator LCD Window Control Buttons RF out RF mix in USB Port for Upgrade HDMI in DC 12V Grounding Working principle DM05 Encoder Modulator HDMI input Monitor RF out Combiner Encoder Modulator Attenuation: 10dB RF in STB/IRD TV+AV to the distribution network Camera Closed Circuit... -
Page 3: Technical Specifications
Technical Specifications HDMI Encoding Section - Video Encoding H.264 MP@L 3.0/3.1/4.0 (MPEG4) Interface HDMI*1 Resolution Input Output 480i@59.94/60FPS 480p@30FPS 576i@50FPS 576p@25FPS 720p@50/59.94/60FPS 720p@50/59.94/60FPS 1080i@50FPS 1080p@25FPS 1080i@59.94/60FPS 1080p@30FPS 1080p@59.94/60FPS 1080p@30FPS Aspect ratio 16:9, 5:4 Bit rate 1.000~18.000 Mbps HDMI Encoding Section - Audio Encoding MPEG-1 Layer 2, MPEG-2 AAC Sample rate... -
Page 4: Safety Instruction And Installations
SAFETY INSTRUCTION AND INSTALLATIONS Safety instruction WARNING: Hot plug is not allowed since it may cause system failure. To prevent fire or electrical shock, do not expose the device to rain or moisture. The encoder modulator is powered with a voltage of 12V DC. The power supply voltage must not exceed the recommended voltage, which otherwise may cause irreparable damage to the device and the invalidation of the warranty. -
Page 5: Cascade Installations
Cascade Installations DM05 unit has 1 AV signal to RF output encoded as DVB-T Digital TV signal. Several DM05 units can be cascaded in order to increase the capacity. To cascade 2 or more units, connect the RF output of the preceding unit to the TV input (loop-through) of the next unit. -
Page 6: Operations And Management
OPERATIONS AND MANAGEMENT DM05 is controlled and managed through the key board and LCD display. LCD Display - It presents the selected menu and the parameter settings. The backlight in the display is on when the power is applied. LED - These lights indicate the working status Power: It lights on when the power supply is connected. - Page 7 Initializing Down Enter Menu Lock DVB-T 650.0MHz 1080i 6.93Mbps Main Menu Status Status Alarm Status Uptime Main Menu Encoder Encoder Video In Status Resolution Video Bitrate Audio Bitrate Audio Format Main Menu Stream Stream TSID ONID Network ID Network name Service name Provider name Program number LCN...
- Page 8 Save Config? Main Menu System System Save Config System Load Saved CFG Load Saved CFG? System Factory Reset Reset all sets? LCD Time-out System LCD Time-out System Key Password Set Password 000000 System Lock Keyboard Lock Keyboard 0035564905656 System Product ID 70ec8f7b0000f System Version Encoder Modulator...
- Page 9 12. FEC: Forward Error Correction rate. It contains 1/2, 2/3, 3/4, 5/6 and 7/8. 13. FFT (Transmission Mode): Select between 2K and 8K. 14. Guard Interval: Select among 1/32, 1/16, 1/8 and 1/4. 15. RF Level: Adjust it at range of -14~ +6dBm (73-93dBµV) NOTE: The different combination of bandwidth, constellation, guard interval and FEC (code rate) will form a different output code rate.
-
Page 10: How To Upgrade
HOW TO UPGRADE DM05 encoder modulator is embedded with USB Port for upgrading. The supported file format is IMG. USB port for upgrade Upgrade steps: Insert USB device Upgrade automatically (It will need 10-20 seconds to upgrade. After upgrade, DM05 will reboot automatically.) Remove USB device Power off Power on. - Page 11 Appendix Australia Air Channels Australia Air Channels Frequency Frequency Start Center Start Center 599.5 177.5 606.5 184.5 613.5 191.5 620.5 198.5 627.5 205.5 634.5 212.5 641.5 219.5 648.5 226.5 655.5 662.5 529.5 669.5 536.5 676.5 543.5 683.5 550.5 690.5 557.5 697.5 564.5 704.5...
- Page 12 16.79 18.66 19.76 20.35 19.59 21.77 23.05 23.75 22.39 24.88 26.35 27.14 18.66 20.73 21.95 22.62 21.77 24.19 25.61 26.39 24.88 27.65 29.27 30.16 19.59 21.77 23.05 23.75 22.86 25.40 26.89 27.71 26.13 29.03 30.74 31.67 AU Technical Support NZ Technical Support 1800-AERIAL 0800-AERIAL 237425 237425 www.matchmaster.com.au www.matchmaster.co.nz...
