Focus PL-208R User Manual

PL-208R
PL-208R

1. 1. 1. 1. Introduction

Introduction Introduction Introduction
The series of wireless electronic switch adpots wireless radio frequency control mode. remote non-directional,
without space constraints. It can be wall and compartment remote control. Hundreds of millions of address codes
never repeated. Similar products never string code. Matching remote controller can remote distance at least 100
meters. It has been widely used in many environments. Such as home, factory, warehouse, office room, store and
so on. it is one of your ideal electronic switch. It classied products as wall switch and hand-held remote controller, it
can matched with our wireless alarm control panel to use. normal simple design, electric supply input, and similar to
most of occasions. Easy installation, beautiful design, it can directly embed in the hole or ceiling. Instead of
traditional switch lamps or lights.
experience the fun of life and convenience. It adopts power saving mode design, battery for remote controller can
use at least 1 year.

2. 2. 2. 2. Specification

Specification Specification Specification
Input voltage: 220V AC
Consumed power: 2W
Most loading current: 5A
Most loading voltage: < 500W
Control mode: Wireless remote and manual control
Remote distance: 100 meters(in the open air)

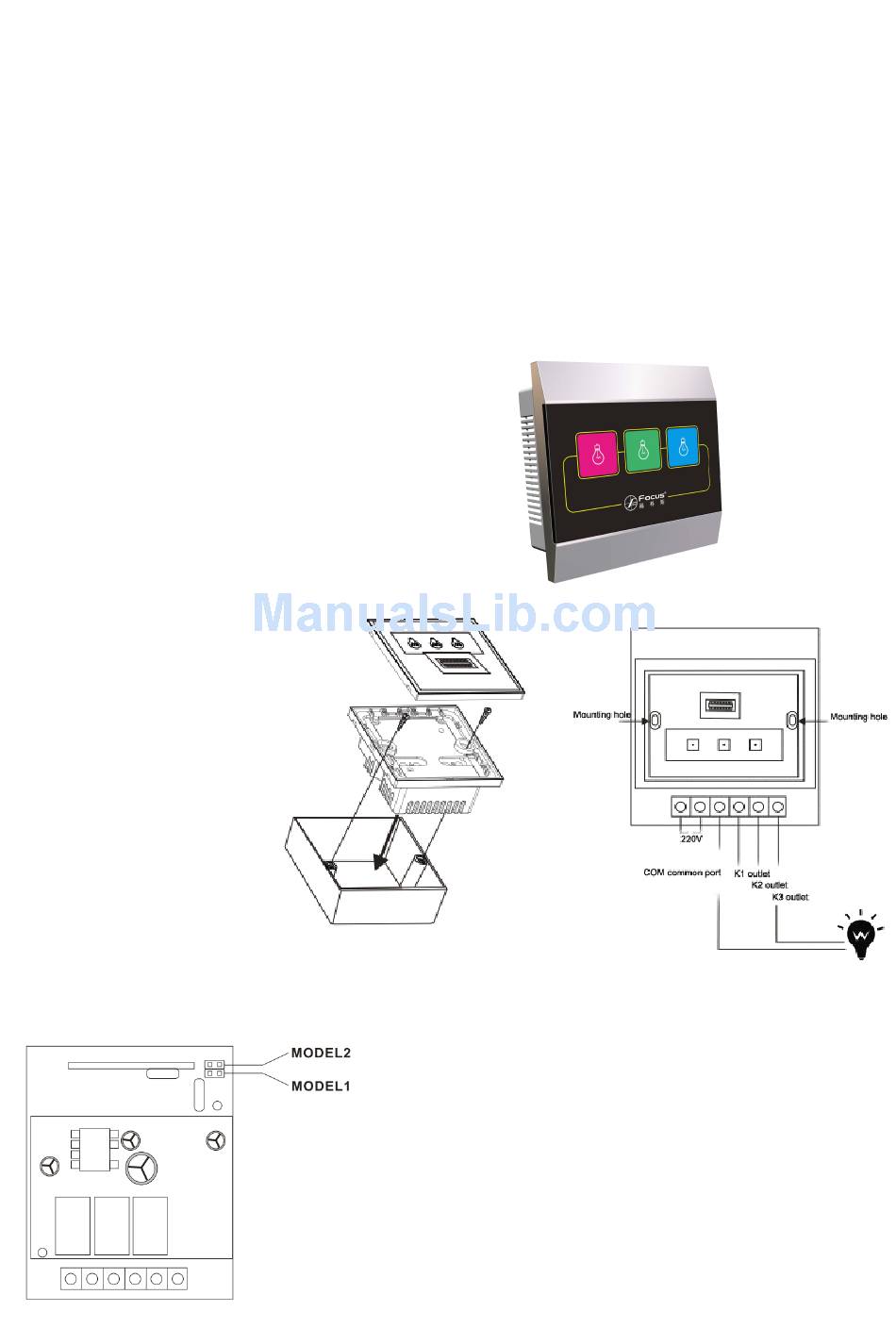

3. 3. 3. 3. Installation

Installation
Installation Installation
1) To make the shell around
toward its outside and tear
down the shell.
2) Pull up the switch, you will
find two screw mounting
hole.
3) Fine the power line and
connect the line as right
photo dispaly.
4) Put the switch into the
wiring box and use two
screws to fix.
5) Intall the surface shell well.
4.Jumper 4.Jumper Switch Switch
4.Jumper

4.Jumper Switch

Switch Operation
1]"MODEL 1" jumper pins is mermory function programme switch. Set corresponding 3 channel power-cut memory
Wireless
PL-208R Wireless PL-208R Wireless Electronic Wireless
Easy protability and comfort for Hand-held remote controller, to make you truly
Operation Operation Notice Notice

Operation Notice

Notice
Electronic Switch
Electronic Switch Electronic Switch Switch User
A Mode setting: MODEL 1 is in short circuit condition,
after power on each use, the switch maintains last
time's power-cut condition. (short circuit is factory
default setting.)
Note Note
Note Note: After operating the switch delay 5 seconds
without electricity, it will maintains current condition.
B Mode setting: MODEL 1 is in short circuit condition,
the switch maintains off after power on each time.
