Ducati 1098R 2008 Installation Instructions

Dynojet power commander iii usb
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
1
Wire Tap
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
®
Strip
1
Alcohol Swab
4
Zip ties
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i736-411
www.powercommander.com
2008 Ducati 1098R
Installation Instructions

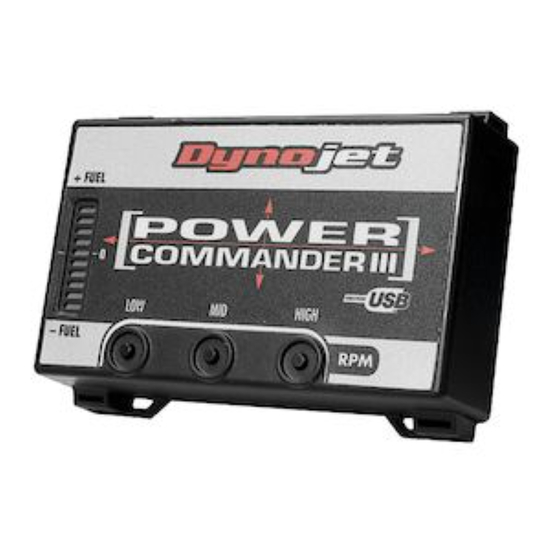

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2008 Ducati 1098R - PCIII USB - 1
