Philips HQ9070 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual

PRODUCT INFORMATION

General

- Rechargeable / Mains
- Automatic voltage selection
- Washable
- One hour charging time
- Green Li-ion battery

Safety information

- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
05/08

TECHNICAL INFORMATION

- Voltage
- Motor voltage
- Shaving heads
- SAP coding

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Remove shaving unit, to prevent damages during repairing.
- Remove the two screws
- Remove the two screws
- Remove the hairchamber from the body.
- Remove the cover.
- Remove the bridge.
- Disconnect the wires from the motor.
- Remove the driving unit by pushing the motor.
- Disconnect the wiring strip (L.C.D.) from the power
supply.
- Remove the power supply.

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (accessories)

- Car cord : 4222 036 08920
Printed in the Netherlands © Copyright reserved

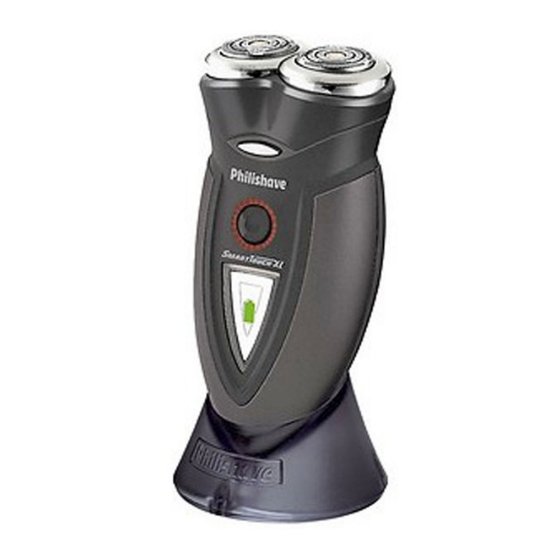

Shaver
HQ9070
: 100 - 240 V, 50 / 60 Hz
: 3.6 V
: HQ9 (4222 036 11150)
: HQ9070
A on the backside of the shaver.
B out of the hairchamber.
Subject to modification
