Summary of Contents for Oak Stoves ZETA5PW

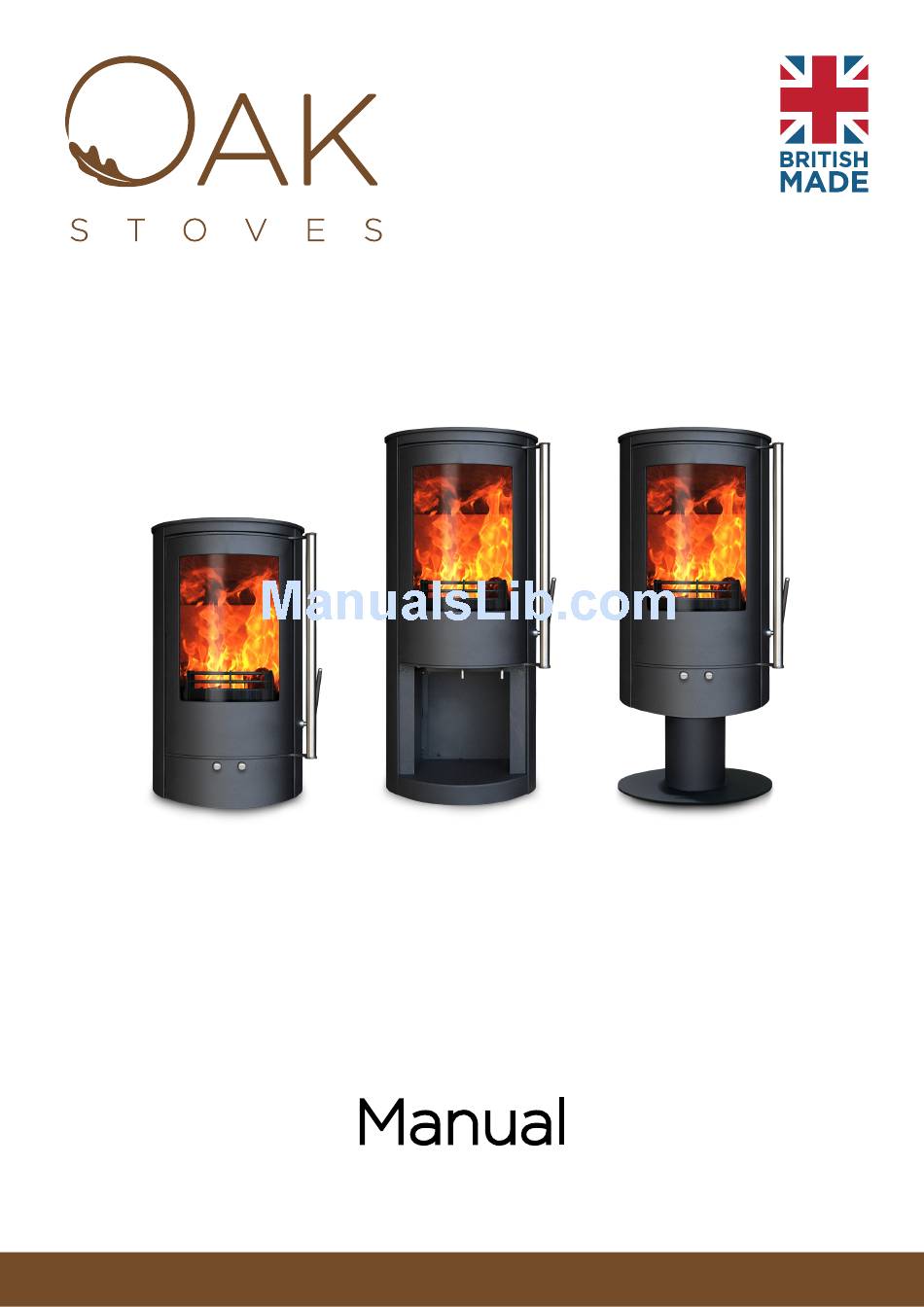

- Page 1 The Zeta 5 Window Series ZETA5CW, ZETA5PW, ZETA5LW Manual Operation & Installation sales@oakstoves.co.uk www.oakstoves.co.uk...
- Page 2 The only remedy to this problem is to remove the paint, prepare the surface for repainting, and repaint. To avoid problems during the curing process, do not touch the surface with anything until the paint is fully cured. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018...
-
Page 3: Table Of Contents
Flue Connection specified. Connecting The Flue On Delivery Of The Stove After Installation Zeta 5W Dimensions Zeta 5W Parts List Maintenance Warranty & Guarantee DEFRA Requirements Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 4: Ec Declaration Of Conformity
Manufacture of the product has taken place in accordance with those specifications. This forms the relevant type approval certification and the required manufacturing processes and checks. Richard Heatherill Technical Director (Europe) - Oak Stoves Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 5: Technical Information
300mm on each side of the stove, or have a 200mm extension on each side of the opening. The hearth plate can consist of natural stone, concrete, metal plate or glass. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 6: Operating Instructions
‘Burning solid mineral fuels’ section on the next page. Also when burning smokeless fuels, the upper baffle vermiculite board (throat plate fireboard) must be removed. Please refer to page 19 for instructions on how to do this. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 7: Setting The Air Control Management
Push slider in to Close completely (right) approx 75% open Secondary slider Pull slider out 75% Push slider in Push in fully to close (left) towards you between 50% - 25% Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 8: Lighting The Stove
When relighting a smokeless fuel fire ensure you have cleared the grate and emptied the ashpan before starting a new fire. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 9: Operating The Stove With The Door Open
When adding fuel ensure that the appropriate protection is worn such as a heat resistant glove Fig. 3 and tools such as fire poker, tong or shovel are used. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 10: Cleaning & Maintenance
Any build up of soot should then be swept off the plate down onto the fire. Refit parts in reverse order when cleaning is finished, for more detail please refer to page 19. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 11: Chimney Sweeping
The smoke entering the room is probably due to a poor draught or a blocked flue. It is advisable to have the flue pressure checked. The minimum operating pressure for a flue is 12 Pascals. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 12: Troubleshooting
The most likely cause of fume emission would be due to flue or chimney blockages. For your own safety it is vital that you regularly check and clean your flue and chimney. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 13: Placement & Fixing Advice
The below diagrams show examples of free standing and external air supply installations. For more information see the Hearth & Fire Surround section. Free Standing External Air Supply 75mm 75mm Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... - Page 14 M12 nuts (not supplied).The Log Store model has M12 nuts built into the base, therefore you will only require x4 M12 bolts (not supplied) for this model. Log Store Model Pedestal Model x4 M12 Nuts x4 14mm Holes Views from underneath of the stoves Zeta 5W Series Manual - V2.8 © Oak Stoves 2018...
-
Page 15: Installation Instructions
The stove must be installed on a flat fireproof hearth for stability and the area in front and around the fire must be clear of any combustible materials. The stove should not be flat Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 16: Flue Connection
Your installer should advise on the operation and maintenance of your stove and chimney and retain this manual for future reference. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 17: Zeta 5W Dimensions
800mm 500mm 420mm 470mm 195mm 240mm 150mm 420mm Front View Side View The Zeta Compact Model ZETA5CW 850mm 125mm 300mm 675mm 460mm 420mm 470mm 420mm 150mm Front View Side View Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 18: Zeta 5W Parts List
Left Flat Inner Side Window Z511 Side Panel Z524b Right Flat Inner Side Window Z512 Regulator Cover Plate Z525 Side Grate Retainer Bars Z513 Pneumatic Door Closer Z526 Air Inlet Assembly Z514 Ash Pan Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 19: Maintenance
Check all chimney / flue joint seal cement hasn’t deteriorated Reseal Monthly or is leaking If you discover any issues or require replacement parts, please call your retailer / installer. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... -
Page 20: Warranty & Guarantee
It is also a condition of the Extended Warranty that your Oak Stoves is regularly serviced (every 12 months) by a suitably trained and qualified individual (HETAS registered) in the United Kingdom (or equivalent in other countries). - Page 21 If the product fault or defect is notified after 14 days from the date on which the fault or defect became apparent, Oak Stoves cannot accept any liability for events or issues which arise after the 14 day period or which...
-
Page 22: Defra Requirements
Air controls (primary, secondary and tertiary air controls) The air controls must be used in accordance with this manual as detailed on pages 8 to 11. Zeta 5W Series Manual - V2.8 © Oak Stoves 2018... - Page 23 What comes with your stove? Manual Stove body with door and handle fitted Ash pan Ash pan handle Protective gloves Flue collar Fire grate retainer bars Riddle grate handle bar Zeta 5W Series Manual - V2.8 © Oak Stoves 2018...
- Page 24 5 Indirect heat output 6 Energy efficiency index 102.2% 7 Energy efficiency at nominal heat output 76.7% 8 Specific precautions See Manual Oak Stoves, Unit 11, Village Farm Industrial Estate, Village Farm Road, Pyle, Bridgend, CF33 6BL +44 (0)845 644 2815 sales@oakstoves.co.uk www.oakstoves.co.uk...
