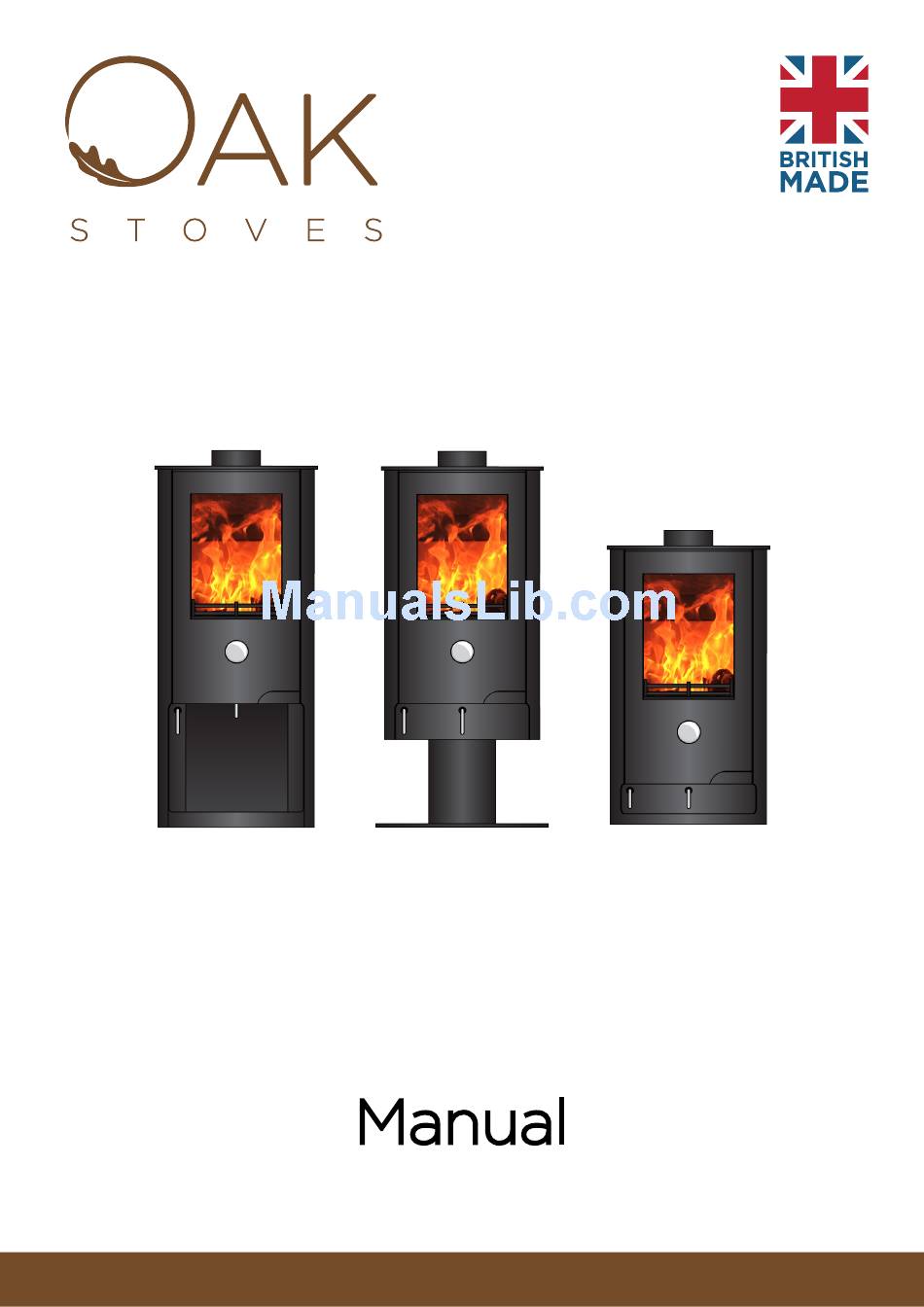

- Page 1 The Zeta 10 Series ZETA10L, ZETA10P, ZETA10C Manual Operation & Installation sales@oakstoves.co.uk www.oakstoves.co.uk...
- Page 2 The only remedy to this problem is to remove the paint, prepare the surface for repainting, and repaint. To avoid problems during the curing process, do not touch the surface with anything until the paint is fully cured. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016...
-
Page 3: Table Of Contents
Hearth & Fire Surround specified. Flue Connection Connecting The Flue Permanent Air Vent On Delivery Of The Stove After Installation Zeta 10 Dimensions Zeta 10 Parts List Maintenance Warranty & Guarantee Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 4: Ec Declaration Of Conformity
EN-13240:2001 & CE marking. Manufacture of the product has taken place in accordance with those specifications. This forms the relevant type approval certification and the required manufacturing processes and checks. Richard Heatherill Technical Director (Europe) - Oak Stoves Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 5: Technical Information
300mm on each side of the stove, or have a 200mm extension on each side of the opening. The hearth plate can consist of natural stone, concrete, metal plate or glass. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 6: Operating Instructions
There are a few additional points to consider when lighting smokeless fuel fires, please refer to the ‘Burning solid mineral fuels’ section on the next page. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 7: Setting The Air Control Management
(on front of door) (5mm gap) gap is 3-4mm Secondary slider Pull slider out 75% Push slider in Push in fully to close (in middle of stove) towards you between 50% - 25% Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 8: Lighting The Stove
When relighting a smokeless fuel fire ensure you have cleared the grate and emptied the ashpan before starting a new fire. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 9: Operating The Stove With The Door Open
Fig. 3 When adding fuel ensure that the appropriate protection is worn such as a heat resistant glove and tools such as fire poker, tong or shovel are used. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 10: Cleaning & Maintenance
If you wish to remove the primary knob completely from the stove you just have to keep turning the knob in an anti clockwise direction. The knob has 100mm of threaded bar fitted to Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 11: Chimney Sweeping
The smoke entering the room is probably due to a poor draught or a blocked flue. It is advisable to have the flue pressure checked. The minimum operating pressure for a flue is 12 Pascals. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 12: Troubleshooting
The most likely cause of fume emission would be due to flue or chimney blockages. For your own safety it is vital that you regularly check and clean your flue and chimney. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 13: Placement & Fixing Advice
The below diagrams show examples of free standing and external air supply installations. For more information see the Hearth & Fire Surround section. Free Standing External Air Supply 75mm 75mm Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... - Page 14 M12 nuts (not supplied).The Log Store model has M12 nuts built into the base, therefore you will only require x4 M12 bolts (not supplied) for this model. Log Store Model Pedestal Model x4 M12 Nuts x4 14mm Holes Views from underneath of the stoves Zeta 10 Series Manual - V1.1 © Oak Stoves 2016...
-
Page 15: Installation Instructions
The stove must be installed on a flat fireproof hearth for stability and the area in front and around the fire must be clear of any combustible materials. The stove should not be flat against a wall, we recommend a minimum clearance of 75mm to prevent restricting airflow. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 16: Flue Connection
Your installer should advise on the operation and maintenance of your stove and chimney and retain this manual for future reference. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 17: Zeta 10 Dimensions
540mm 575mm 200mm 100mm Front View Side View Top View The Zeta 10 Pedestal 10kW Model ZETA10P 1235mm 150mm 380mm 960mm 555mm 540mm 575mm 250mm Front View Side View 265mm Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 18: Zeta 10 Parts List
Baffle Deflector Fireboard Z1023 Glass Sealer Tape Z1011 Side Panel Z1024 Fire Grate Retainer Bars Z1012 Regulator Cover Plate Z1025 Primary Air Knob Z1013 Rotating Riddler Plate Z1026 CE Plate Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... -
Page 19: Maintenance
Baffle Plate, position the Side Fireboard and carefully let the baffle plate down into position. Repeat with opposite side. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016... - Page 20 Check all chimney / flue joint seal cement hasn’t deteriorated Reseal Monthly or is leaking If you discover any issues or require replacement parts, please call your retailer / installer. Zeta 10 Series Manual - V1.1 © Oak Stoves 2016...
-
Page 21: Warranty & Guarantee
The overall paint finish of the stove is not covered by the warranty, you will find you might well wish to repaint the body after a period of time. We recommend purchasing this heatproof paint from Oak Stoves as this will ensure there is no chemical reaction with another heat proof paint. - Page 22 Stove body with door and knob fitted Ash pan Ash pan handle Protective gloves Flue collar Fire grate retainer bar Oak Stoves, 11 Village Farm Industrial Estate, Village Farm Road, Pyle, Bridgend, CF33 6BL +44 (0)845 644 2815 sales@oakstoves.co.uk www.oakstoves.co.uk...
