Securing the USB and Mounting Clips to
USB-600 Series Data Loggers
USB-600 Series data loggers include a clip-on cover for the USB
connector. This cover must be fastened securely to guarantee IP67
moisture protection on the USB-601 and USB-602.
USB-600 Series data loggers are also shipped with a mounting bracket
that you can either permanently attach to a surface or temporarily attach to
an iron-based surface using the integrated magnet.
To ensure IP67 moisture protection on the USB-601 and USB-602, secure
the clip-on cover on the USB connector side first (labeled
secure the other side.
Make sure both the clip-on cover and the mounting bracket click securely
into the slots on each side of the logger.

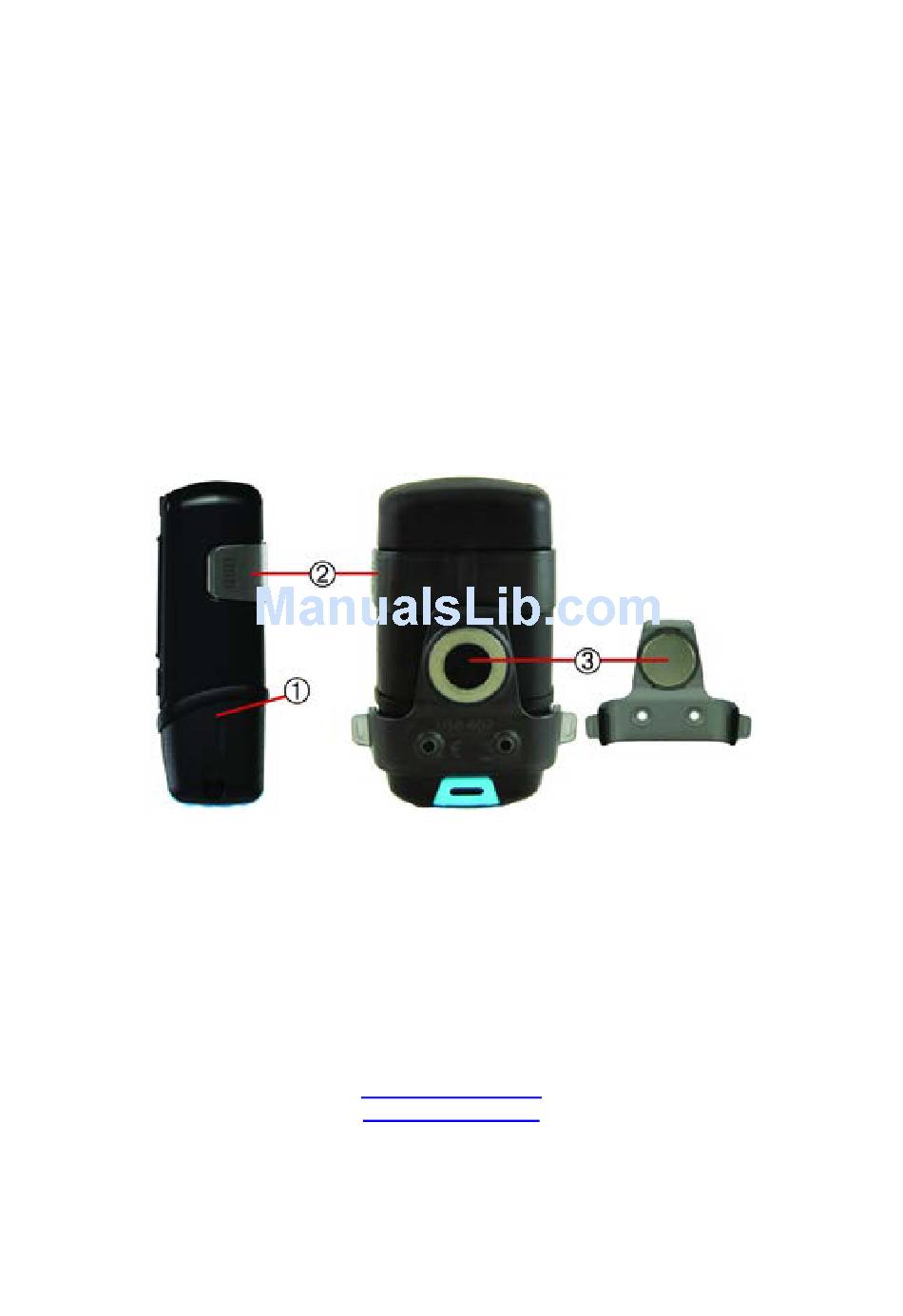

1 Slots for mounting bracket (one on each side)
2 Clip-on USB connector cover (secure clip to guarantee IP67 moisture
protection)
3 Mounting bracket
