FLIR Scout PS-Series Quick Start Manual

Scout PS-Series Quick Start Guide
Power
LED Tasklight
Power Button – The Scout PS-Series camera has three power
states:
On, Off, and Auto Shutdown.
• On - Takes approximately 4 seconds (during bootup the FLIR
splash screen is shown on the eyepiece display).
• Off - Push the power button to turn the camera off.
• Auto Shutdown - If no buttons are pushed for about five
minutes, Auto shutdown 30s, is shown in the display and after
counting down for 30 seconds the camera will turn off.
Display Brightness – Toggle through five brightness settings. If
camera is Off, this button, when held on, turns on the LED Tasklight.
White/Black Hot/Instalert – In White Hot, hotter items appear
as white or light grey. In the Black Hot, hotter items appear as black
or dark grey. In Instalert, hot items in a scene are highlighted in red.
2× Zoom—PS32 only - Causes the image to zoom to 2X.
Freeze Frame—PS24 only - Single frame may be inspected closely.
Diopter Controls – The diopter adjustment knob allows you to
adjust the eyepiece for the best focus.
his document is controlled to FLIR Technology Level EAR 1. The information contained in this document is proprietary and/or restricted and
pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). This document and data disclosed herein or
herewith is not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of FLIR Systems, Inc. Diversion
contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons,
parties, or uses otherwise prohibited.
431-PS00-00-QS Rev 110 sheet 1

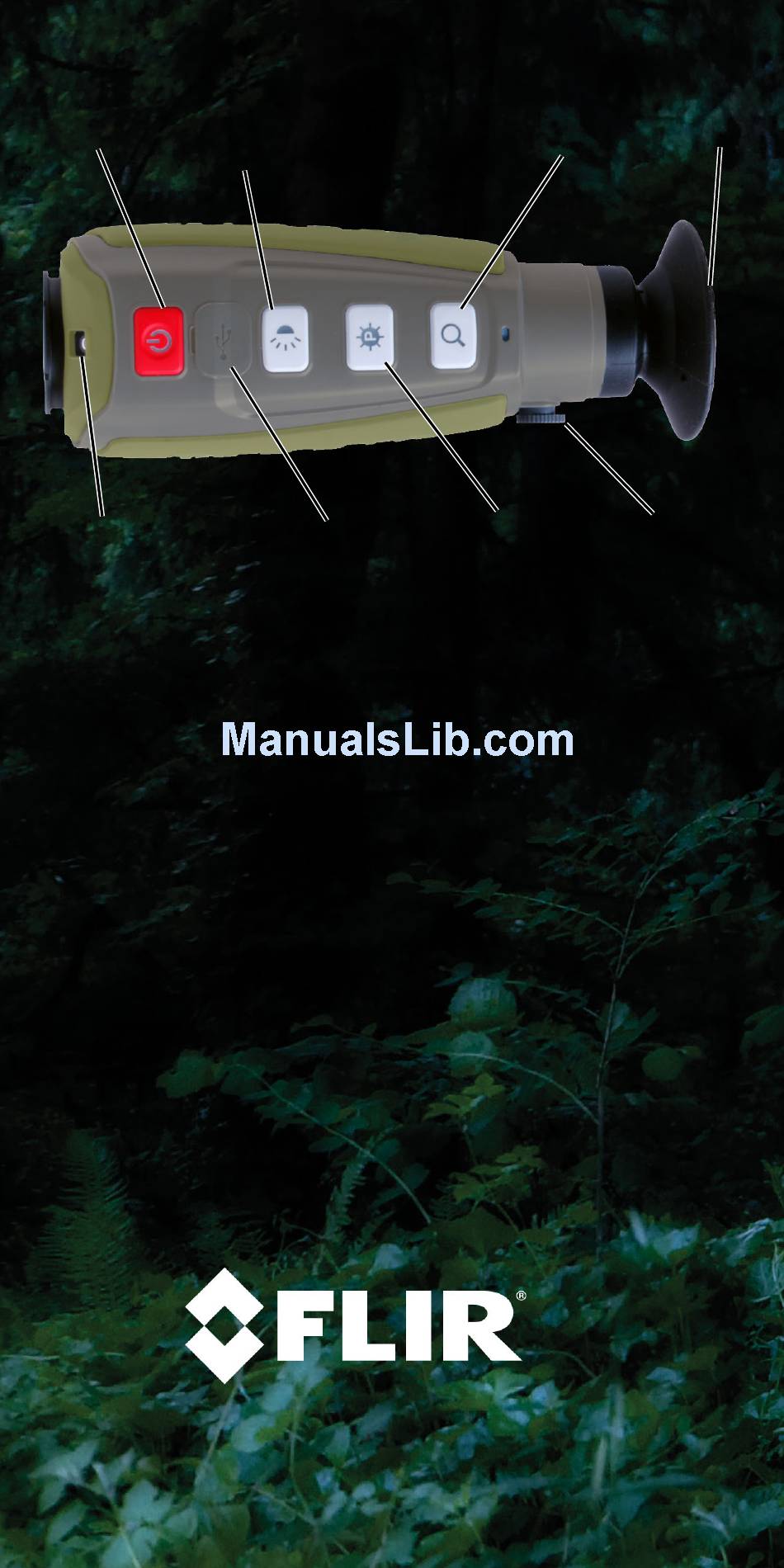

Display Brightness/
