6 System Specifications

6.1

Mechanical Specifications

The Bitsy Plus is 3.0 inches by 5.0 inches in size. This section describes the component
dimensions and mounting of the board. Detailed drawings are available on the support forums
(section 2.4), and 3D models are available from ADS in electronic format for production
customers.
6.1.1

Mechanical Drawing

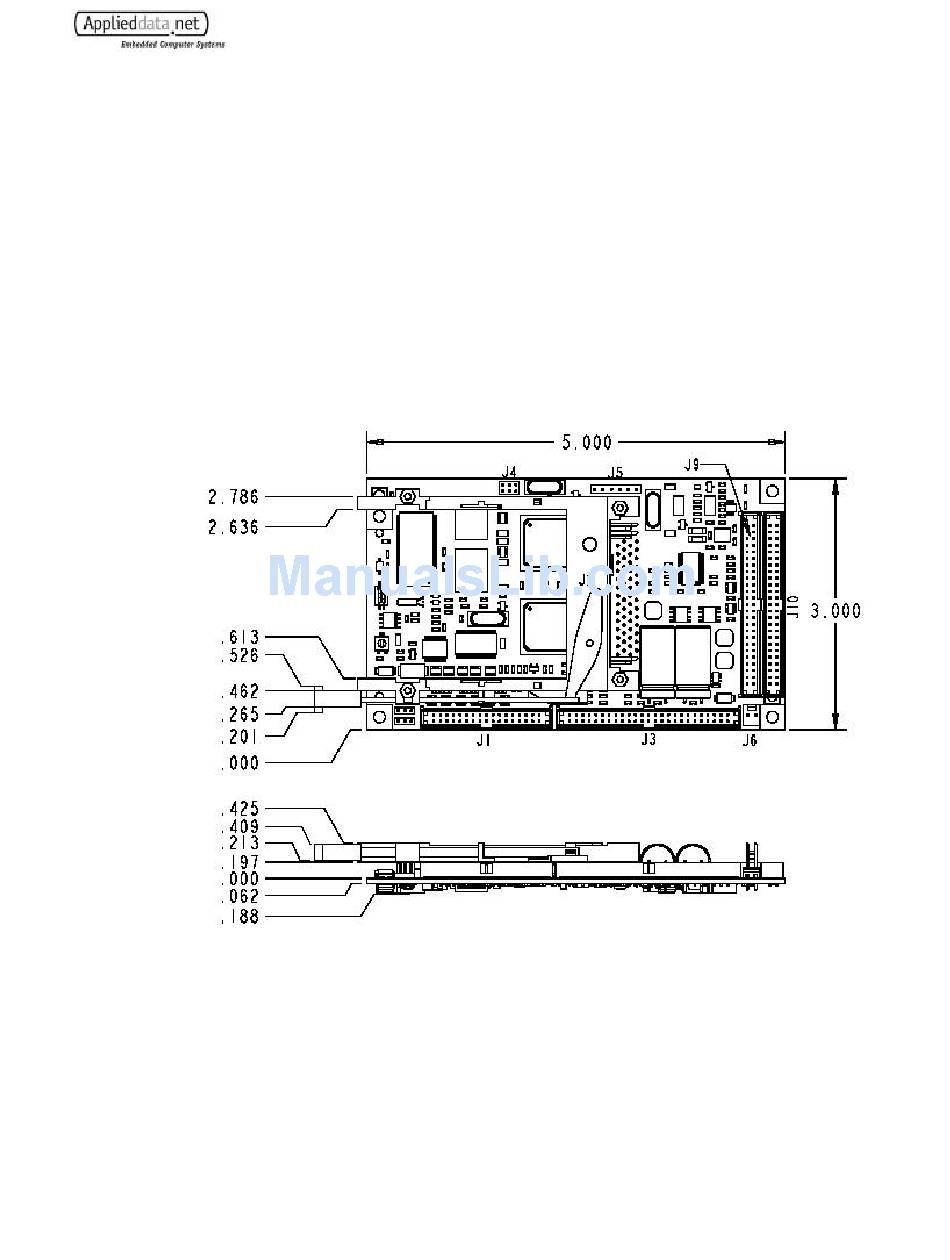

The following mechanical drawing of the Bitsy Plus specifies the dimensions of the Bitsy Plus, as
well as locations of key components on the board. The PCMCIA ejector is integrated into the
design and is not removable. All dimensions are in inches. This image is an excerpt from the full
mechanical drawings, ADS document number 630114-1000A.
6.1.2

Mounting Holes

Four holes are provided, one on each corner, for mounting. The diameter of the holes is 0.138-in.
Mounting holes are plated through and connected to the Bitsy Plus ground plane.
For reliable ground connections, use locking washers (star or split) when securing a Bitsy Plus in
an enclosure. Make sure that washers do not extend beyond the limits of the pads provided.
ADS document # 110114-1001A
Page 43
