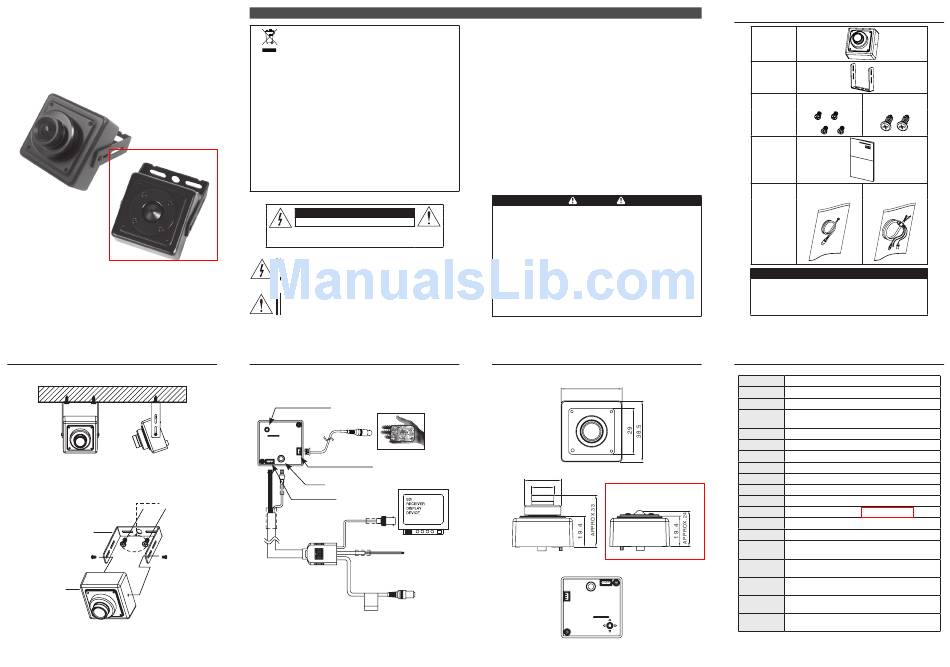

KT&C KPC-HD38M Operation Manuals

M 1 4 3- HD3 8 M- 0 0 2
HDcctv

Digital Video Camera

OP ER AT IO N MANU AL
Thank you for choosing our high quality camera. Before attempting
to connect or operate, please read and follow these instructions.
MOUNTING POSITION
Tapping Screw:
ø 3 x 8(2ea)
❷
Mounting
Bracket
Machine Screw:
❶
❶
M2 x 2.5(4ea)
Camera
CAUTION !
Please start installing
in the order shown.
CA UTI ON S

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems)
This marking shown on the product or its literature, indicate that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes
purchased this product, or their local government office, for details
of where and how they can take item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract.
Household users should contact either the retailer where they for
disposal.
C A U T IO N
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER(OR BACK). NO USER.
SERVICING TO QUALIFED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient mangnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance(servicing) instruction in
the literature accompanying the appliance.

CONNECTION

OSD Control Joystick
Handheld
Monitor
Service Video Connector
HD-SDI
Power / RS485
HD-SDI IN
RS485
Power Jack
(DC12V)
This device complies with Part 15 of the FCCRules. Operation is
subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note -
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense."
WARNING -
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution -
Any changes or modifications in construction of this devices which are not
expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
CAU TIO N
1. A regulated DC12V 300mA power supply is recommended for use
with this camera for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will
be out of subject.
2. It is recommended that the camera is used with a monitor that has a
CCTV quality 75 video impedance level. If your monitor is switched to
high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the
internal componets. Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reflective
light, which may cause smear on the picture and possible damage to
the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7.The apparatus must be connected to a mains socket-outlet with a
protective earthing connection.
DIMENSIONS
Unit: mm
38.5
ø 23
ø 14
EQUIPMENT AND ACCESSORIES
C a me ra
Mo u n ti n g
Br a ck e t
Mac hin e S cr ew Tap ping S c rew
M2x 2. 5(4ea) ø3 x 8(2ea)
Sc re w
O p e ra t i o n
Ma n u a l
S erv ic e V ide o
DI Y C able
Outp ut Tes t C able
C a b le
CA UTI O N
• When you connect Service Video Output
Cable WDR function does not work.
• Service Video Output looks the angle of
view narrower than HD-SDI Output.

SPECIFICATION

Image Device 1/3" 2.1 Mega Pixel SONY CMOS
Pixel Size 2.8um(H) x 2.8um(V)
Effective Pixels 1984(H) x 1105(V)
1/30(25), 1/60(50), 1/120(100), 1/250, 1/700, 1/1K,
Manual Shutter
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K
Sense-up x 2, x 3, x4
AGC 0dB ~ 23dB
White Balance AUTO / Manual / PUSH LOCK
Sensitivity 0.1 Lux
S/N Ratio More than 50dB
Video Output HD-SDI / CVBS
Day & Night Digital D&N (AUTO / COLOR / BW)
LENS Board Lens, Pinnole Lens
Dimension 38.5mm(H) x 38.5mm(V)
Weight Approx. 80g
Motion Detection, 3DNR, Mirror(H,V,H/V),
ETC.
Digital Zoom, BLC, WDR, OSD(JOYSTICK)
Power
DC12V[±10%], MAX 160mA
Consumption
Operating
14˚F~122˚F (-10˚C~+50˚C)
Temperature
Storage
-4˚F~140˚F (-20˚C~+60˚C)
Temperature
External
RS-485
Control
Specifications and designs are subject to change for
improving the functionality of this product without notice.
