HT Instruments QUICKLAN 6055 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
User manual
 Copyright HT ITALIA 2016
Release EN 3.00 - 19/09/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICKLAN 6055 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HT Instruments QUICKLAN 6055

Summary of Contents for HT Instruments QUICKLAN 6055

  • Page 1 ENGLISH User manual  Copyright HT ITALIA 2016 Release EN 3.00 - 19/09/2017...

  • Page 2: Table Of Contents

    QUICKLAN 6055 Table of contents:   SAFETY PRECAUTIONS AND PROCEDURES ............2   1.1.  Preliminary instruction ......................2  1.2.  During use ..........................2  1.3.  After use ..........................2    GENERAL DESCRIPTION ................... 3     PREPARATION FOR USE ................... 3  ...

  • Page 3: Safety Precautions And Procedures

    QUICKLAN 6055 1. SAFETY PRECAUTIONS AND PROCEDURES CAUTION For your own safety as well as that of the apparatus you are recommended to follow the procedures described in this instruction manual and carefully read all the notes preceded by the symbol .

  • Page 4: General Description

    QUICKLAN 6055 2. GENERAL DESCRIPTION The instrument allows the followed functions:  Wire mapping test on LAN cables with RJ45 connector  Test on UTP and STP cables  Up to 6 error conditions identified  Recognition of up to 8 remote units ...

  • Page 5: Nomenclature

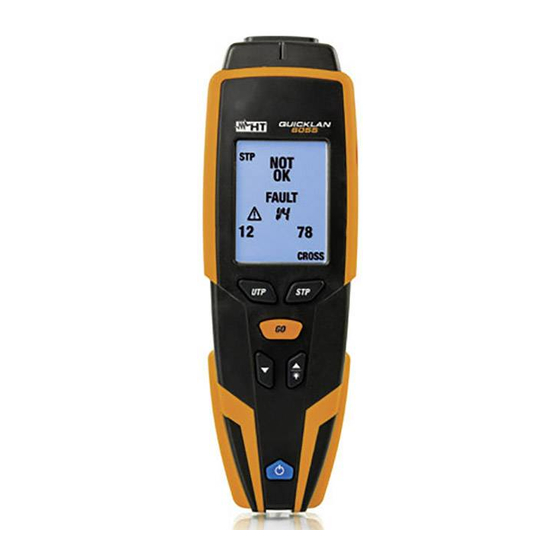

    QUICKLAN 6055 4. NOMENCLATURE 4.1. INSTRUMENT DESCRIPTION CAPTION: 1. RJ45 input terminal 2. LCD display 3. UTP key 4. STP key 5. GO key 6.  key 7. / 8. ON/OFF key 9. Remote units #1 ~ #2 Fig. 1: Instrument description 4.2.

  • Page 6: Function Key Description

    QUICKLAN 6055 4.3. FUNCTION KEY DESCRIPTION 4.3.1. ON/OFF key By pushing ON/OFF key permits to turn on the instrument. For an instant all display segments light up, then the firmware release appears on the top right side. When “on” is displayed the instrument is ready to start (see Fig.

  • Page 7: Operating Instructions

    QUICKLAN 6055 5. OPERATING INSTRUCTIONS 5.1. CABLING TEST VERIFY The wire mapping of RJ45 LAN cables is tested in accordance with its defined cabling layout. To test a cable perform the below steps: 1. Switch on the instrument by pushing the ON/OFF key 2.

  • Page 8: Cabling Errors

    QUICKLAN 6055 6. If cabling is not correct, a screen like this is displayed. Referring to this example:  “NOT OK” indication and caution symbol means that the test have given some errors  “FAULT 1/3” means that the detected errors are 3, of which the first one is currently displayed.
  • Page 9 QUICKLAN 6055 Two conductors are SHORTED CABLES short circuit between each other TRANSPOSED pairs (CROSSED) PAIRS crossed Generic cabling error, such as for example MISWIRE conductors belonging to different pairs are exchanged correspondence SPLIT PAIRS hold, but physically the conductors of two...

  • Page 10: Split Pairs Explanation Note

    QUICKLAN 6055 5.3. SPLIT PAIRS EXPLANATION NOTE A LAN cable contains 8 conductors, twisted two by two thus forming 4 pairs: 1-2, 3-6, 4-5, 7-8. The error “SPLIT PAIRS” consists in the exchange of two conductors belonging to different pairs. The pin to pin correspondence seems intact, but physically the conductors of two couples are split.

  • Page 11: Maintenance

    QUICKLAN 6055 6. MAINTENANCE 6.1. GENERAL INFORMATIONS 1. Whether in use or in storage, please do not exceed the specification requirements to avoid possible damages or dangers 2. Do not place this meter at high temperatures or humidity or expose it to direct sunlight 3.

  • Page 12: Technical Specifications

    QUICKLAN 6055 7. TECHNICAL SPECIFICATIONS 7.1. TECHNICAL SPECIFICATIONS Connectors LAN input connectors RJ45 Cables which can be tested Cable type UTP, STP Category CAT3, 5, 5E, 6, 6A, 7 Reference guideline: TIA/EIA 568B Max height of use: 2000m (6562ft) Length up to 200m (656ft) (1) To perform the test “SPLIT PAIR”...

  • Page 13: Service

    QUICKLAN 6055 8. SERVICE 8.1. WARRANTY CONDITIONS This instrument is guaranteed for one year against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product. Should you need for any reason to return back the instrument for repair or replacement take prior agreements with the local distributor from whom you bought it.
