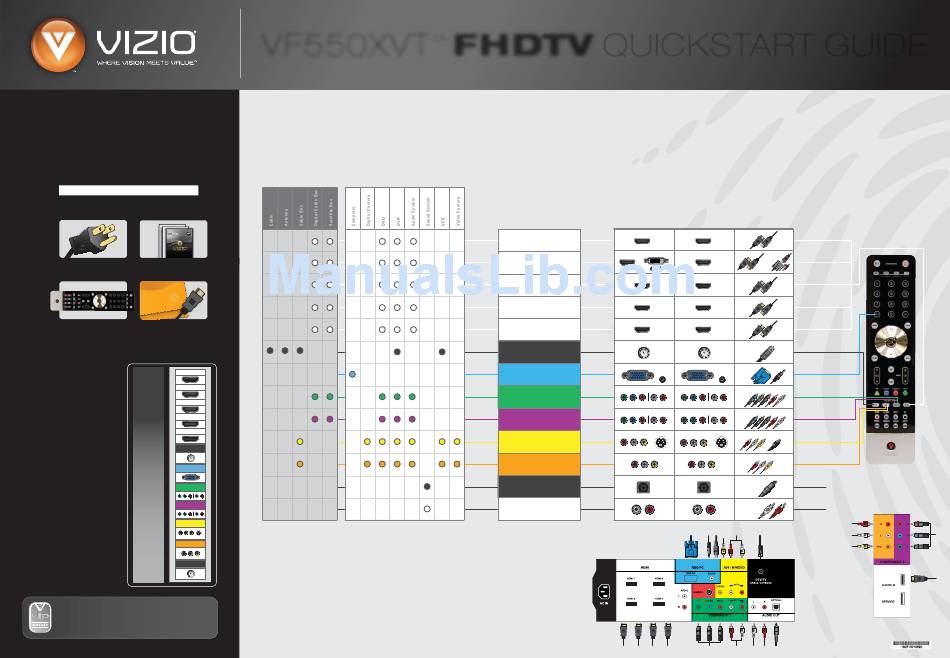

Vizio VF550XVT Quick Start Manual

Before You Begin
• Verify all of the contents of your accessory package
• Review safety guidelines in Owner's Manual
• Place your High Definition TV so that the rear connectors are accessible
• Install AA batteries into the VIZIO Remote Control
• Write down your VF550XVT 1A Serial Number (located on the back)
___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
Contents:
Power Cord
VIZIO HDTV User Manual, VIP Brochure
and Registration Card.
Remote Control Screen Cloth &
HDMI Cable
Includes 2 AA Batteries
The Best Connection
For the best quality picture,
we recommend using HDMI, HDMI 1
BEST
DTV, RGB or Component
inputs when possible. These HDMI 2
are the only inputs capable
of high definition (HD).
HDMI 3
Using these inputs does not
guarantee high definition
HDMI 4
unless a high definition
source is connected.
HDMI 5
However, not all equipment
is capable of these
connections. TV, AV and DTV +
S-Video are not capable of
HD signals.
BETTER
RGB PC
Both DTV and TV share the
same port. The television will
automatically register which
+
COMPONENT 1
input type is connected.
COMPONENT 2
AV 1/ S-VIDEO
GOOD
AV 2
TV +
VIZIO provides installation services, cables & wall mounts
(see details for Optional Components on back).
Visit www.VIZIO.com or call 1-888-849-4623 to order today.
VF550XVT FHDTV QUICKSTART GUIDE
1A
Four Easy Steps
Simply follow our color-coded Step Charts and you're done.
1) Choose items to connect to your VIZIO HDTV
• Determine which type of Signal Source and any Additional Equipment you wish
to connect to your VIZIO HDTV.
• The colored dots under each Signal Source and Additional Equipment indicate
which type of connections you may use to connect to your VIZIO HDTV.
Signal Sources Additional Equipment
3 WAYS TO GET HDTV
In need of a particular cable to
make the connection you want?
1) Off-Air antenna (using the DTV antenna input).
VIZIO-certified cables are available at
To see if you are able to receive HD signals www.VIZIO.com (view back for more details).
off-air and for help choosing the right antenna,
visit www.antennaweb.org.
2) Cable - Subscribe to HD programming through
your local cable company (HD cable box required).
3) Satellite - Subscribe to HD programming
through Direct TV or Dish Network (HD satellite
receiver required).
For additional help with connecting components to your For more information, see your Owner's Manual,
VIZIO TV, visit http://ceaconnectionsguide.com for an Chapter 2, CONNECTING EQUIPMENT.
interactive guide
2) Choose equipment 3) Select cables and
connection methods make connections
• Using the colored dots from Step One, • Once you have determined the connection methods from Step Two,
follow the row across to Step Two to match follow the row to Step Three to determine what kind of cables you
up the colored dots to the same colored need and what the connections look like on your equipment.
connection method.
• Following the color-coded system, use the appropriate cables and
• Choose ONLY one method for each piece connect your Signal Source and Additional Equipment to the color-coded
of equipment. inputs on your VIZIO HDTV. (Refer to Connection Map at bottom of page.)
• Once connected, turn on your VIZIO HDTV and all your equipment.
My Equipment Has
Connection Methods
HDMI
HDMI 1
TYPE: Digital High Definition
QUALITY: Best Digital
HDMI
DVI
HDMI 2
or
TYPE: Digital High Definition +
QUALITY: Best Digital
HDMI
HDMI 3
TYPE: Digital High Definition
QUALITY: Best Digital
HDMI 4 HDMI
TYPE: Digital High Definition
QUALITY: Best Digital
HDMI 5 HDMI
TYPE: Digital High Definition
QUALITY: Best Digital
DTV / TV
TYPE: Cable/Antenna
QUALITY: Best Digital/Good Analog
RGB PC
Optional
Audio
TYPE: RGB Analog
QUALITY: Best Analog
COMPONENT 1
TYPE: Component Analog
QUALITY: Better Analog
COMPONENT 2
TYPE: Component Analog
QUALITY: Better Analog
AV1/S-VIDEO
TYPE: Analog
QUALITY: Good Analog
AV2
TYPE: Analog
QUALITY: Good Analog
OPTICAL
TYPE: Digital Audio Out
QUALITY: Best Digital
AUDIO OUT
TYPE: Analog Audio Out
QUALITY: Good Analog
BACK OF TV
4) Use your VIZIO HDTV
Follow the programming instructions on the other side of
this guide.
• If you are using the DTV/TV input, turn over this guide
and follow Procedure 1.
• If you are using an input other than DTV/TV, turn over
this guide and follow Procedure 2.
My VIZIO HDTV Has Cable Needed
HDMI*
HDMI 1
HDMI* HDMI* to DVI
& RCA Audio HDMI 2
or
HDMI*
HDMI 3
HDMI*
HDMI 4
HDMI*
HDMI 5
Coaxial (RF) Cable*
DTV / TV
VGA Cable
Optional RGB PC
& stereo
Audio
mini-jack
Component & Stereo RCA Cable*
COMPONENT 1
Component & Stereo RCA Cable*
COMPONENT 2
A/V RCA Cable & S-Video Cable*
AV1/S-VIDEO
A/V RCA Cable*
AV2
Optical Audio Cable
OPTICAL
Stereo RCA Cable
AUDIO OUT
*Please see "For Your Information" on reverse side
©2008 VIZIO Inc.
Connection Reference
SIDE OF TV
