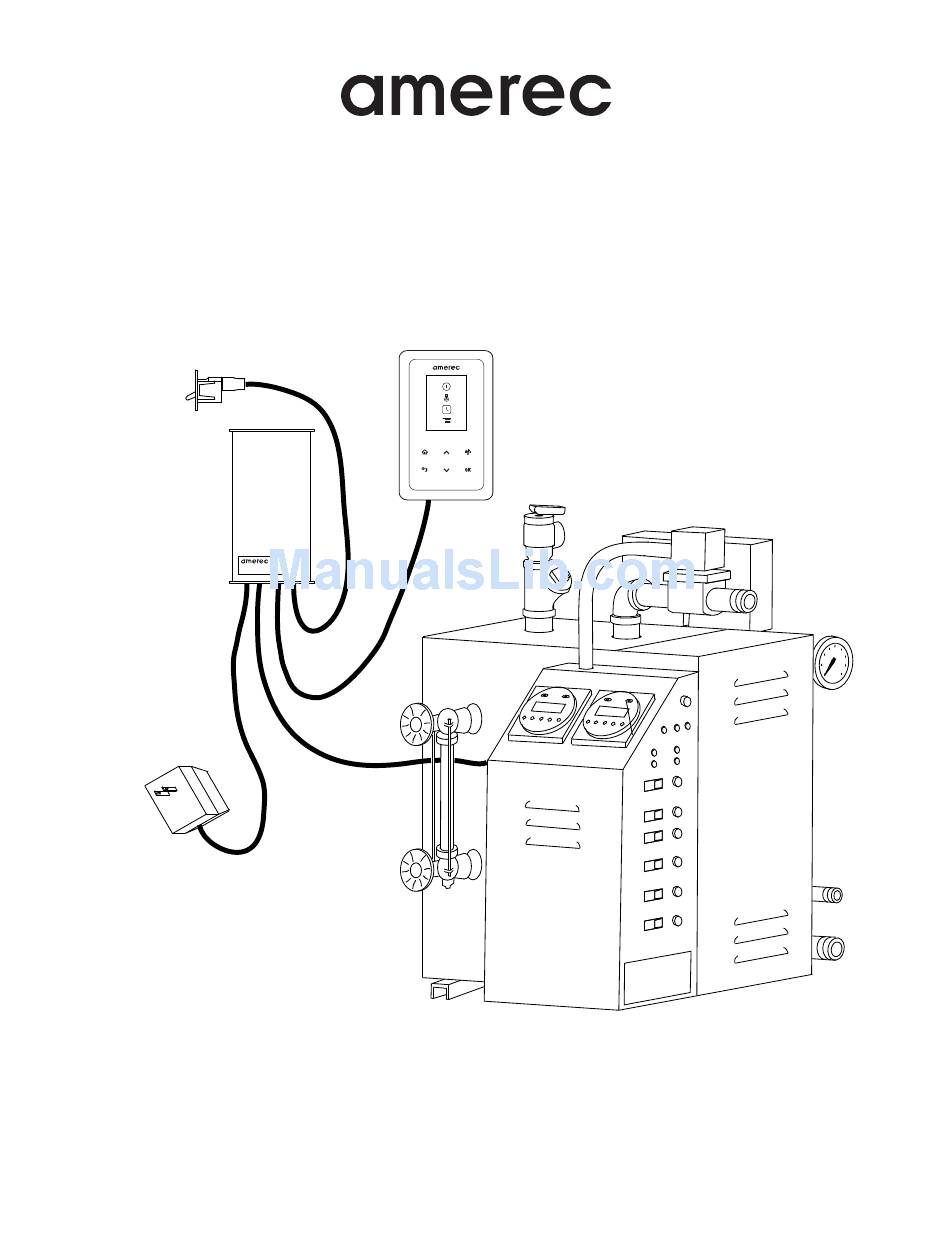

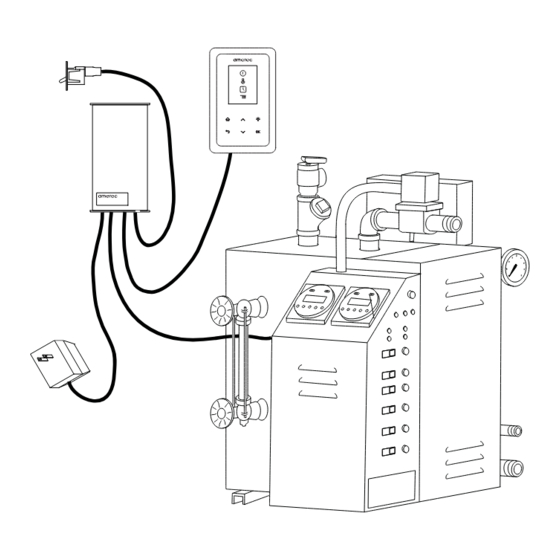

- Page 1 INSTALLATION INSTRUCTIONS FOR THE AI SERIES STEAM BOILER WITH T100-B TOUCH CONTROL , AI & AI MODELS , AI , AI & AI MODELS 4211-1951 04/19/19...
- Page 2 AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS 4211-1951 04/19/18 Page 2...
-
Page 3: Important Safety Instructions
AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS. WARNING - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING - To reduce the risk of injury: a. - Page 4 There are no user serviceable parts in this equipment. Electrical grounding is required on all Amerec steam bath boilers. The boiler is designed for hookup with copper wire only, 75°C or better.
- Page 5 Be careful to use the correct values for you installation. These instructions cover using the T100 with the AI boilers. You should fi rst install the boiler per Amerec’s 4211-1631 boiler installation instructions and you should have Amerec’s 4209-53 T100 owner’s manual &...
- Page 6 The steam generator is designed to sit directly on a hard level surface. The mounting location must be suitable to safely support over 125 lb.s (57 kg) for models AI12-AI24 and over 150lb.s (68 kg) for AI30-AI48. The boiler must be mounted upright and level and prevented from mov- ing.
-
Page 7: Room Controls
AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS ELECTRICAL ROOM CONTROLS T100 Each steam valve outlet is to be used for a single steam room. Each AT TEMP SENSOR room requires one temperature sensor mounted in the room and one T100 room control mounted inside or outside the steam room. - Page 8 (Option) Amerec’s Chormatherapy kit (contact Support for more information). Connect the interface in line with one of the light’s power leads as shown at right and connect those leads to the LOW VOLTAGE RM LIGHT terminal block by pressing an orange tab, inserting the stripped end of a conductor, then releasing the tab.
-
Page 9: Boiler Operation
AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS BOILER CIRCUIT BOARD SET-UP The T100 will control the steam bath through the boiler’s T’STAT terminal TEMP block. To ensure the T100 will function correctly, make sure the bath On/Off SENSOR control switch on the boiler’s circuit board is set with all positions down as shown at right. - Page 10 AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS The T100 is the thermostat, controlling the steam bath temperature. Refer to Amerec doc. 4209-53 for the detailed T100 operating instructions. The T100 lets the user start and stop the steam bath, adjusts the bath temperature, and controls how long the bath runs before automatically stopping.
- Page 11 AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS APPENDIX 2: T100 ROUGH-IN Step 1: Drill four 3/4” holes, level and plumb as shown below Always confi rm pattern as printed is to scale before using as a template. Some printers will change pattern size during printing. 2 5/8”...
- Page 12 AI SERIES STEAM BOILER WITH T100 CONTROL INSTALLATION INSTRUCTIONS APPENDIX 2: T100 ROUGH-IN (continued) Step 2: Cut straight edges from hole to hole as shown. Note: dashed line shows outside edge of T100 control for reference Always confi rm pattern as printed is to scale before using as a template. Some printers will change pattern size during printing.
