Boscam RD2 Operation Manuals

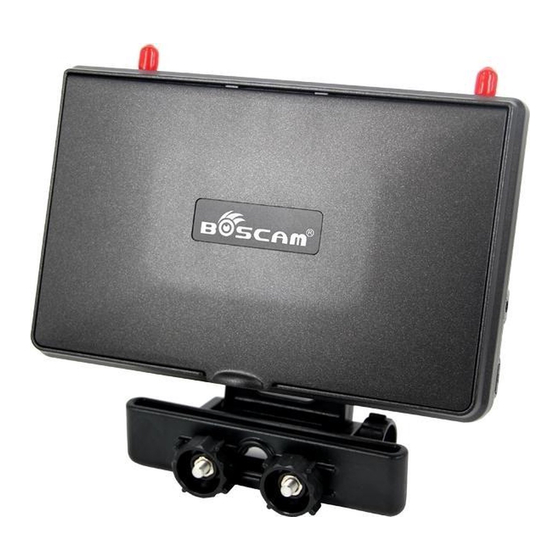

Dual Receiver Monitor

Operation manual

Thank you for purchasing this product. Please read this manual carefully before use.

I. Graphic Instruction

II. Packing Contents

III. Graphic Installation
IV. Operation

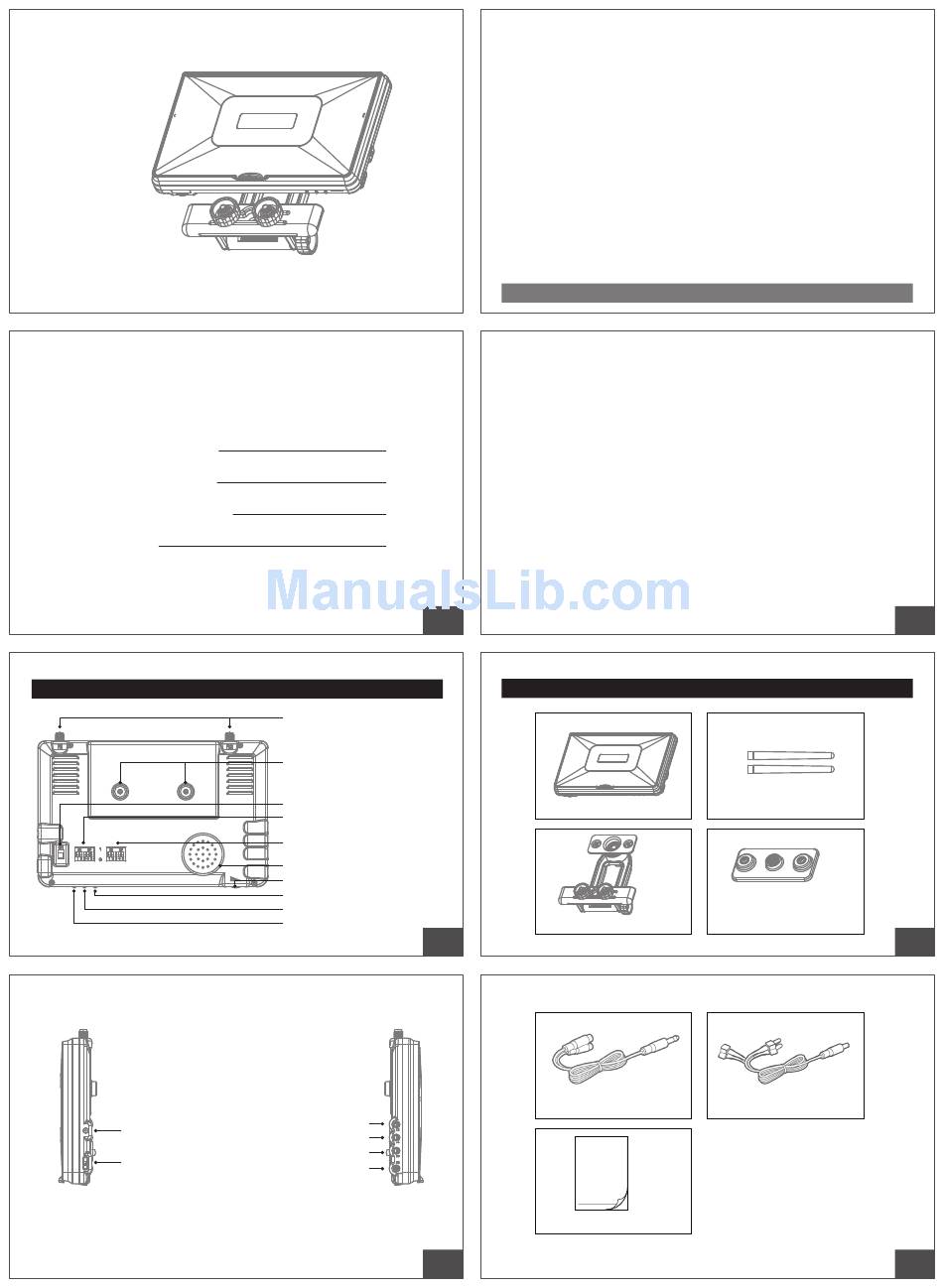

、Instructions diagram
I
Port of Charging/
Power Supply
Video Switch/
Automatic searching
Contents
RP-SMA
Connection Point of Holder
Power On/Off
Frequency Adjustment Switch
of R1 Receiver
Frequency Adjustment Switch
of R2 Receiver
Loudspeaker
Volume Adjustment
Work LED Indicator of R2 Receiver
Work LED Indicator of R1 Receiver
Charging Indicator
Video Output (Automatically)
Video Output of R1 Receiver
Video Output of R2 Receiver
Video Input
RD2
RP-SMA: Connect directional or omni-directional antennas
Connection Point of Holder: Connect Remote Control Holder or Tripod Connector
Power Switch: Power on / off
Frequency Adjustment Switch of R1 Receiver: Adjust channel of R1 receiver
Frequency Adjustment Switch of R2 receiver: Adjust channel of R2 receiver
Loudspeaker: Extroverted loudspeaker
Volume Adjustment Knob: Adjust volume of loudspeaker
02
Work LED Indicator of R2 Receiver: Indicator light when R2 receiver works
04 Work LED Indicator of R1 Receiver: Indicator light when R1 receiver works
Power Indicator: Red light on when charging, Green light on when full power.
06 Port of Charging/Power Supply: 12V Charging/Power supply
Video Switch: different channels on two receivers, video can be switched
08 Video Output: select video output automatically
Video Output of R1 Receiver: R1 video output
Video Output of R2 Receiver: R2 video output
Video Input: input the external video, the receiver no work
01
II、Package
02
03
Mainframe
Remote Control Holder
AV Out /AV In Cable
Manual
V1.0
04
Antenna
Tripod Connector
05
Power Adapter Cable
06
