NETGEAR Nighthawk X4S D7800 Quick Start Manual

Quick Start

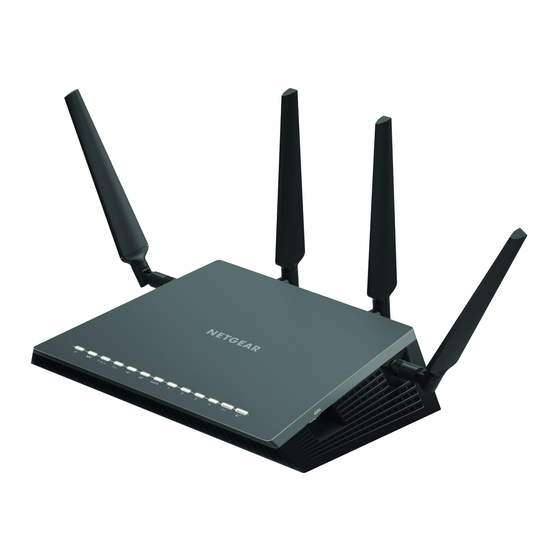

Nighthawk X4S
AC2600 WiFi VDSL/ADSL Modem Router
Model D7800

Package Contents

Antennas (4)
Ethernet cable Phone cable
DSL filter
(varies by region)

1. Attach the Antennas

Remove the antenna caps. Attach the antennas on the threaded antenna posts
and position the antennas vertically.
2. Plug In Your Modem Router
Modem router
Power adapter
(varies by region)
Connect the DSL port on the modem router to a DSL outlet.
If your package came with a DSL microfilter, install the DSL microfilter and
connect it to the DSL port on the modem router. You can also connect a phone
Note: In some
to the DSL microfilter.
regions, a resource
CD is included. Connect the power adapter to the modem router and press the Power button.
The Power LED
service, the DSL LED

3. Connect to the Internet

You can either use an Ethernet cable or connect with WiFi to the modem router.
To connect with WiFi:
Make sure that the WiFi LED
network name and password are on the label on the modem router.
Open the WiFi connection manager on your computer or WiFi device,
find the modem router's WiFi network name, and use the modem router's
password to connect.
Launch a web browser. If the NETGEAR installation assistant does not display,
visit www.routerlogin.net. If a login window displays, enter admin for the
user name and password for the password.
Follow the NETGEAR installation assistant steps to connect to the Internet.
If the modem router does not connect to the Internet, see the user manual,
which is available online at
community.netgear.com
lights white. If the modem router is connected to a DSL
lights white.
on the modem router is lit. The WiFi
support.netgear.com/product/D7800 or visit
for help.
