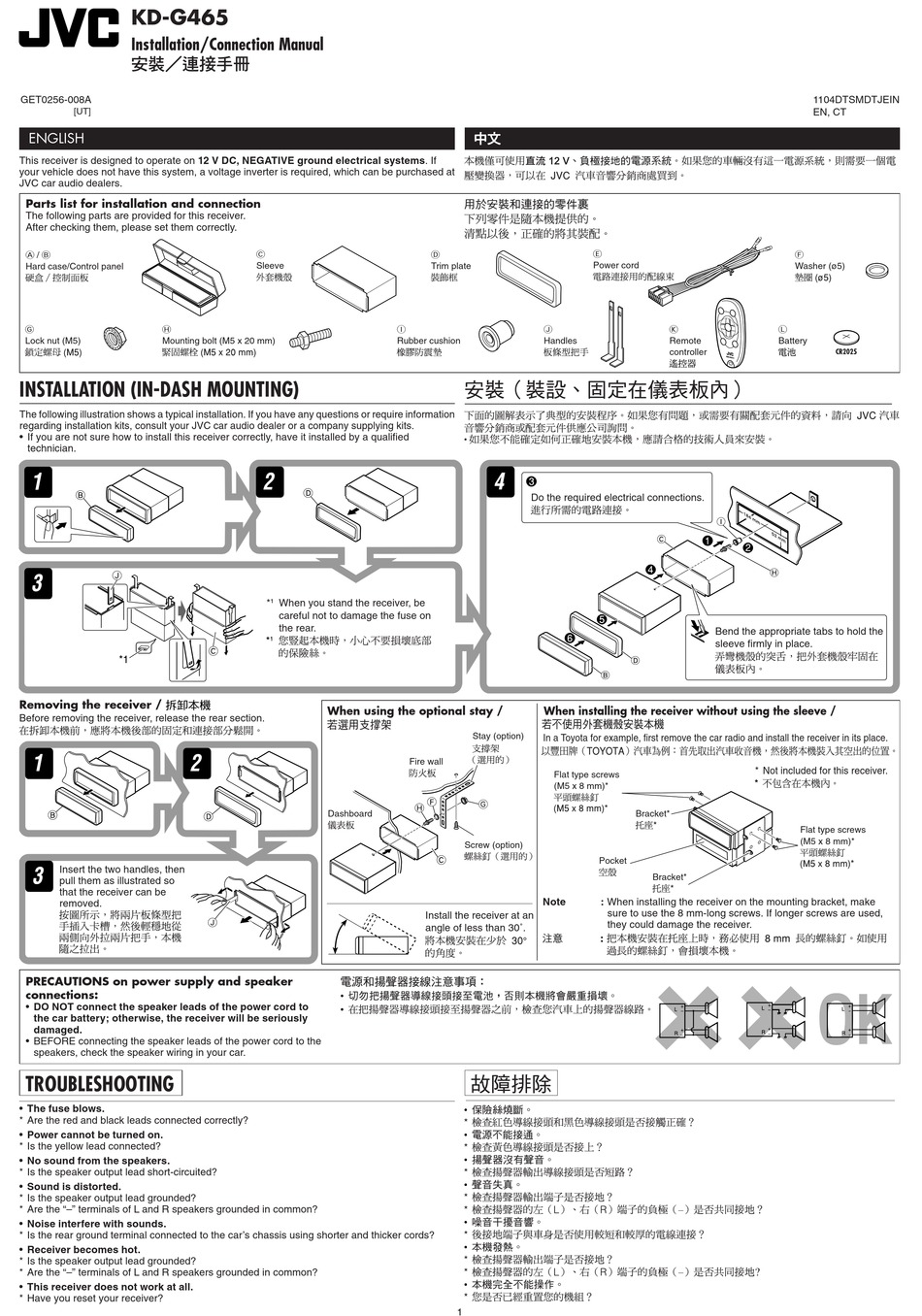

JVC KD-G465 Installation & Connection Manual

KD-G465
Installation/Connection Manual
GET0256-008A
[UT]
ENGLISH
This receiver is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If
your vehicle does not have this system, a voltage inverter is required, which can be purchased at
JVC car audio dealers.
Parts list for installation and connection
The following parts are provided for this receiver.
After checking them, please set them correctly.
A / B
Hard case/Control panel
G H
Lock nut (M5) Mounting bolt (M5 x 20 mm)
INSTALLATION (IN-DASH MOUNTING)
The following illustration shows a typical installation. If you have any questions or require information
regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
• If you are not sure how to install this receiver correctly, have it installed by a qualified
technician.
Removing the receiver /
Before removing the receiver, release the rear section.
Insert the two handles, then
pull them as illustrated so
that the receiver can be
removed.
PRECAUTIONS on power supply and speaker
connections:
• DO NOT connect the speaker leads of the power cord to
the car battery; otherwise, the receiver will be seriously
damaged.
• BEFORE connecting the speaker leads of the power cord to the
speakers, check the speaker wiring in your car.

TROUBLESHOOTING

• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car's chassis using shorter and thicker cords?
• Receiver becomes hot.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in common?
• This receiver does not work at all.
* Have you reset your receiver?
C D
Sleeve Trim plate
I
Rubber cushion
* When you stand the receiver, be
1
careful not to damage the fuse on
the rear.
When using the optional stay /
Fire wall
Dashboard
Install the receiver at an
angle of less than 30˚.
E
Power cord
J
Handles
Do the required electrical connections.
When installing the receiver without using the sleeve /
Stay (option)
In a Toyota for example, first remove the car radio and install the receiver in its place.
Flat type screws
(M5 x 8 mm)*
Screw (option)
Pocket
Note : When installing the receiver on the mounting bracket, make
sure to use the 8 mm-long screws. If longer screws are used,
they could damage the receiver.
1
F
Washer (ø5)
K L
Remote Battery
controller
Bend the appropriate tabs to hold the
sleeve firmly in place.
* Not included for this receiver.
Bracket*
Flat type screws
(M5 x 8 mm)*
Bracket*
1104DTSMDTJEIN
EN, CT
