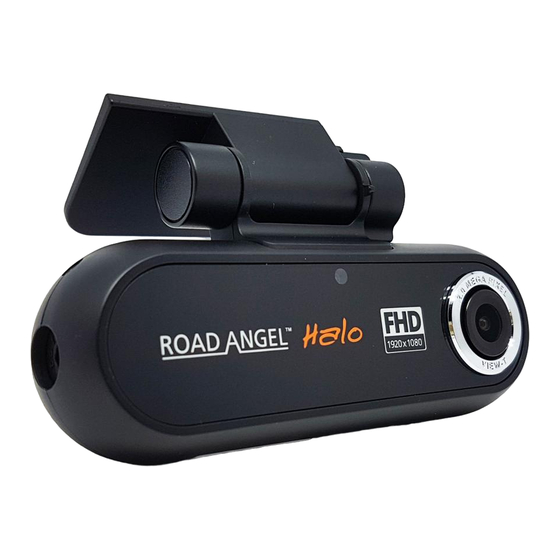

Installation Example and Guide
Author: Road Angel Group
Date: May 2016
Version: 1.00
Version 1.00
Page 1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the Halo and is the answer not in the manual?

Questions and answers

Mike Austin
January 29, 2025

I purchased a road angel halo go, and also the hard wire kit, which had a red lead [switch} lead, A yellow lead {permanent} live lead, Black groung,Unfortunately the next morning the battery on the vehicle was flat, have they supplied me with the correct lead, ?, Look forward to your reply. Mike.

1 comments:
Mr. Anderson
February 10, 2025

Yes, the Road Angel Halo hardwire lead includes the necessary wiring to prevent battery drain. It has a white "B+" cable for a permanent 12V connection, a red "ACC" cable for an ignition-switched 12V source, and a black "GND" cable for grounding. Proper installation ensures the device only draws power when needed, minimizing battery drain. However, some users reported concerns about battery drainage, suggesting that real-world performance may vary.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Road Angel Halo

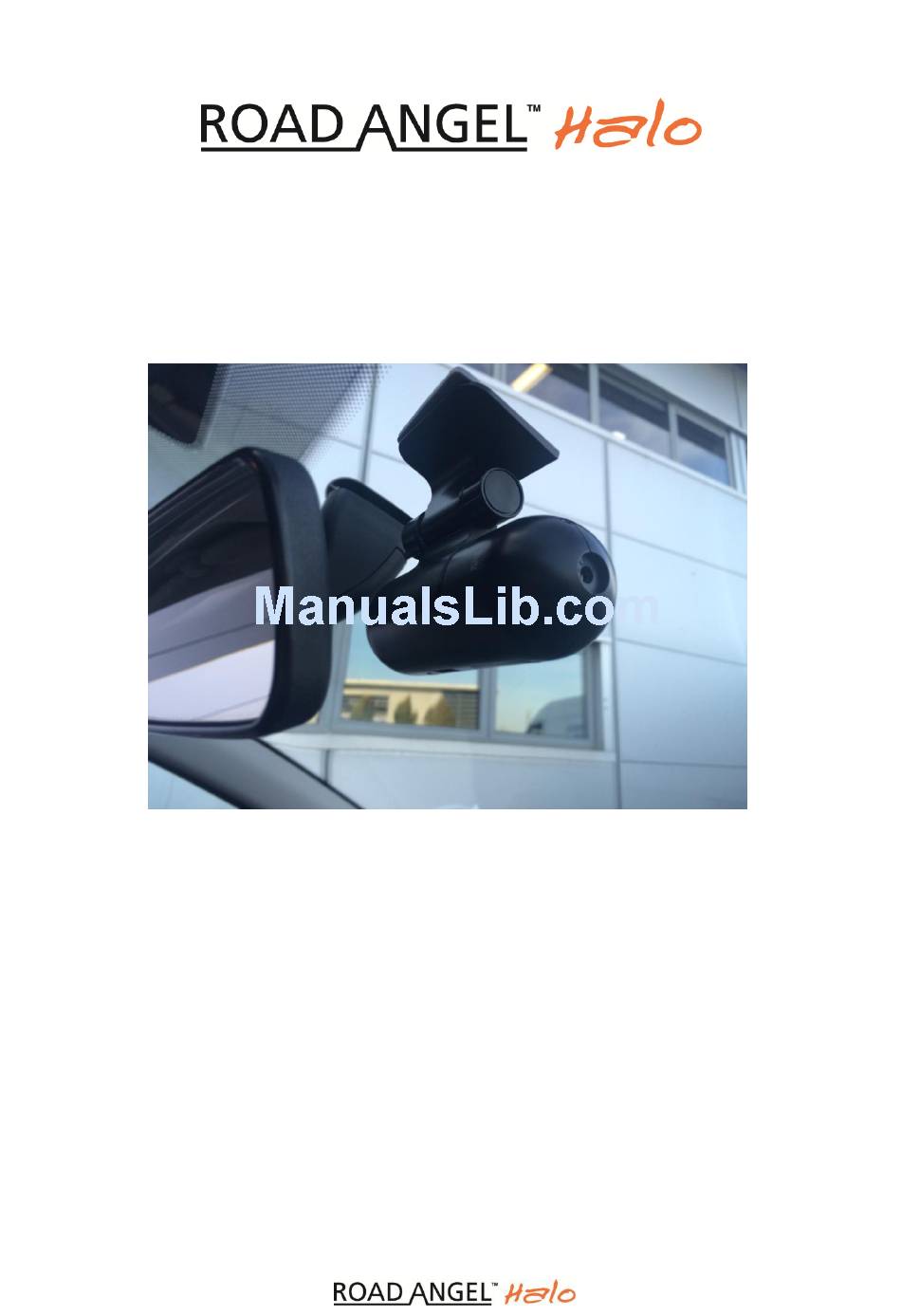

  • Page 1 Installation Example and Guide Author: Road Angel Group Date: May 2016 Version: 1.00 Version 1.00 Page 1 of 12...
  • Page 2: Table Of Contents

    Contents CONTENTS ........................2 INTRODUCTION ......................3 SCOPE ..........................3 ITEMS REQUIRED FOR HARDWIRE INSTALLATION ............3 LOCATION ........................4 STEP-BY-STEP INSTRUCTIONS..................4 CABLING AND HARDWIRE INSTALLATION ..............11 CABLE & CONNECTOR STRESS ..................12 Version 1.00 Page 2 of 12...
  • Page 3: Introduction

    Introduction This document provides a method for a typical installation of the Road Angel Halo device. Using the recommendations within this document will help improve installations, provide a more reliable product and promote a better customer experience. We recommend that you review the Cabling and Hardwire Installation and Cable & Connector Stress prior to any installation (page 11 &...
  • Page 4: Location

    Step-by-Step Instructions In most cases it is practical to begin the installation of the Halo device by fitting the rear facing camera first, allowing any excess cabling to be concealed within the dashboard bulk space of the vehicle. This allows a professional finish and provides excess cable towards the front of the vehicle should there be a need to refit/modify the cable in the future.
  • Page 5 Step 2: Rear Camera Installation: When installing the rear camera, it is recommended that this item is fitted at the upmost point of the rear windscreen, with the lens directed towards the back of the vehicle/road. Before fitting the rear camera, take note of the white arrow symbol located at the back of the camera. This white arrow should be pointing upwards, with the cable protruding from the left side of the camera.
  • Page 6 Once the extension cable has been fitted and has reached the fuse box, connect the extension cable to the Halo front camera, using the port located at the top left hand side of the device. Once this is connected, connect the power lead (hard wire lead – supplied separately) to the remaining port.
  • Page 7 Step 4: Hardwire Lead/Connections: In order to correctly connect the Halo device to the vehicles electrics, it is important to pay attention to the function of each of the 3 cables present on the Halo Hardwire lead.
  • Page 8 (vehicle chassis) to verify a constant 12v. Wrap the exposed cable of the Halo “B+” wire around the exposed area of the vehicles live feed several times securing the connection. In order to further secure this connection, it is recommended that these cables are soldered together and protected with adhesive electric tape.
  • Page 9 Note: The Halo hardwire lead includes a fuse on the live connection. It is recommended to install a further inline fuse on the ‘ignition’ (ACC) lead. However, the Halo device does not rely on this ACC lead for power and this is simply ‘good practice’ and should be a decision for the installer.
  • Page 10 Verify the Halo SD card is installed in the device and start the vehicle ignition. Within 60 seconds an LED should appear at the rear of the device followed by an audible alert.
  • Page 11: Cabling And Hardwire Installation

    With the introduction of Stop/Start technology please be aware that the ignition feed and the permanent power (12V) needs to remain live even when the Stop/Start feature is engaged. The Halo hardwire lead has 1x power output (DC input to device) and 3x exposed connections for wiring into the vehicle as follows: The white cable labelled “B+”...
  • Page 12: Cable & Connector Stress

    (where applicable). This may prevent the correct operation of the device and will invalidate the warranty.  Verify that the Halo functions prior to installation. This can be achieved by connecting the DC power lead to the device and confirming the device powers up and records as expected. ...
