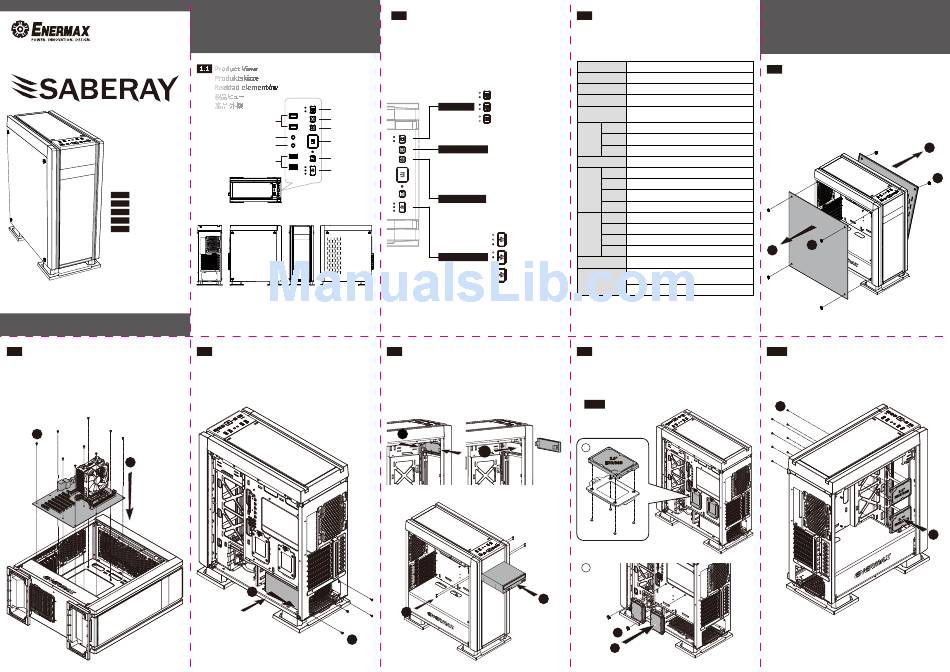

ENERMAX Saberay ECA3500 User Manual

ECA3500
User's Manual
English
Handbuch
Deutsch
Instrukcja obsługi
Polski
ユーザ マニュアル
日本語
使用手冊
繁中
©2017 ENERMAX TECHNOLOGY CORPORATION. All right reserved.
Specifications are subject to change without prior notice.
Some trademarks may be claimed as the property of others.
2.2 How to Install the Motherboard
So installieren Sie das Motherboard
Jak zamontować płytę główną
マザーボードの取り付け方法
安裝主機板
2
1
Chapter 1 :
Product Overview
•Produkteinführung •Opis produktu
• • 產品槪觀
製品の説明

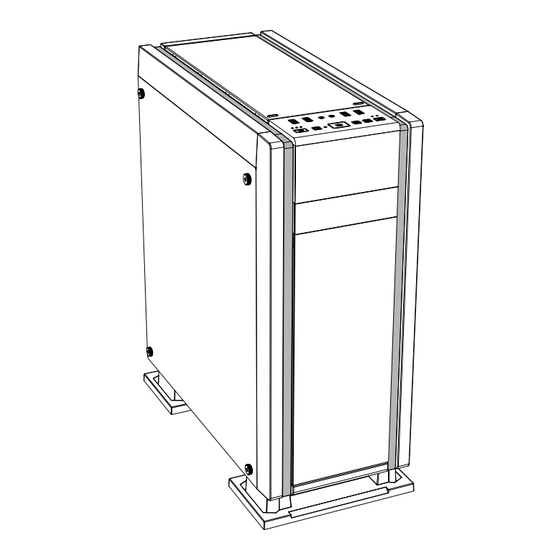

1.1 Product View
Produktskizze
Rozkład elementów
製品ビュー
產品外觀
Lumi switch
LED mode control
USB 3.0 Ports
LED color control
Microphone
Power
Headphone
Reset
USB 2.0 Ports
Fan speed control
Top
Rear Left Front
Right
2.3 How to Install Power Supply
Netzteileinbau
Jak zainstalować zasilacz komputerowy
電源取り付け方法
安裝電源供應器
1
2
1.2 IO Panel Description
I/O- Panel Beschreibung
Opis panelu połączeń
IOパネルのアクセス機能
IO面板敘述
RGB sync controlled by case
Lumi switch RGB sync controlled by M/B
LED off
1. All on
2. Dimmed
LED mode control 3. Sparkle
4. Flash
5. Vegas*
1. Auto RGB mode
2. Fixed color**
3. Blue
4. Red
LED color control
5. Green
6. Yellow
7. Purple
8. White
Silence mode
Fan speed control Balance mode
High performance mode
*Vegas mode plays All on, Sparkle and Flash automatically.
**Press mode button to fix your own color while Auto RGB mode.
***Memory Function: Selected mode will resume when system starts.
2.4 How to Install Optical Drive
Installation von optischen Laufwerken
Installation von optischen Laufwerken
光学ドライブの取り付け
光碟機安裝
1
2
3
4
1.3 Specs
Technische Daten
Dane techniczne
スペック
產品規格
Model Number ECA3500
Dimensions (Case) D478 x W223 x H566mm
Material 0.8mm SPCC
M/B Type
ATX, Micro ATX, Mini ITX
USB3.0 x 2, USB2.0 x 2, HD Audio, Fan speed control,
I/O
LED color control, LED mode control, Lumi switch
5.25" 1
Drive
3.5"
2
Bays
2.5"
6 (2 x Converted from 3.5" trays)
Expansion Slots 7
Front 3 x 120mm
Top 2 x 140 or 3 x 120mm
Fan
Slots
Rear 1 x 140 or 1 x 120mm
Side
2 x 120mm
Front
360 / 240mm radiator
Top 360 / 280 / 240mm radiator
Liquid
Cooling
Rear 140 / 120mm radiator
Side 240mm radiator
PSU Support
Standard ATX Type
Suggested VGA Card Length: 420mm
(280mm with side fan)
Clearance
Suggested CPU Cooler Height: 175mm
*Product specifications are subject to change without notice.
*Options vary by countries or regions.
*For detailed information please visit our website at www.enermax.com
2.5 How to Install Internal 2.5" & 3.5" Device
Installation von internen 2,5"- und 3,5"-Laufwerken
Instalacja wewnętrznych napędów 2.5"/3.5"
内部2.5インチと3.5インチデバイスの取り付け
安裝隱藏之3.5"/2.5"裝置
2.5.1
A
2.5" 2.5"
HDD/SSD HDD/SSD
B
2
1
Chapter 2 :
Installation Guide
•Montageanleitung •Instrukcja montażu
• •
組裝說明
取り付けの説明
2.1 How to Remove Both Side Panels
Entfernen der Seitenwände
Demontaż panelów bocznych
両サイ ドパネルの取り外し
兩側側板拆卸
2
1
1
2
2.5.2
2
" "
2 .5 2 .5
S D S D
D /S D /S
H D H D
" "
2 .5 2 .5
S D S D
D /S D /S
H D H D
1
