Elk -73 Installation And Instructions

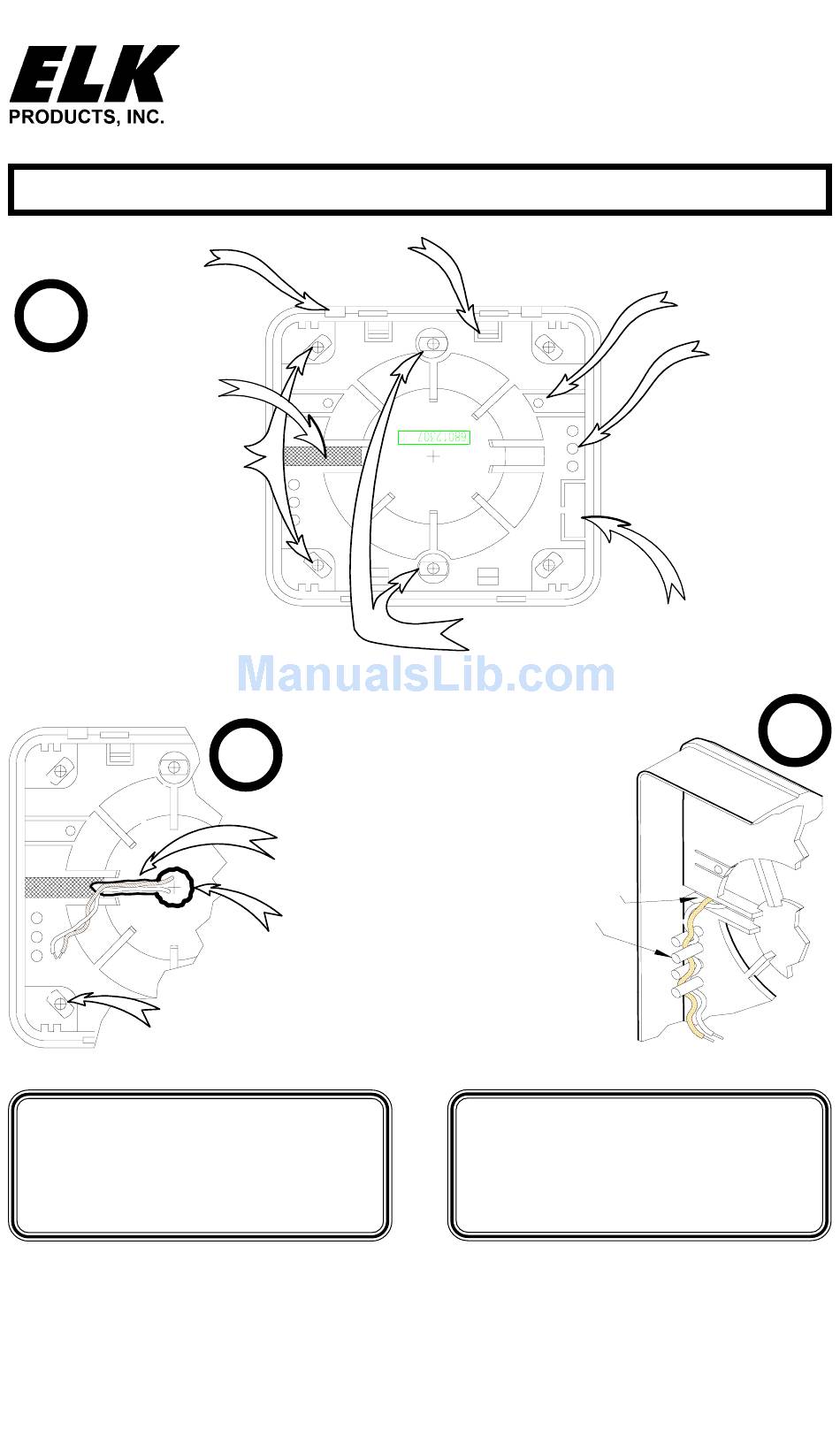

INSTALLATION AND INSTRUCTIONS
Cover "Pry
Off" Slots (2)
Backplate
1
Features
Wiring Entry Slot
Auxillary Mounting Holes (4)
Exact Replacement For ELK-SP35,
SS36 Series (And Many Others)
When replacing an existing ELK-SP35, SS36, or similar unit,
the wiring condition shown below may be encountered
Existing
Mounting
Hole
SPECIFICATIONS FOR ELK-73
SPEAKER ONLY
Impedance: 8 Ohms
Power Rating: 20 Watts RMS
Cone Material: Weather resistant Mylar
Magnet: Oversize Ceramic
Case material: Paintable ABS
Mounting: Single gang box or universal four hole
Size: 4-9/16" x 4-5/16"
Elk Products, Inc. ("Manufacturer") warrants to the original purchaser (the "Customer") that the products it manufactures ("Product") shall be free from defects in material and workmanship at time of shipment. Manufacturer's obligations
under this Limited Warranty shall be limited to repairing or replacing, at its option, free of charge, any product returned to Manufacturer freight prepaid. Manufacturer shall have no obligation under this Limited Warranty or otherwise
if (1) the Product has been damaged by negligence, accident, mishandling, lightning or flood, or other Acts of God, (2) the Product has not been operated in accordance with its operating instructions, (3) the Product has been altered
or repaired by anyone outside Manufacturer's authorized facilities (4) adaptations or accessories have been made or attached to the Product which, in Manufacturer's sole determination, have adversely affected its performance,
safety or reliability. Products such as batteries and fused transformers have their own warranties, and are not included in this Limited Warranty.
If a Product should malfunction or fail, contact Manufacturer or one of its authorized distributors for a Return Authorization (RA) number. Returned Products must include a complete description of the problem, along with the RA
number clearly marked on outside of the package. Manufacturer will not be responsible for any unnecessary items included with any returned Product.
THIS WARRANTY IS THE EXCLUSIVE WARRANTY FOR ANY PRODUCT. MANUFACTURER SPECIFICALLY DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR OF MERCHANTABILITY. MANUFACTURER SHALL NOT BE LIABLE IN TORT, INCLUDING NEGLIGENCE OR STRICT LIABILITY, AND SHALL HAVE NO LIABILITY
AT ALL FOR INJURY TO PERSONS OR PROPERTY. MANUFACTURER'S LIABILITY FOR FAILURE TO FULFILL ITS OBLIGATION UNDER THIS LIMITED WARRANTY OR ANY OTHER LIABILITY IN CONNECTION WITH A PRODUCT
SHALL BE LIMITED TO THE AMOUNT OF THE PURCHASE PRICE RECEIVED BY MANUFACTURER FOR THE PRODUCT. THE REMEDIES STATED IN THIS LIMITED WARRANTY ARE THE CUSTOMER'S EXCLUSIVE
REMEDIES AGAINST MANUFACTURER REGARDING ANY PRODUCT. UNDER NO CIRCUMSTANCES SHALL MANUFACTURER BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
INCLUDING LOST PROFITS AND REVENUES, INCONVENIENCE OR INTERRUPTIONS IN OPERATIONS, OR ANY OTHER COMMERCIAL OR ECONOMIC LOSSES OF ANY KIND. THESE LIMITATIONS AND DISCLAIMERS ARE
NOT MADE BY MANUFACTURER WHERE PROHIBITED BY LAW. SOME STATES PROHIBIT LIMITATIONS OF WARRANTIES AND THE CUSTOMER MAY HAVE ADDITIONAL RIGHTS IN THOSE STATES.
ECHO SERIES
Speaker Hold
Down Snaps
Replacement
2
Unit
Cut A New "Trench" In
Drywall To Bring The
Wires From Under The
Center Sound Disc
Existing
Wiring
Hole
In those cases where a drywall or paneling wall has
a small, centrally located wiring hole, it will be
necessary to bring the wires under the center
sound disc to the rectangular wiring slot as shown.
SEE REVERSE SIDE FOR MORE
PO Box 100 • Hildebran, NC 28637 • 828-397-4200 • 828-397-4415 FAX
http://www.elkproducts.com • email: info@elkproducts.com
"Single Gang" Box
Mounting Holes
The purpose of the
wire wrap posts are
to add some strain
relief and to prevent
wires and connectors
from rattling against
the speaker cone
Wire Wrap Posts

SPECIFICATIONS FOR ELK-74

Operating Voltage: 6-14 Volts D.C.
Sound Pressure Level: 100 db (14 Volts D.C. @ 1 meter)
Current Drain: 480 mA
Magnet: Oversize Ceramic
Case material: Paintable ABS
Mounting: Single gang box or universal four hole
Size: 4-9/16" x 4-5/16"
LIFETIME LIMITED WARRANTY
ELK PRODUCTS, INC.
ELK-73
SPEAKER ONLY
ELK-74
SELF-CONTAINED SIREN
Speaker
Anti-rattle Springs
Tamper Switch
Holder
Wire Entry Slot
SIREN / SPEAKER
Wire Wrap Posts
(Both Sides)
3
05/02
