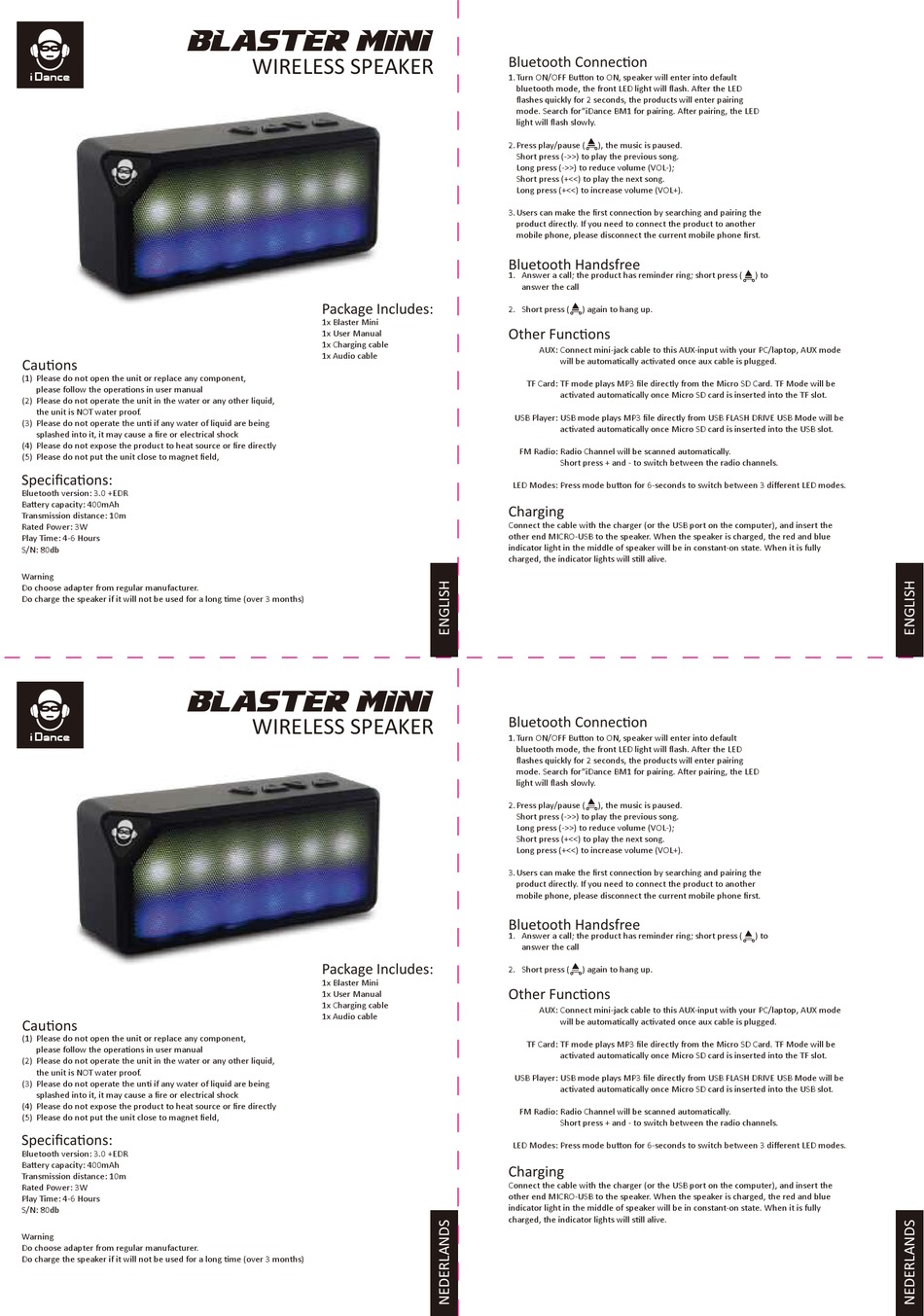

iDance BLASTER MINI User Manual

BLASTER MINI
Cautions
(1) Please do not open the unit or replace any component,
please follow the operations in user manual
(2) Please do not operate the unit in the water or any other liquid,
the unit is NOT water proof.
(3) Please do not operate the unti if any water of liquid are being
splashed into it, it may cause a fire or electrical shock
(4) Please do not expose the product to heat source or fire directly
(5) Please do not put the unit close to magnet field,
Specifications:
Bluetooth version: 3.0 +EDR
Battery capacity: 400mAh
Transmission distance: 10m
Rated Power: 3W
Play Time: 4-6 Hours
S/N: 80db
Warning
Do choose adapter from regular manufacturer.
Do charge the speaker if it will not be used for a long time (over 3 months)
BLASTER MINI
Cautions
(1) Please do not open the unit or replace any component,
please follow the operations in user manual
(2) Please do not operate the unit in the water or any other liquid,
the unit is NOT water proof.
(3) Please do not operate the unti if any water of liquid are being
splashed into it, it may cause a fire or electrical shock
(4) Please do not expose the product to heat source or fire directly
(5) Please do not put the unit close to magnet field,
Specifications:
Bluetooth version: 3.0 +EDR
Battery capacity: 400mAh
Transmission distance: 10m
Rated Power: 3W
Play Time: 4-6 Hours
S/N: 80db
Warning
Do choose adapter from regular manufacturer.
Do charge the speaker if it will not be used for a long time (over 3 months)
WIRELESS SPEAKER
Package Includes:
1x Blaster Mini
1x User Manual
1x Charging cable
1x Audio cable
WIRELESS SPEAKER
Package Includes:
1x Blaster Mini
1x User Manual
1x Charging cable
1x Audio cable
Bluetooth Connection
1. Turn ON/OFF Button to ON, speaker will enter into default
bluetooth mode, the front LED light will flash. After the LED
flashes quickly for 2 seconds, the products will enter pairing
mode. Search for"iDance BM1 for pairing. After pairing, the LED
light will flash slowly.
2. Press play/pause ( ), the music is paused.
Short press (->>) to play the previous song.
Long press (->>) to reduce volume (VOL-);
Short press (+<<) to play the next song.
Long press (+<<) to increase volume (VOL+).
3. Users can make the first connection by searching and pairing the
product directly. If you need to connect the product to another
mobile phone, please disconnect the current mobile phone first.
Bluetooth Handsfree
1. Answer a call; the product has reminder ring; short press (
answer the call
2. Short press ( ) again to hang up.
Other Functions
AUX: Connect mini-jack cable to this AUX-input with your PC/laptop, AUX mode
will be automatically activated once aux cable is plugged.
TF Card: TF mode plays MP3 file directly from the Micro SD Card. TF Mode will be
activated automatically once Micro SD card is inserted into the TF slot.
USB Player: USB mode plays MP3 file directly from USB FLASH DRIVE USB Mode will be
activated automatically once Micro SD card is inserted into the USB slot.
FM Radio: Radio Channel will be scanned automatically.
Short press + and - to switch between the radio channels.
LED Modes: Press mode button for 6-seconds to switch between 3 different LED modes.
Charging
Connect the cable with the charger (or the USB port on the computer), and insert the
other end MICRO-USB to the speaker. When the speaker is charged, the red and blue
indicator light in the middle of speaker will be in constant-on state. When it is fully
charged, the indicator lights will still alive.
Bluetooth Connection
1. Turn ON/OFF Button to ON, speaker will enter into default
bluetooth mode, the front LED light will flash. After the LED
flashes quickly for 2 seconds, the products will enter pairing
mode. Search for"iDance BM1 for pairing. After pairing, the LED
light will flash slowly.
2. Press play/pause ( ), the music is paused.
Short press (->>) to play the previous song.
Long press (->>) to reduce volume (VOL-);
Short press (+<<) to play the next song.
Long press (+<<) to increase volume (VOL+).
3. Users can make the first connection by searching and pairing the
product directly. If you need to connect the product to another
mobile phone, please disconnect the current mobile phone first.
Bluetooth Handsfree
1. Answer a call; the product has reminder ring; short press (
answer the call
2. Short press ( ) again to hang up.
Other Functions
AUX: Connect mini-jack cable to this AUX-input with your PC/laptop, AUX mode
will be automatically activated once aux cable is plugged.
TF Card: TF mode plays MP3 file directly from the Micro SD Card. TF Mode will be
activated automatically once Micro SD card is inserted into the TF slot.
USB Player: USB mode plays MP3 file directly from USB FLASH DRIVE USB Mode will be
activated automatically once Micro SD card is inserted into the USB slot.
FM Radio: Radio Channel will be scanned automatically.
Short press + and - to switch between the radio channels.
LED Modes: Press mode button for 6-seconds to switch between 3 different LED modes.
Charging
Connect the cable with the charger (or the USB port on the computer), and insert the
other end MICRO-USB to the speaker. When the speaker is charged, the red and blue
indicator light in the middle of speaker will be in constant-on state. When it is fully
charged, the indicator lights will still alive.
) to
) to
