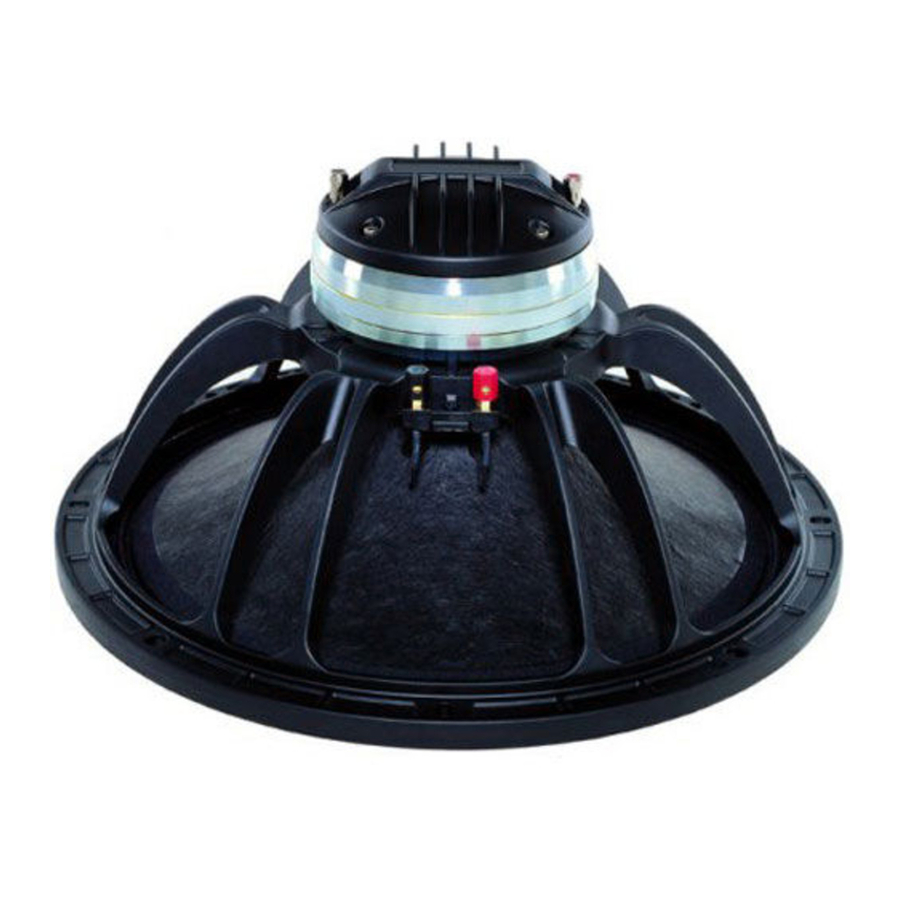

B&C Speakers Coaxials 15CXN76 Specifications

15CXN76
Coaxials
800 W continuous program power capacity
Single Neodymium magnet assembly
80° nominal coverage
40 – 18000 Hz response
99 dB sensitivity

Specifications

Nominal Diameter 380 mm (15 in)
Nominal Impedance
Minimum Impedance 6.0 ohm (LF)
8.0 ohm (HF)
Frequency Range 40 - 18000 Hz
Dispersion Angle (1)
LF Unit
Sensitivity (1W/1m) (2)
Nominal Power Handling (3)
Continuous Power Handling (4)
Voice Coil Diameter
Winding Material
HF Unit
Sensitivity (1W/1m) (5)
Nominal Power Handling (6)
Continuous Power Handling (7)
Voice Coil Diameter
Winding Material
Diaphragm Material Polyester/Titanium
Recom. Crossover (8)
Parameters
Fs
Re
Qes
Qms
Qts
Vas 246 dm3 (8.6 ft3)
Sd 855 cm2 (132.5 in2)
Eta Zero
Xmax
Xvar
Mms
Bl
Le
Mounting and Shipping Info
Overall Diameter 393 mm (15.5 in)
Bolt Circle Diameter 374 mm (14.7 in)
Baffle Cutout Diameter 353 mm (13.9 in)
Depth 198 mm (7.8 in)
Flange and Gasket Thickness 16 mm (5/8 in)
Net Weight 5.6 kg (12.3 lb)
Shipping Weight 7.0 kg (15.4 lb)
Shipping Box 450x450x290 mm
(17.7x17.7x11.4 in)
1 Included by –6 dB down points, averaged from 1 kHz to 8 kHz
8 ohm
80°
99 dB
400 W
800 W
76 mm (3 in)
Copper
105 dB
80 W
160 W
75 mm (3 in)
Aluminium
1.2 kHz
38 Hz
5.1 ohm
0.30
5.8
0.28
3.7 %
+/- 4.5 mm
+/- 6 mm
82 g
17.8 Txm
0.9 mH
