Fieldpiece SRS2C Operator's Manual

WIReleSS
ReFRIgeRanT
SCale: SRS2C
opeRaToR'S Manual
APO: Auto Power Off turns the wireless display off
after 30 minutes. To disable APO, hold the back-
light button and then press the ON/OFF button.
Battery life remaining for remote control.
Battery life remaining for the scale platform.

Tech Tips for the Field

Respect the Environment

Always use low-loss hose fittings to minimize
harmful refrigerant gases entering the atmosphere.

Hoses Affect Weight

There are two ways to handle this issue:
EASY WAY
Connect the hoses to the system before zeroing
the scale. Once the system is stable, log the
weight displayed before disconnecting from the
system.
HARD WAY
Zero the scale without hoses connected. Then,
connect hoses to the system, and add or recover
refrigerant. Disconnect the hoses from the system
and the tank. Now the display will show the
weight of the added or recovered refrigerant.

Introduction

The SRS2C is a rugged wireless scale designed
specifically for weighing refrigerant cylinders. The
wireless remote control is securely stored inside the
back of the rugged scale platform. The remote has a
bright blue backlight. The remote can be hung by the
magnetic hat for easy, hands-free measuring. The
AUTO-OFF
platform is made of solid aluminum with rubber cor-
SYNC
ners to protect against the hazards of daily use.
PRESS FOR
1 SECOND
UNITS ON/OFF

SRS2C Quickstart

Wireless
Refrigerant
OPERATION:
Scale
1. Turn on the remote. The platform will turn on
automatically if synchronized and in stand-by
mode.
ZERO
2. Zero (tare) the scale by holding the ZERO button
PRESS FOR 1 SECOND
on the remote for one second.
3. Press the UNITS button on the remote to select
pounds or kilograms.
4. Read weight directly on the remote's display.
SRS2

SYNCHRONIZATION:

If "no Sig" or "CH USEd" is displayed when the
Wireless Remote
remote is powered on, you need to SYNC the remote
to your platform.
1. Check that the platform is powered on.
2. Hold the SYNC button on the remote until search
pattern appears.
3. During the search, hold the SYNC button on the
platform until green SYNC LED blinks.
4. If the sync is successful, the SYNC LED will go
Platform
solid and a reading will be shown on the display.
Visit us at www.TestEquipmentDepot.com

G-value compensation

The Earth's gravitational strength varies depend-
ing on your location on the Earth's surface. This can
affect the accuracy of your scale readings.
In order to get the most accurate readings possible
you may want to adjust the g-value of your SRS2C.
In order to adjust the g-value of your SRS2C follow
the steps below:
1. Hold the UNITS button while powering on the
SRS2C display. This will take you into the g-value
set up. "G-St" will display momentarliy followed by
your SRS2C's current g-value.
2. Press the UNITS button to scroll through 9
default g-values and a 10th custom input. To
input a custom value press the UNITS button until
"G-St" is shown on the display. Then use the
BACKLIGHT and SYNC buttons to increase or
decrease the g-value.
3. When you have selected the appropriate g-value
for your area, press the ZERO button to exit.

Features

• Wireless communication between the platform
• The remote stores in the body of the platform for
• Solid aluminum platform with rubber corners
• Diamond plate style rubber pad keeps cylinders
• Easy synchronization between the platform and
• Highly accurate weight sensor.
• Magnetic hat on the remote allows for convenient
• Zero (tare) the scale from the remote.
• Remote control remembers the last zero point,
• Bright backlight allows you to read the remote
• Auto-power off conserves battery life.
• Battery life for both the platform and remote con-
• Wireless signal strength indicator.
• The platform automatically goes into standby
• Long battery life.

Safety

the following:
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431

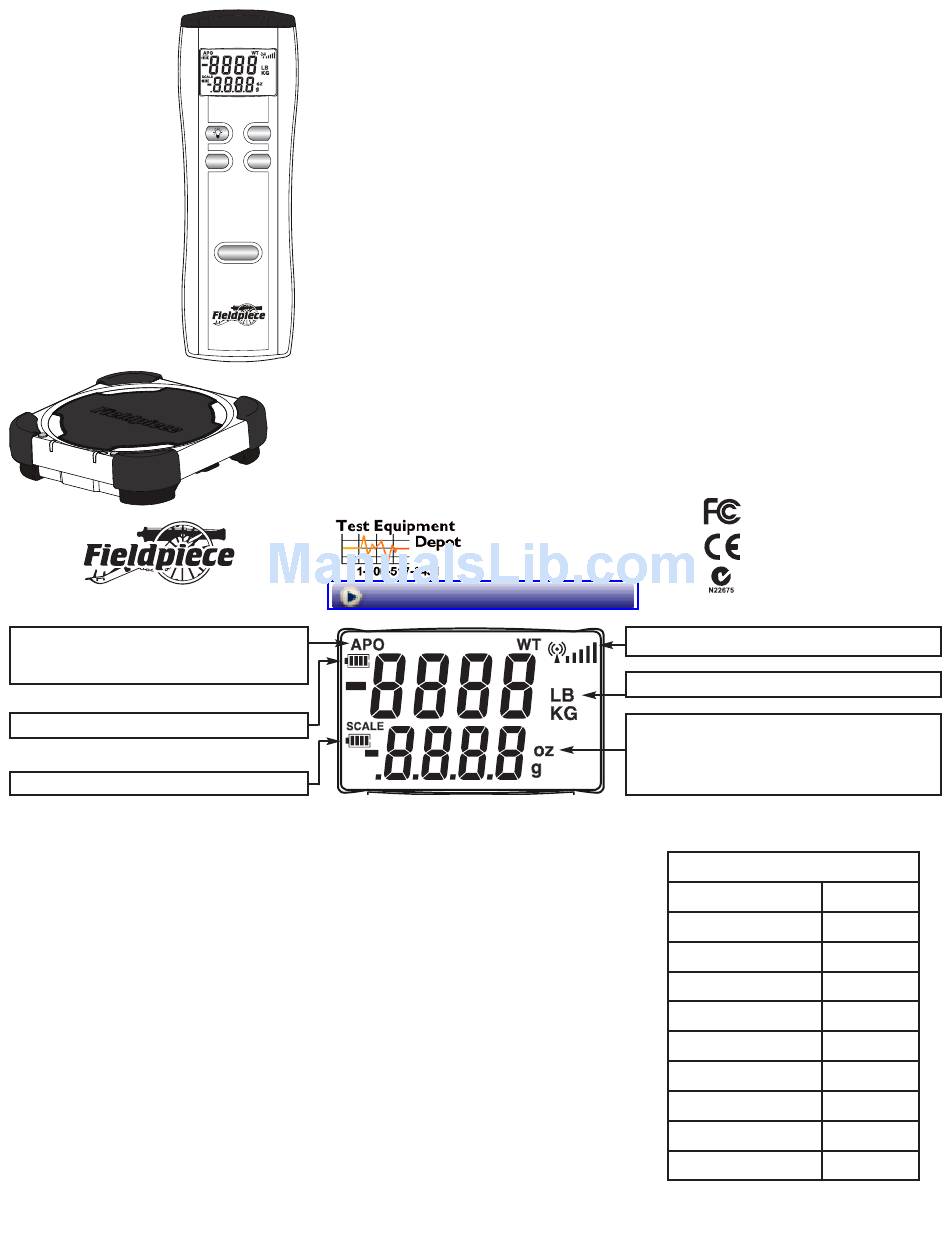

Wireless signal strength between remote and platform.
Major unit reading, in pounds (Lb) or kilograms (Kg).
Minor unit reading, in ounces (oz) or grams (g).
Combine with major unit for total weight.
For example: if the upper display shows 14 Lb and
the lower display shows 11.50 oz, the total weight is
14 Lbs and 11.50 oz.
and remote control.
convenient carrying.
means your scale is rugged enough for the field.
from sliding around the platform.
the remote.
display location and keeps your hands free.
even after powering on and off (you won't lose
your calibration even if the scale turns off).
display in any lighting.
trol are visible at all times.
when the remote is turned off.
This instrument complies with the requirements of
FCC Rule Part: 15C
ID: VEARF915
CE: EN300 220
C-Tick

G-Values

1.) Los Angeles
2.) Taipei
3.) Mexico City
4.) Kolkata
5.) Rio De Janeiro
6.) Sydney
7.) Tokyo
8.) Brussels
9.) Chicago
10.) Custom input
* Default G-value setting.
Opman SRS2C v16
9.796*
