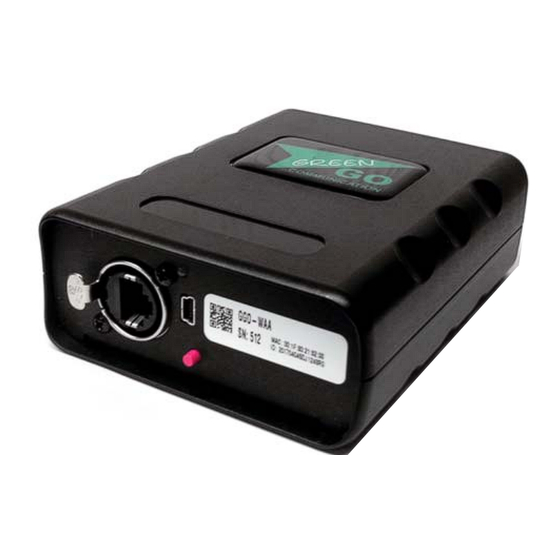

The Green Go Antenna connects the wireless belt-packs to other Green Go Stations via ethernet.
It can also supply a Standalone setup, working as a connection between belt-packs.
Whats in the box: Wireless Antenna + Angled Bracket + 2 philips screws
Overview
Neutrik Ethercon
Ethernet Connector
Ethernet connector: Supplies access to the network and PoE (Power over Ethernet)
mini USB connector: Supplies power when in standalone mode
Push button:
The Push button is used for activating pairing mode
Status LED:
Green Flash - Another network device with the same configuration is on the system
Red/Green Flash – No other network device with the same configuration on the system detected
Red - Slow Flash The antenna is ready to be paired with a belt-pack
Basic Functions
Pairing: An Antenna needs to be paired with a belt-pack for the two to connect.
An antenna can serve up to 4 paired belt-packs, but remember pairing with up to 6 belt-packs
Roaming: Belt-packs can be set to search (roam) for a better signal to other paired antennas
Standalone: Using one antenna to create a Green Go network. This allows for a maximum of 4 paired belt-packs.
Green Go Antenna
User guide
Status LED
mini USB
Push Button
model nr. GGO-WAA
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Green-Go GGO-WAA
Summary of Contents for Green-Go GGO-WAA
- Page 1 An antenna can serve up to 4 paired belt-packs, but remember pairing with up to 6 belt-packs Roaming: Belt-packs can be set to search (roam) for a better signal to other paired antennas Standalone: Using one antenna to create a Green Go network. This allows for a maximum of 4 paired belt-packs.
- Page 2 When pairing a seventh beltpack to an antenna, it will replace the beltpack paired at slot no.6 This can be reorganized via the Green Go Update Connection software. It is good practice to keep a standard setup of 4 beltpacks paired with one antenna, leaving room for two additional pairings in case of emergencies or just one offs.
- Page 3 The firmware can be uploaded via ethernet or miniUSB. The latest firmware can be found at www.GreenGoDigital.com Download the latest firmware and the Green Go Control and Connection software. - start the software - click Scan to search for the antenna on the network - Next select the antenna or multiple antennas and click on Update.
-
Page 4: Troubleshooting
User guide Green Go Antenna model nr. GGO-WAA Troubleshooting There is no signal or poor signal level to the belt-pack - Check Pairing with Antenna - Check you are within range (300 metres maximum with clean line of sight) - Ensure that the antenna is vertically orientated The antenna is not sending a signal - Check that the LED is not flashing red and green.
