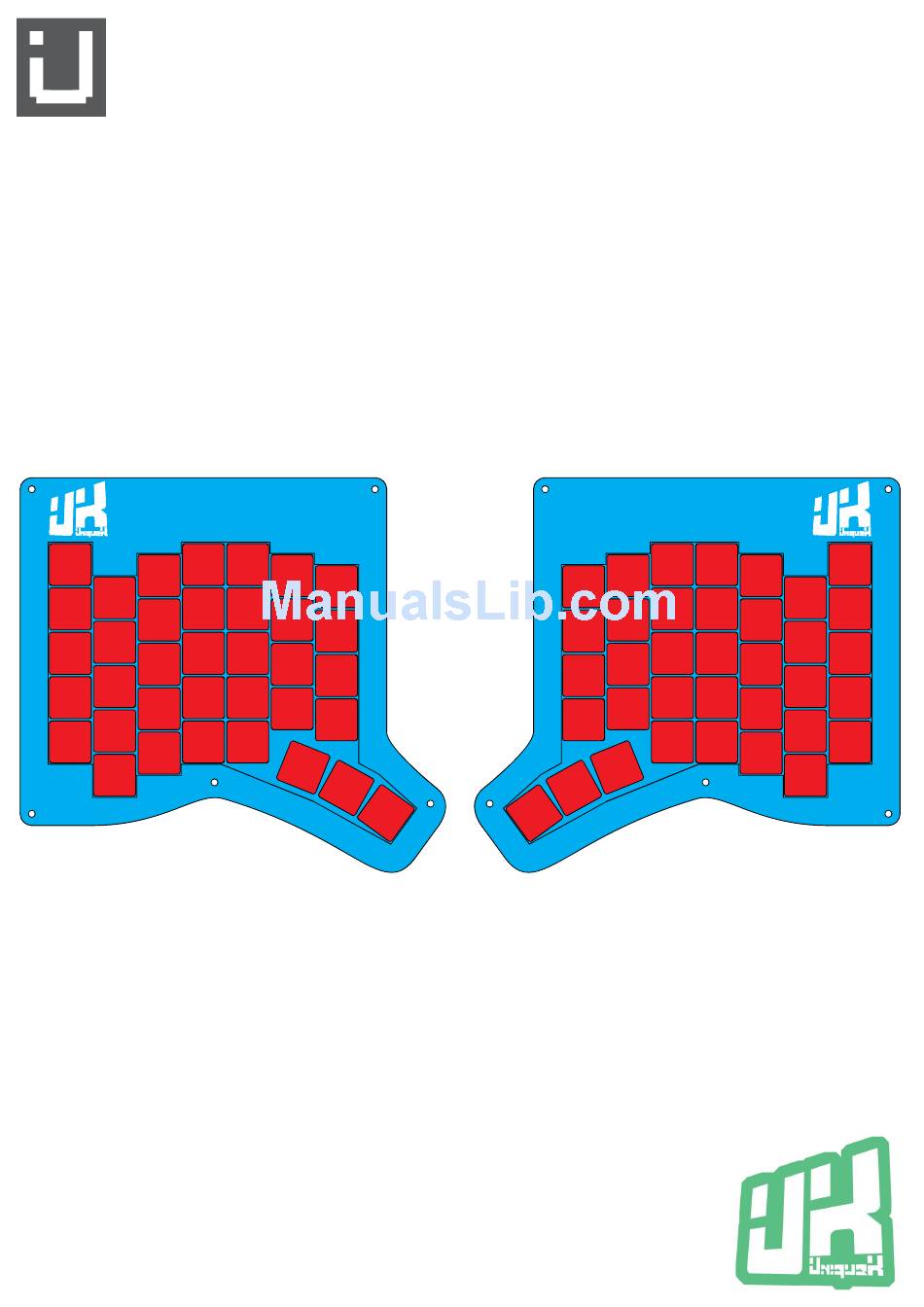

DIVERGE 3 R0 "ALEXANDRI"
SPLIT ERGONOMIC MECHANICAL BACKLID KEYBOARD
Model: Diverge typeZERO R0 "Alexandri Magni"
Dimensions: 180mm x 170mm x 20mm per side
Number of Keys: 72
Max Number of Layers: 8
Keycaps: 1u x 72
Interface: HID via USB
Rollover: NKRO/6KRO Togglable
Assembly Instruction:
http://unikeyboard.io/instruct/diverge-3
Advertisement
Related Manuals for UniKeyboard DIVERGE 3 R0 ALEXANDRI
Summary of Contents for UniKeyboard DIVERGE 3 R0 ALEXANDRI
- Page 1 SPLIT ERGONOMIC MECHANICAL BACKLID KEYBOARD Model: Diverge typeZERO R0 “Alexandri Magni” Dimensions: 180mm x 170mm x 20mm per side Number of Keys: 72 Max Number of Layers: 8 Keycaps: 1u x 72 Interface: HID via USB Rollover: NKRO/6KRO Togglable Assembly Instruction: http://unikeyboard.io/instruct/diverge-3...
- Page 2 WARNING - Choking Hazard: This product contains small parts, use with adult supervision. - Lead Hazard: The solder used on the PCB contains lead which may lead to lead poisoning, the solder that you are using also very likely contains lead if it is not explicitly labelled as “Lead Free,”...
- Page 3 ASSEMBLY INSTRUCTIONS 01 Bend all diodes as shown below 02 Orient the PCB as follows 03 We are now assembling the LEFT side, insert all the diodes as shown below Make sure to orient all the diodes like this 04 Reorient your PCB as follows Now solder on all the diodes 05 Cut off the leads with a nail clipper or snipper...
- Page 4 07 Solder on the MOSFET, notice the 08 Solder on the resistors on all the orientation of the MOSFET marked by switches (skip this step if you do not a dot in the corner, solder the marked need LEDs) resistors if you wish to install LEDs 100ohm 100kohm 09 Insert 2 leads cut from the diodes and...
- Page 5 15 Orient the acrylic mount plate as 16 Press four switches into the corners follows of the plate Switch 17 Reorient the PCB and acrylic piece 18 Place the PCB onto the plate, make as follows such that the switches are sure to press firmly on the switches facing downads and the diodes are facing upwards...
- Page 6 21 If you wish to install LEDs, insert each 22 Cut off the leads with a nail clipper individual LED into the Cherry MX or snipper switch’s LED socket and solder them one by one, make sure to do them one by one so that each LED is deeply seated and does not poke out and obstruct the keycaps.
- Page 7 26 Get the rest of the acrylic plates, stack them and screw in the rest of the screws Bottom 27 We are now going to assemble the RIGHT side. Orient the second PCB and insert the diodes as shown below Make sure to orient all the diodes like this Now solder on all the diodes...
- Page 8 07 Solder on the resistors on all the 09 Insert 2 leads cut from the diodes and switches (skip this step if you do not solder them by following the white need LEDs) lines on the PCB 09 If you wish to install LEDs,solder on 10 Reorient your PCB as follows the resistors pictured below, notice that the diodes are facing upwards.
- Page 9 15 Orient the acrylic mount plate as 16 Press four switches into the corners follows of the plate Switch 17 Reorient the PCB and acrylic piece 18 Place the PCB onto the plate, make as follows such that the switches are sure to press firmly on the switches facing downads and the diodes are facing upwards...
- Page 10 21 If you wish to install LEDs, insert each 22 Cut off the leads with a nail clipper individual LED into the Cherry MX or snipper switch’s LED socket and solder them one by one, make sure to do them one by one so that each LED is deeply seated and does not poke out and obstruct the keycaps.
- Page 11 TRRS cable. (Don’t leave one side plugged in) Now that you have completed assembly of the Diverge 3, you may wish to visit http://unikeyboard.com/ to obtain a copy of the Arbites key rebinder to create and upload your own customised layout.
