ELPRO EL-EX-H02P User Manual

ITEM NO.:
EL-EX-H02P
HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH
The HDMI HDbaseT transceiver provides full 3D (all formats), resolutions up to 4Kx2K (4 times the
1080p) with multi-channel audio, IR and RS-232 extension over a single CAT5e/6 cable. It's fully
compliant with HDCP, EDID and CEC controls. The EL-EX-H02P also extends Ethernet to permit the on
line access to TVs, DVD Players and other network devices such as 100Base-T routers, hubs and
computers. IR channel is bi-directional, therefore in the same time you can control the destination
device from the location of the source and A/V sources from the location of the destination. HDMI,
RS232, IR and Ethernet signal can be transmitted simultaneously without affecting each other. With the
support of PoH (Power over HDBaseT) feature, the receiver is powered through the CAT5E/6 cable
eliminating the need of the power supply.
EL-EX-H02P
HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH
Extends HDMI, RS232 and IR signals with Ethernet over one CAT5e/6 cable.
Uncompressed high definition video up to 1080p 60Hz 16 bits.
HDMI 1.4 with 3D, 4k x 2k support, HDCP and DVI Compliant.
Max. Data Rate 10.2Gbps.
Audio supports up to LPCM 7.1 192KHz, Dolby TrueHD, DTS-HD MA
Transmission range up to 100 meters at 1080p resolution.
Bi-directional IR, support 30÷60kHz.
Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing
status requests and control of the destination unit.
Support two port 10/100Mbps network, allowing to connect the network TV or internet devices.
Support PoH (Power over HDBaseT), no external power required at receiver.
External power supply included for the Transmitter only.

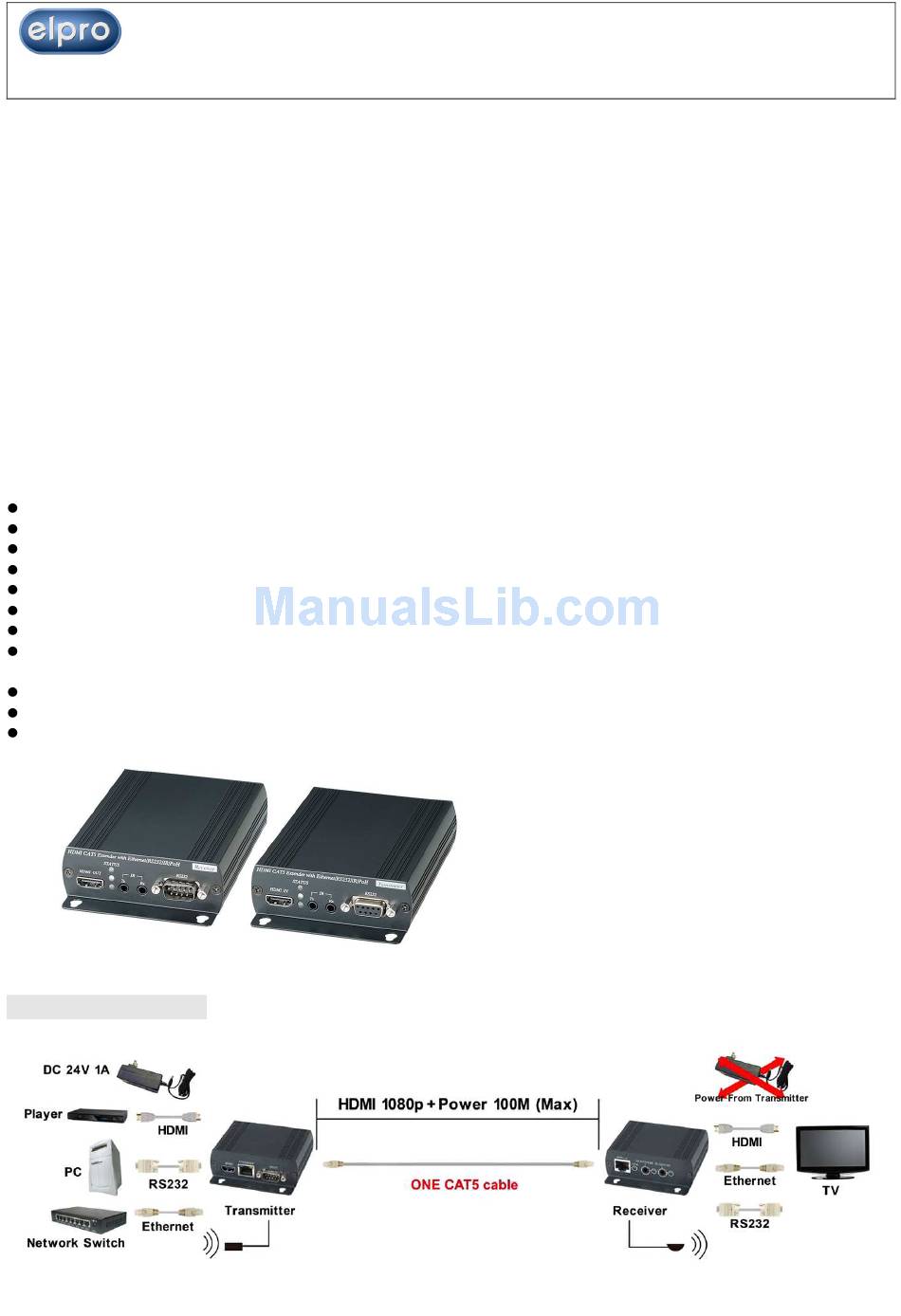

Installation view:

HDMI (HDBaseT) CAT5 Extender Series
Elpro Video Labs Ed. 1 April 2014
