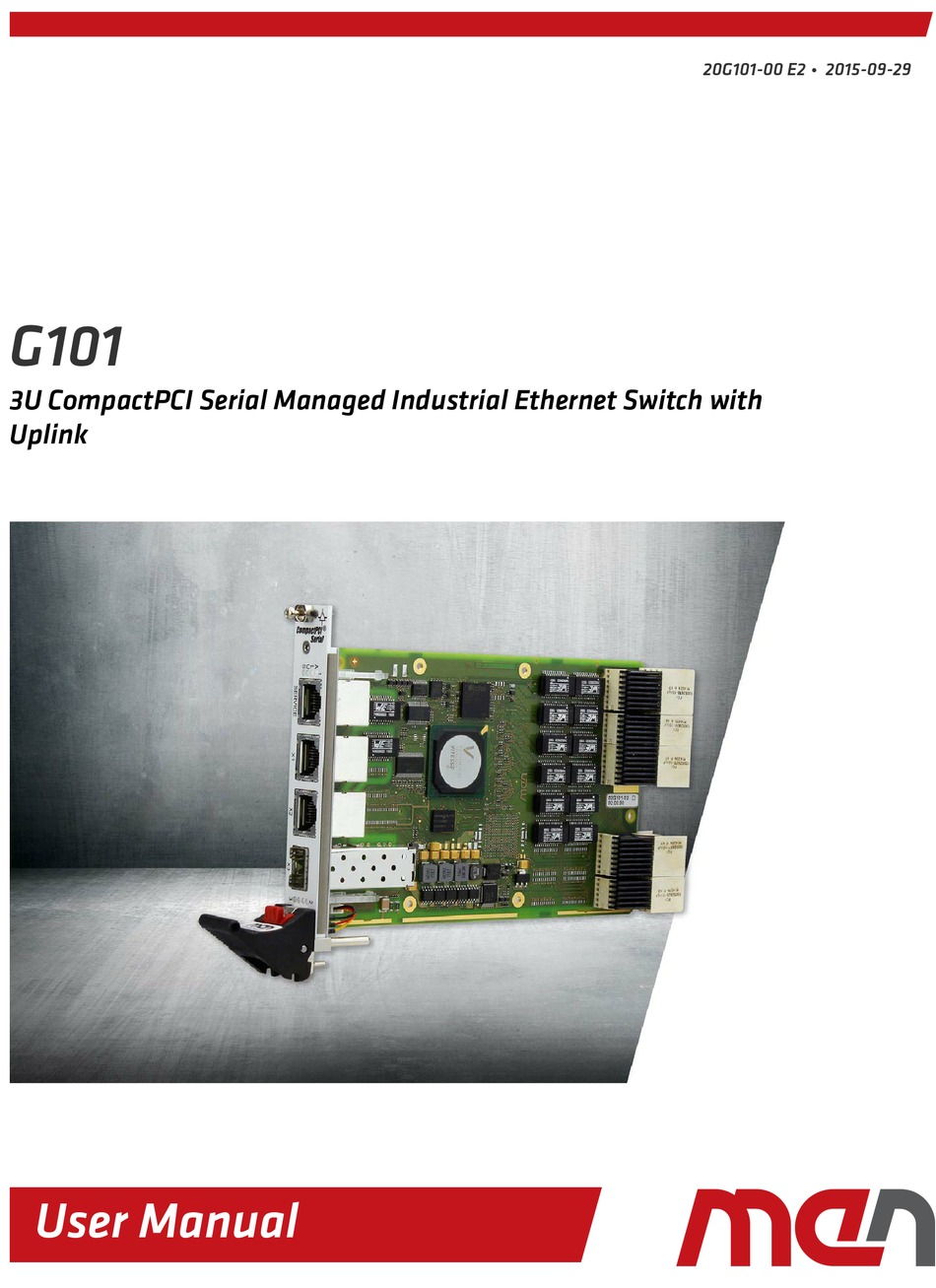

Page 1: User Manual
20G101-00 E2 2015-09-29 G101 3U CompactPCI Serial Managed Industrial Ethernet Switch with Uplink User Manual... - Page 2 Various connection possibilities due to various port options The G101 either features three Ethernet ports on the front and up to 22 ports on the rear, or alternatively all 25 ports on the rear. These include 12 ports with integrated 10/ 100/1000 Mbit/s copper PHYs.
- Page 3 Diagram Diagram 5 Gb Ethernet DDR2 SDRAM 3 Gb Ethernet Reset 4 Gb Ethernet RS232 Gigabit Ethernet RJ45 Vitesse VSC7429 4 Gb Ethernet Processor Gigabit Ethernet 2x QSGMII RJ45 Gigabit Ethernet QSGMII SGPIO PSU: 16 VDC max. DC/DC Front Rear SPGIO FPGA Options 2015-09-29 20G101-00 E2 Page 3 ...
-
Page 4: Technical Data
Technical Data Technical Data Supported Port Types The following configurations are available: RJ45: 12x 1 Gbps + 1x 2.5 Gbps (2x 1 Gbps + 1x 2.5 Gbps on front) with "on-the-Fly" SFP detection support (Model: 02G101-00) M12: 12x 1 Gbps CU Ports (3x 1 Gbps M12 on front) (Model: 02G101-01) Enhancements: ... -
Page 5: Configuration Management
Technical Data Switch Management and Monitoring Link OAM: IEEE 802.3ah Flow OAM (ingres, egres): IEEE802.1ag, ITU-T Y.1731 Down-MEP, ITU-T Y.1731 Up- MEP, ITU-T Y.1731 MIP, SMAC/DMAC Swap OAM Performance Monitoring MEF35 Phase 1 Redirect back to arrival port debugging feature SNMP Management v1, v2c, v3 (RFC 1212, 1901-1908, 3411-3418) ... - Page 6 Technical Data Security Static L2 Port Isolation Port based RADIUS and internal MAC Authentication (IEEE 802.1X) RADIUS accounting (RFC 2866ff) Single and Multiple IEEE 802.1X VLAN and QOS assignment TACACS+ (RFC 1492) MAC address flood prevention (MAC address table limitation) ...
- Page 7 Technical Data DHCP DHCP Server (RFC 2131/ 3132) DHCP Client (RFC 2131 / 3132) DHCP Option 82 (DHCP Relay Agent Information Option) DNS Client (RFC 2136) DNS Proxy (RFC 5625) Synchronization NTPv4 Client (RFC 5005) ...
-
Page 8: Electrical Specifications
Technical Data Rear Interfaces One channel, USB2.0 as a console interface for configuration Ethernet Twelve channels 1000BASE-T (1 Gbit/s) Serial GPIO (SGPIO) Compliant with SFF 8485 specification Supervision and Control Watchdog Temperature monitoring Backplane Standard CompactPCI®... - Page 9 Technical Data Safety Flammability UL 94V-0 Electrical Safety EN 50155 (Insulation) EN 50155 (Voltage) EN 55022 (radio disturbance) EN 61000-4-2 (ESD Immunity) EN 61000-4-4 (burst) Software Support Firmware for configuration and management 2015-09-29 20G101-00 E2 Page 9 ...
-
Page 10: Product Safety
Only store the board in its original ESD-protected packaging. Retain the original packaging in case you need to return the board to MEN for repair. 2015-09-29 20G101-00 E2 Page 10 ... -
Page 11: About This Document
About this Document About this Document This user manual is intended only for system developers and integrators, it is not intended for end users. It describes the hardware functions of the board, connection of peripheral devices and integration into a system. It also provides additional information for special applications and configurations of the board. - Page 12 About this Document Conventions Indicates important information or warnings concerning the use of voltages that could lead to a hazardous situation which could result in personal injury, or damage or destruction of the component. Indicates important information or warnings concerning proper functionality of the product described in this document.
-
Page 13: Legal Information
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for the products in question. If buyer does not notify MEN in writing within the foregoing warranty period, MEN shall have no liability or obligation to buyer hereunder. - Page 14 Legal Information Conformity MEN products are no ready-made products for end users. They are tested according to the standards given in the Technical Data and thus enable you to achieve certification of the product according to the standards applicable in your field of application.
-
Page 15: Table Of Contents
Contents Contents 1 Getting Started ..........17 Map of the Board . - Page 16 Figures Figure 1. Front panels with RJ45 ports and SFP cage (left,) or M12 ports (right)..17 Figure 2. Map of the board – top view......... 18 Figure 3.
-
Page 17: Getting Started
Two types of front panels are available, either with RJ45 Ethernet connectors and a SFP cage, or with M12 Ethernet connectors Figure 1. Front panels with RJ45 ports and SFP cage (left,) or M12 ports (right) ® ® CompactPCI CompactPCI Serial Serial G101 G101 2015-09-29 20G101-00 E2 Page 17 ... -
Page 18: Integrating The Board Into A System
The following check list can be used as a guide when installing the board in a system for the first time, and with minimum configuration. System Slot The G101 can act as the switch for a CompactPCI Serial system when inserting it into the system slot. »... -
Page 19: Initial Configuration
Initial Configuration Initial Configuration Accessing the switch Once the system has powered up, you can access the switch using its base address with telnet, ssh, http, https or the service console interface. To contact the switch via the backplane interface, install the virtual connector driver available from the FTDI Chip website. -
Page 20: Quick Start Guide
Displaying the current configuration and saving to FLASH storage The G101 switch must powered on have a functional computer connection using the serial console port on the device (115200 baud, no parity, 8 data bits, 1 stop bit, no flow control). -
Page 21: Login And Reset Configuration To Factory Defaults
Initial Configuration 2.2.1 Login and reset configuration to factory defaults Carry out the following steps to log into the system: » Press <Enter> until the ’ :’ prompt appears. Username » Type " " and press <Enter>. admin » At the ’ :’... -
Page 22: Setting A Password For The Admin User
Initial Configuration 2.2.3 Setting a password for the admin user In order to set the administrator password, carry out the following steps: » At the ’ ’ prompt type " " and press <Enter> my-device# configure terminal » Then type " "... -
Page 23: Display And Save Configuration To Flash
Initial Configuration Table 6. IP address sequence my-device# show ip interface brief Vlan Address Method Status ---- -------------------- -------- ------ 1 172.16.1.17/16 DHCP my-device# displays all configured and active IP interfaces. The status show ip interface brief should be UP, unless there is no link on any port. If DHCP negotiation has failed then the fallback IP of 172.16.1.2 would be assigned. -
Page 24: Table 8. Show Running-Config Sequence
Initial Configuration Table 8. Show running-config sequence my-device# show running-config Building configuration... hostname my-device username admin privilege 15 password encrypted dmVyeS1zZWNyZXQ= vlan 1 name default spanning-tree mst name 00-01-c1-00-ad-80 revision 0 ! [...] interface GigabitEthernet 1/1 interface GigabitEthernet 1/2 ! [...] interface 2.5GigabitEthernet 1/1 interface 2.5GigabitEthernet 1/2 interface vlan 1... -
Page 25: Table 9. Startup-Config Sequence
Initial Configuration Table 9. Startup-config sequence my-device# copy running-config startup-config Building configuration... % Saving 1326 bytes to flash:startup-config my-device# dir Directory of flash: r- 1970-01-01 00:00:00 648 default-config rw 1970-01-03 18:21:28 1326 startup-config 2 files, 1974 bytes total. my-device# more flash:startup-config hostname my-device username admin privilege 15 password encrypted dmVyeS1zZWNyZXQ= vlan 1... -
Page 26: Functional Description
Thermal Considerations A suitable heat sink is provided to meet thermal requirements. Please note: If you use any other heat sink than that supplied by MEN, or no heat sink at all, warranty on functionality and reliability of the G101 may cease. -
Page 27: Table 11. Pin Assignment Of Rj45 Ethernet Front-Panel Connectors
Functional Description RJ45 Connectors Connector types: Modular 8/8-pin mounting jack according to FCC68 Mating connector: Modular 8/8-pin plug according to FCC68 Table 11. Pin assignment of RJ45 Ethernet front-panel connectors 1000Base-T D_1+ D_1- D_2+ D_2- D_3+ D_3- D_4+ D_4- M12 Connectors Connector types:... -
Page 28: Table 13. Pin Assignment Of Sfp Front-Panel Connector
Functional Description SFP Connector The G101 supports a high speed uplink with one SFP cage at the front panel, with up to 2.5 Gbit/s. Connector type: Small Form-factor Pluggable (SFP) single port cage Table 13. Pin assignment of SFP front-panel connector... -
Page 29: Ethernet Switch
Ethernet Switch Firmware Manual. Reset Interface The G101 can be reset using the reset button at the front panel. The reset button is recessed within the front panel, which prevents the button from being activated inadvertently, and requires a tool, like a paper clip, to be pressed. -
Page 30: Compactpci Serial Interface
Functional Description CompactPCI Serial Interface The G101 uses the rear connectors P1 according to the CompactPCI Serial specification (PICMG CPCI-S.0). Pin Assignment of P1 Connector Connector type of P1: 72-pin Airmax VS 4 pair, right angle header, 6 IMLA with end walls ... -
Page 31: Table 18. Pin Assignment Of Compactpci Serial P2 Connector
Functional Description Pin Assignment of P2 Connector Connector type of P2: 96-pin Airmax VS 4 pair, right angle header, 8 rows, 2 walls Table 18. Pin assignment of CompactPCI Serial P2 connector REF- REF- OUTPUT INPUT INPUT CLK_3 CLK_2 OUT- OUTPUT OUTPUT INPUT... -
Page 32: Table 19. Pin Assignment Of Compactpci Serial P4 Connector
Functional Description Pin Assignment of P4 Connector Connector type of P4: 96-pin Airmax VS 4 pair, right angle header, 8 rows, 2 walls Table 19. Pin assignment of CompactPCI Serial P4 connector ETH_16_ ETH_16_ ETH_16_ ETH_16 ETH_16_ ETH_16_B ETH_16_ ETH_16_ _C_p ETH_15_ ETH_15_... -
Page 33: Table 20. Pin Assignment Of Compactpci Serial P5 Connector
Functional Description Pin Assignment of P5 Connector Connector type of P5: 96-pin Airmax VS 4 pair, right angle header, 6 rows, 2 walls Table 20. Pin assignment of CompactPCI Serial P5 connector MDIO_1 MINT_1 MDC_1 MDIO_3 MINT_3 MDC_3 MDIO_2 MINT_2 MDC_2 ETH_12_ ETH_12_... -
Page 34: Table 21. Pin Assignment Of Compactpci Serial P6 Connector
Functional Description Pin Assignment of P6 Connector Connector type of P6: 96-pin Airmax VS 4 pair, right angle header, 8 rows, 4 walls Table 21. Pin assignment of CompactPCI Serial P6 connector ETH_8_D ETH_8_D ETH_8_C ETH_8_ ETH_8_B_ ETH_8_B_ ETH_8_A ETH_8_A ETH_7_D ETH_7_ ETH_7_... -
Page 35: Appendix
Appendix Appendix Literature and Web Resources G101 data sheet with up-to-date information and documentation: www.men.de/products/02G101-.html 4.1.1 Ethernet ANSI/IEEE 802.3-1996, Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Access Method and Physical Layer Specifications;... -
Page 36: Finding Out The Product's Article Number, Revision And Serial
Number MEN user documentation may describe several different models and/or design revisions of the G101. You can find information on the article number, the design revision and the serial number on the two labels affixed to the board. Article number: Indicates the product family and model. This is also MEN’s ordering ...
