Summary of Contents for Dorma AC-225

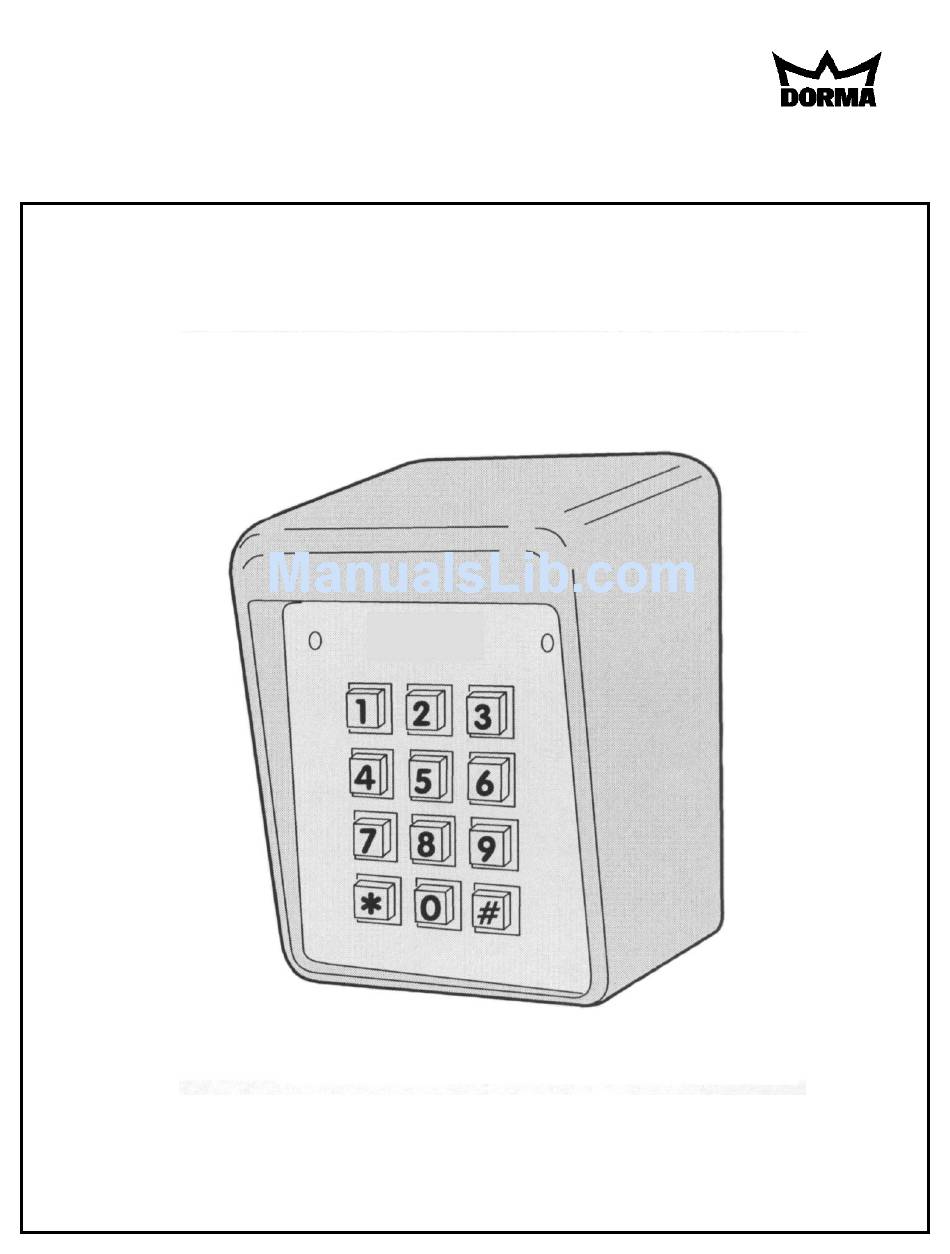

- Page 1 INSTALLATION INSTRUCTIONS AC-225 KEYPAD 08105683 2/03...
-
Page 2: Specifications
JUMPER JP1 REMOVE TO The AC-225 is powered from a 12-24 Volt AC or DC REDUCE BEEPER SOUND source. Power can be obtained from the access device TERMINAL BLOCK J4 POWER AND INPUTS or a separate power supply. -
Page 3: Wall Mounting
EVER, THE GATE MUST BE FULLY VISIBLE FROM THE KEYPAD. MOUNTING The AC-225 keypad can be mounted directly to a wall or flat surface. Use the appropriate fasteners to secure the keypad's backplate to the mounting surface. When mounting the keypad to a concrete wall, use concrete wedge anchors or molly anchors. -
Page 4: Gate Control
(BEHIND GATE) REQUEST-TO-ENTER/EXIT FIRE ACCESS KEYSWITCH Gate Control 2 WIRES FROM AC-225 2 WIRES FROM OPERATOR TO TRIGGER GATE OPEN FOR AC-225 POWER 1. Route four wires between the gate and the keypad (two for power, two for control). 2. Connect the gate operator's auxiliary or radio power... -
Page 5: Door Control
SENSE 2. Choose a location for the power supply or transformer. 3. Route two wires between the power supply and the AC-225 keypad. Connect the power supply's output terminals KEYPAD to the keypads POWER input terminals (observe wiring polarity if using DC power). -
Page 6: Factory Defaults
LED will blink. new entry code. The Entry Check will internally add any This indicates that the AC-225 is ready to accept the new zeros to fill all digits determined by the entry code length programming data. -
Page 7: Programming Options
Select Alarm Shunt Output Default: Relay #2 Sets which output activates during the time access is grant- There are several AC-225 programming options. For ed. (Use this output to shunt alarm contacts attached to the most installations, the factory set default options are access door.) -
Page 8: Master Reset
EXAMPLE 2: OUTPUT #3 LIGHTS A LAMP POWERED FROM AN EXTERNAL CAUTION: Performing a master reset will clear the entire SOURCE, OUTPUT #4 TRIGGERS A NORMALLY OPEN ALARM PANEL ZONE memory of the AC-225 and return all programmable Using the Solid State Outputs options to the factory default values. -
Page 9: Locking Keypad
1 Users of the AC-225 have up to 40 seconds to key may cause harmful interference to radio communications. in their entry code. - Page 10 MANAGER’S ENTRY CODE LOG NAME ADDRESS OR APARTMENT NUMBER ENTRY CODE RELAY NUMBER ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊...
