Dorma AC217 Installation Instructions

DORMA ARCHITECTURAL HARDWARE
DORMA Drive, Drawer AC Reamstown, PA. 17567
(800) 523-8483 * Fax: (800) 274-9724
www.dorma-usa.com

Basic Programming:

The following steps will set the AC217 to:
User 02 PIN code 1493
Unlock for 5 seconds
Try the new code: Press 1493#
P:\INSTALLATION INST\DORMA\INST-AC217 (version 2).vsd
AC217 STAND-ALONE KEYPAD
INSTALLATION INSTRUCTIONS
Basic Programming:
1. Enter Programming Mode
Power unit up with (LPJ) jumper in the ON position, remove, replace
jumper to OFF position (puts you in the program mode).
Enter "09876#"
New Master Code is 9876.
2. Program User Code
Enter 9876* followed by 1 user ID number (01-99) pin number #
Example: 9876 * 1 01 7412# (this is user 01 with pin number 7412).
User Number from 1 – 99. PIN code 4-8 digits.
3. Set Main Relay Time
Press 40 05 # *. Time (1-999 sec.)

Additional Programming Optional:

Delete User
Enter Master Code * 1 User Number # *. Deletes user.
Change Master Code
Enter Master Code * 0 New Master # *. Master code is changed.
Reset to factory default settings
Enter Master Code * Press 8901# *. Erases all programming except
Master Code.

AC217 EXAMPLE PROGRAMMING

REV A 08-09 Page 1
Programming:
1. Enter 9876* 1 02 1493#
2. Enter 40 05# *
Action
Enters Programming Mode and assigns User 02 the PIN
Code of 1493, Master Code is 9876.

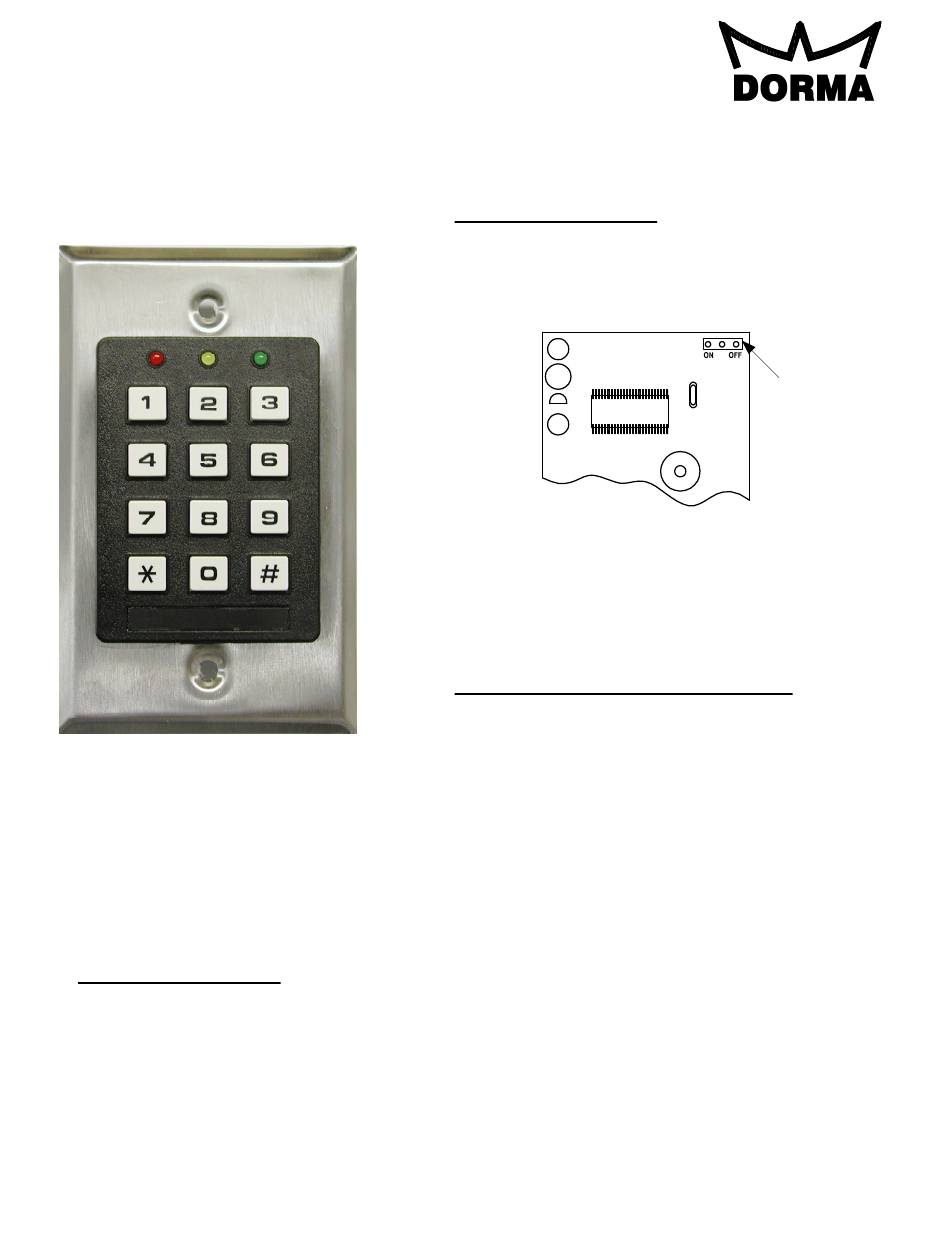

LPJ JUMPER
