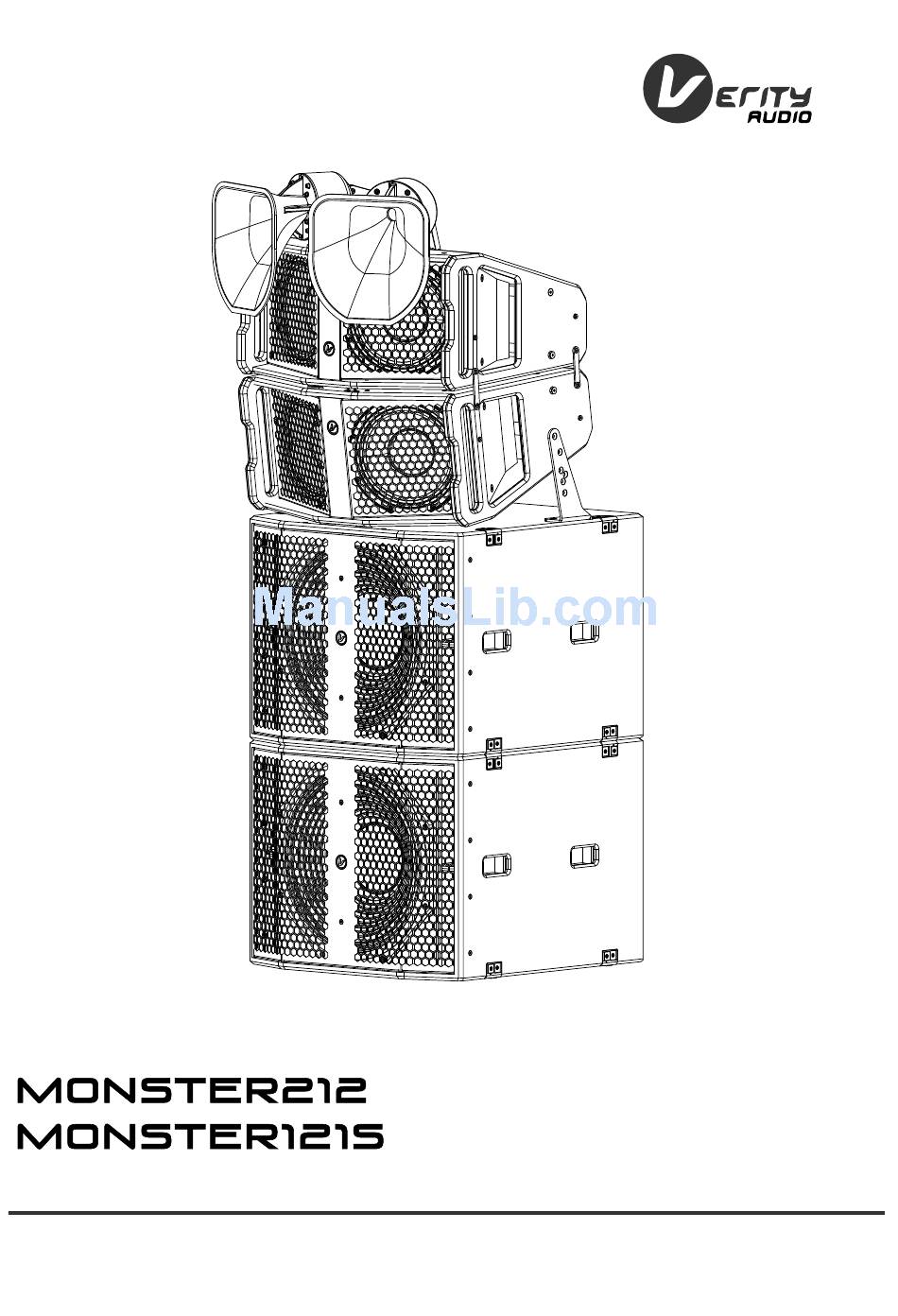

  • Page 1 User's manual www.verityaudio.fr...
  • Page 3: Specifications

    SPECIFICATIONS Monster212 is a two way full range speaker that combine by individual dual 12 inch LF speaker and one 2.5 inch HF compression driver with BI-AMP design . it have own passive filer in the LF speaker and HF speaker that it can driving by amplifier directly .
  • Page 4 SPECIFICATIONS Monster121S is the single 21 inch subwoofer speaker and it's special design for MONSTER212 speaker.it have good performance in high SPL cause the optimized cabinet structure design for the driver. The MONSTER121S adopts an ultra large power driver with a power up to 2000W in 4 omh and a voice coil of 6 inch.we recommended use amplifier with...
  • Page 5: System Configuration

    SYSTEM CONFIGURATION HF section Remove 4 pcs M4x30 screw then lock the HF pedestal Put the HF section on the pedestal; Use the M8 axle screw lock the HF section and HF pedestal; Lock the stand bar by 4 pcs M4X12 screw(it can choose the vertical angle at 0°or -6°of the HF section) Detachable hoisting ring for hanging Stacked installation...
  • Page 6 SYSTEM CONFIGURATION Dual stacked installation Accordance with the same steps of the single stack, two HF components are mounted on one of the speakers on the ground; Stacked the subwoofer; Fixed the T shape support rod(not need to tighten screw at this moment);...

This manual is also suitable for:

Monster121s
