TRAX 3
TRAX 3™ is a computer-controlled, self-diagnosing auxiliary fuel system that
automatically transfers fuel from the auxiliary tank to the main tank using
our exclusive AutoTrans
vehicle's fuel system status and the fuel levels of each tank. TRAX 3™ transfers
fuel as needed with an electric fuel pump at a rate of one gallon every three
minutes.

Fuel System Overview

The TRAX 3™ system will transfer fuel at predetermined fuel levels while the
vehicle is in use, based on the individual vehicle fuel system calibration and
size of the Transfer Flow auxiliary fuel tank. The fuel level in the main tank and
auxiliary tank will decrease at similar rates and the LCD will display the fuel
level percentages or gallons in each tank and the operational status of the
system.
When the system is not transferring fuel and all is normal, the System Indicator
(in bottom left corner of LCD), will flash on and off. When the fuel system is
transferring fuel, the message, "PUMP ON" will flash on the right side of the LCD.
If there is an issue with the fuel system, the LCD will display a Diagnostic Trouble
Code (DTC). The TRAX 3™ computer module works independent of the LCD. If
the LCD is disconnected, the computer module will still monitor and transfer fuel
normally.

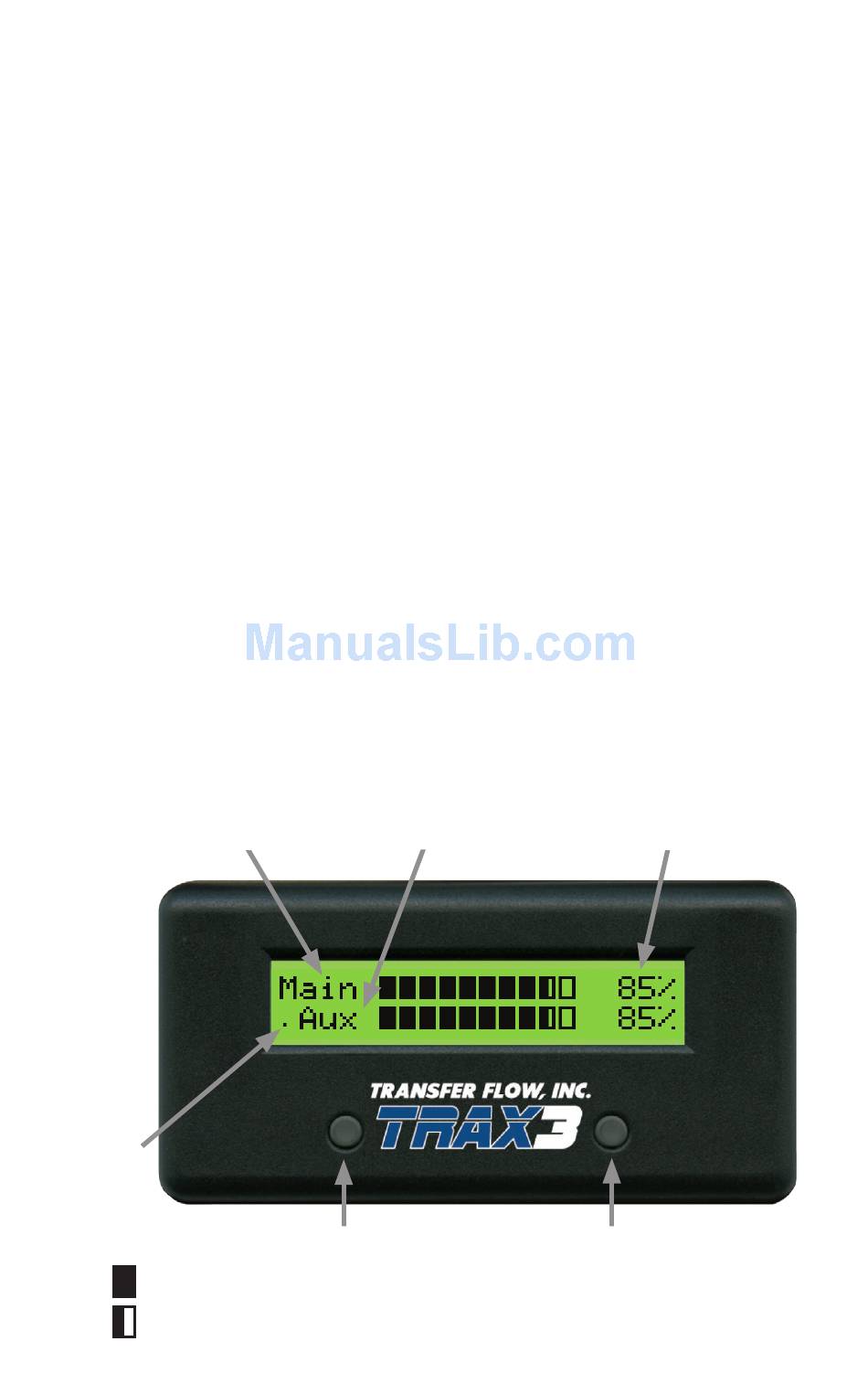

Liquid Crystal Display Overview

System
Indicator
(Flashes)
= Each black bar is equivalent to 10% fuel capacity.
= Each 1/2 black bar is equivalent to 5% fuel capacity.
Fuel Management System
™
technology. The TRAX 3™ system also monitors the
®
Main Tank Auxiliary Tank
Fuel Level
Left Button
Fuel Level
Page 1
Fuel Level Percentage
or Gallons
Right Button
