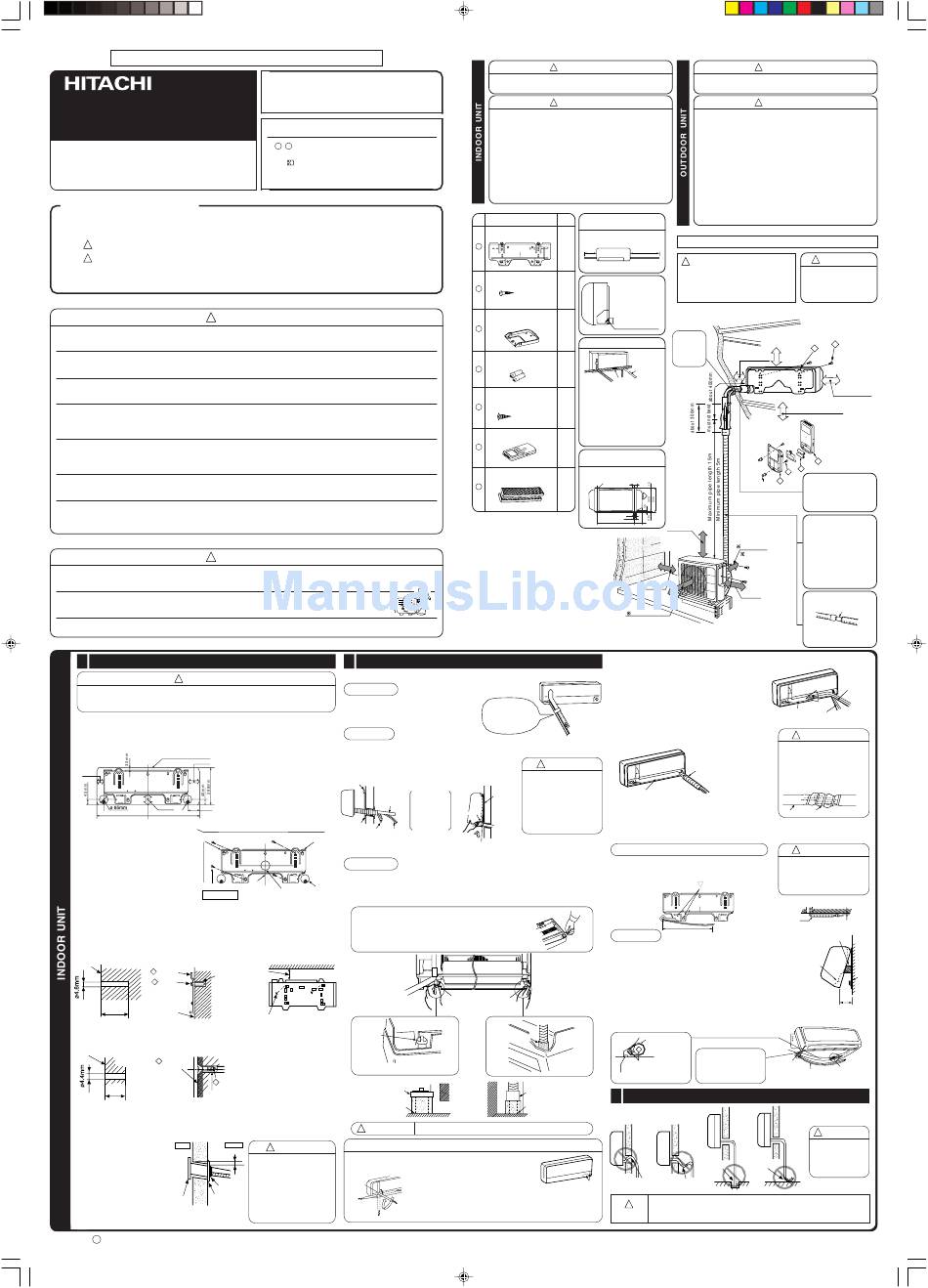

HITACHI SPLIT-UNIT AIR CONDITIONER
INSTALLATION MANUAL
Indoor Unit Outdoor Unit
RAS-13CE9 RAC-13CE9

SAFETY PRECAUTION

G Read the safety precautions carefully before operating the unit.
G The contents of this section are vital to ensure safety. Please pay special attention to the following sign.
! WARNING ........ Incorrect methods of installation may cause death or serious injury.
! CAUTION ......... Improper installation may result in serious consequence.
Be sure that the unit operates in proper condition after installation. Explain to customer the proper way of operating
the unit as described in the user's guide.
WARNING
!
G Please request your sales agent or qualified technician to install your unit. Water leakage, short circuit or fire may
occur if you do the installation work yourself.
G Please observe the instructions stated in the installation manual during the process of installation. Improper
installation may cause water leakage, electric shock and fire.
G Make sure that the units are mounted at locations which are able to provide full support to the weight of the units.
If not, the units may collapse and impose danger.
G Observe the rules and regulations of the electrical installation and the methods described in the installation manual
when dealing with the electrical work. Use wire which is specified for the air conditioner. A short circuit and fire
may occur due to the use of low quality wire or improper work.
G Be sure to use the specified wire for connecting the indoor and outdoor units. Please ensure that the connections
are tight after the conductors of the wire are inserted into the terminals. Improper insertion and loose contact may
cause over-heating and fire.
G Please use the specified components for installation work. Otherwise, the units may collapse or water leakage,
electric shock and fire may occur.
G Do not mix any coolant other than R-22 into the cooling circulation path when mounting or shifting the unit. If it
is mixed with air, the high pressure in the circulation path will rise and this may result in broken copper pipes or
faults.
!
G A circuit breaker should be installed depending on the mounting size of the unit. Without a circuit breaker, the
danger of electric shock exists.
G Do not install the unit near a location where there is flammable gas. The condensing unit may
catch fire if flammable gas leaks around it.
G Please ensure smooth flow of water when installing the drain hose.
1 Installation of Hanger, Wall Penetration and Installation of Protection Pipe
CAUTION
!
G The draining of the water container inside the indoor unit can be done from the left.
Therefore the hanger must be fixed horizontally or slightly tilted towards the side of
drain hose. Otherwise, condensed water may overflow the water container.
Direct Mounting On The Wall
G Please use hidden beams in the wall to hold the hanger.
External dimension of
indoor unit
160mm
40mm
80mm 160mm
860mm Drain Hose
Mounting
Plate
Screw for Mounting plate
Please use more
than 4 screws.
Procedures of Installation and Precautions
G Procedures to fix the hanger.
1. Drill holes on wall. 2. Push plug into the holes.
(As shown below) (As shown below)
Wall
1 Hanger
Plug
2 Screw
32mm
Wall
G Procedures to fix the holder of remote controller.
1. Drill holes on wall. 2. Push plug into the holes.
(As shown below) (As shown below)
Wall
3 Remote
Control
Holder
5 Screw
19mm
Plug
Wall Penetration and Installation of Protection Pipe
Drill a ø 65mm hole on wall
G
which is slightly tilted
Indoor
towards the outdoor side.
Drill the wall at a small angle.
G Cut the protection pipe
according to the wall
thickness.
G Empty gap in the sleeve of
WALL
protection pipe should be
Sleeve of
Protection
protection
completely sealed with putty
pipe
pipe
to avoid dripping of rain
water into the room.
< >
I699: A
RAS-13CE9/RAC-13CE9 (1) EN 1
G Carefully read through the procedures of proper
installation before starting installation work.
G The sales agent should inform customers regarding
the correct operation of installation.
Tools Needed For Installation Work
G + – Screwdriver G Measuring Tape
G Saw G ø 65mm Power Drill G Hexagonal Wrench
Key ( 4mm) G Wrench (14, 17, 19, 22mm)
G Gas Leakage Detector G Pipe Cutter
G Vinyl Tape G Pliers G Flare Tool
CAUTION
2 Installation of the Indoor Unit
VERTICALLY DOWNWARD PIPING
Preparation
Connect connecting cord.
G
Pull out the pipe, connecting cord and drain
G
hose.
Installation
The upper part of the indoor unit is hanged
G
on the hanger.
The projection at the lower part of the
G
indoor unit is hooked onto the hanger.
Hanger
Refrigerating
Pipe
Protection
Pipe
Drain Hose
Connecting
Cord
Level
HORIZONTAL PIPING
Preparation
Change of Drain Hose and Installation Procedures.
Line
G Exchange the location of drain hose and drain cap during horizontal piping as shown
Hole for
Mark
in figure below. Be sure to plug in the drain hose until the insulating material folds upon
pipe
itself.
G Please use pliers to pull out the drain cap.
(This is an easier way to remove the drain cap).
3. Fix the hanger on wall
with 4.1 x 32 screw
(As shown in figure below)
Ceiling
above 50mm
4.1 x 32 Screw
Drain cap
G Remove the cap for drain hose installation
Drain cap
Please insert
until here
CAUTION
!
HORIZONTAL & DOWNWARD PIPING – MAKING OPENINGS
Outdoor
! CAUTION
2~5mm
G During horizontal or downward piping, use a knife to cut openings as
Be sure that the wire is not
shown in figure. Then smoothen the edges of openings with a file.
in contact with any metal
in the wall. Please use the
Pipe
support
protection pipe as wire
Seal with
putty
passing through the hollow
part of the wall so as to
prevent the possibility of
Pull up the pipe after
bending downward
damaged by mouse.
THE CHOICE OF MOUNTING SITE
WARNING
!
G
The unit should be mounted at stable, non-vibratory location which
can provide full support to the unit.
CAUTION
!
G
No nearby heat source and no obstruction near the air outlet is
allowed.
G
The clearance distances from top, right and left are specified in
figure below.
G
The location must be convenient for water drainage and pipe
G Knife
connection with the outdoor unit.
G
To avoid interference from noise please place the unit and its
remote controller at least 1m from the radio, television and inverter
type fluorescent lamp.
G
To avoid any error in signal transmission from the remote controller,
please put the controller far away from high-frequency machines
and high-power wireless systems.
G
The installation height of indoor unit must be 2.3m or more in a
non public area.
Names of Indoor Components
The Length of Indoor Unit
No. Item Qty
Hanger
about
1
1
0.9m
Screw for Hanger
6
2
( 4 . 1 x 3 2 )
Holder for Remote
Controller
1
3
AAA Size Battery
4 2
There
Screw for holder of
allowed, namely, horizontally
Remote Controller
perpendicular to the unit,
2
5
vertically down from right,
( 3 . 1 x 1 6 )
horizontally out from right and
horizontally out to left.
Don't
Remote Controller
downward at the left of the unit.
1
6
Dimension of Mounting Stand
(unit : mm)
Purifying Filter
mounting stand
7
1
Connecting cords,
pipe and drain hose
must be tied together
with Vinyl tape.
CAUTION
!
Please pull the lower part
of the indoor unit
outwards to check if the
Hanger
Lift the body
unit is hooked onto the
of the unit
hanger. Improper
upwards and
Projection
then force
installation may cause
it downwards.
vibration and noise.
Hook
Drain cap Drain hose
Drain hose
Drain hose
Please insert
until here
Condensed water may leak out if not inserted properly.
Openings
G Transform the piping while holding down the lower portion of
pipe-support by hand.
24/3/05, 12:56 PM
(Please note the following matters and obtain permission from customer before installation).
WARNING
!
G
The outdoor unit must be mounted at a location which can sup-
port heavy weight. Otherwise, noise and vibration will increase.
CAUTION
!
G
Do not expose the unit under direct sunshine or rain. Besides,
ventilation must be good and clear of obstruction.
G
The air blown out of the unit should not point directly to animals
or plants.
G
The clearances of the unit from top, left, right and front are specified
in figure below. At least three of the above sides must be open
air.
G
Be sure that the hot air blown out of the unit and noise do not
disturb the neighbourhood.
G
Do not install at a location where there is flammable gas, steam,
oil and smoke.
G
The location must be convenient for water drainage.
G
Place the outdoor unit and its connection wire at least 1m away
from the antenna or signal line of television, radio or telephone.
This is to avoid noise interference.
G
Do not install outdoor unit facing strong wind direction. It may
damage the fan motor.
Connecting Cord
Figure showing the Installation of Indoor and Outdoor Unit.
about 1.6m
CAUTION
!
In case the pipe length is more than
8m, add refrigerant R22 at 20 grams
per every meter exceeds. However,
pipe length shall not exceed 15m.
Cut away shaded
portion, and finish
the edge of the
opening so that
20
there is no burr.
Be sure to
Direction of Piping completely above 50mm
seal any
gap with
above 100mm
Horizontally putty.
perpendicular
to the unit
Connection
are 4 directions
form the piping
of the outdoor unit
57
Plug
12
35
500
120
above 200mm
)
( above 50mm when
installed on the
above 100mm
ceiling of balcony
give clearance as
wide as possible
above 100mm
above 200mm
above 700mm
INSTALLATION OF REFRIGERATING PIPES AFTER CONNECTION
The refrigerating pipes should be adjusted to fit
G
into the hole on the wall and then ready for further
connection.
The terminals of 2 connected pipes must be covered
G
with insulator used for terminal connection. Then
the pipes are wrapped with insulation pipe.
G Connect the connecting cord.
G After adjustment, fit the connecting cord and pipes
into the space available under the indoor unit.
Insulation pipe
Pipe
Insulation pipe (must be wrapped with
vinyl tape at every 120mm).
THE CONNECTION OF REFRIGERATING PIPE DURING THE
INSTALLATION OF INDOOR UNIT
Preparation To Install Refrigerating Pipes
Refrigerating pipes and connecting cord must be
G
tied together.
The front part of the refrigerating pipes are
G
at locations marked with " " symbol.
Please bend at a small
radius to form an arc
0.70m
Installation
Hang the indoor unit onto the hanger. Use the temporary stand
at the back of the indoor unit to push its lower part 15cm
forwards.
Place the drain hose through the hole on the wall.
G
Insulate the connecting portion of refrigerating pipe with
G
insulator.
G Wrap the refrigerating pipes with insulation pipe.
G Connect the connecting cord.
G After adjustment, the connecting cord and refrigerating pipes
are placed into the space available under the cooling unit.
G The projection of indoor unit must hook to the hanger.
Heat insulation
Protection
pipe
Pull this to the front
during the connection
Refrigerating pipes
of refrigerating pipes
Connecting cord
to ease task.
3 Installation of Drain Hose
Condensed
water pond
Ditch
Bending Condensed
upwards water pond
You are free to choose the side (left or right) for the installation of drain
!
hose. Please ensure the smooth flow of condensed water of the indoor
CAUTION
unit during installation. (Carelessness may result in water leakage.)
CAUTION
!
•
The installation height
of indoor unit must be
2.3m or more in a
non public area.
2
1
above 100mm
2,300mm or more
6
4
5
The indoor piping should be
3
insulated with the enclosed
insulation pipe. (If the
insulator is insufficient,
please use commersial
products).
G The difference in height
between the indoor and
outdoor unit should be
kept below 5m.
G The connecting pipe, no
matter big or small,
should all be insulated
with insulation pipe and
then wrapped with vinyl
tape. (The insulator will
deteriorate if it is not
wrapped with tape).
The connection of insulated
drain hose.
inner diameter ø 16mm
Please use insulated drain
hose for the indoor piping
(commercial product).
Drain hose
Pipe
Connecting cord
! CAUTION
The rubber strap used for
G
fixing the insulator should
not be tied with great force.
Otherwise, this will damage
heat insulation and causes
water condensation.
Pipe Rubber strap tied with great force
CAUTION
!
G Please fix in the plastic
core after flaring to avoid
plastic chips entering the
pipes.
below
5mm
Temporary stand
Projection
Hook
about 15cm
pipe
Drain hose
Connected
section
Connecting cord
CAUTION
!
Be sure that the
drain hose is not
loosely connected
or bent.
