DivioTec NDR154 Quick Installation Manual

IP CAMERA

Quick Installation Guide

NDR154P
(IR Outdoor Motorized Vandal Dome Camera)
Series V1.0
PRECAUTIONS
Do not use the camera in extreme temperature
l
conditions.
o o
Please use the camera within -20 C to 50 C
Air vent is required at high temperature
Do not use or store the camera in humid environment
l
It may cause poor image quality.
Do not use the camera in unstable lighting conditions.
l
Inconsistent lighting or flickering may cause poor image.
Never use the camera close to gas or oil leak.
l
It may not operate properly.
Do not disassemble the camera.
l
There is no user serviceable part inside.
Do not drop the camera or apply force on it.
l
It may cause a malfunction.
Never face the camera to strong light for long periods
l
of time.
It may damage the CMOS sensor.
REMARK: External power supply cannot be used with POE
simultaneously, or it will damage the camera.
When this camera is installed near wireless communication devices that
emit strong electromagnetic field, irregularity such as noise may appear in
the image.
1. OPEN-CASE INSPECTION
1.1 Check step
When a user receives an IP camera, Please check the equipment
appearance without obvious damage. Product packaging use
protective material to deal with most accidental impact in the
transport process.
Please open the product outer packing,Check attachment provided
product is complete,See List 1 below accessories package for
inspection.
1.2 Standard accessories
Please make sure the item is consistent with the listing when
open the product outer packing,Detailed list please see the table
below,Actual configuration, please refer to specific products.
List 1 Accessories list
Name Quantity
IP camera 1
Quick installation guide 1
Accessory pack 1

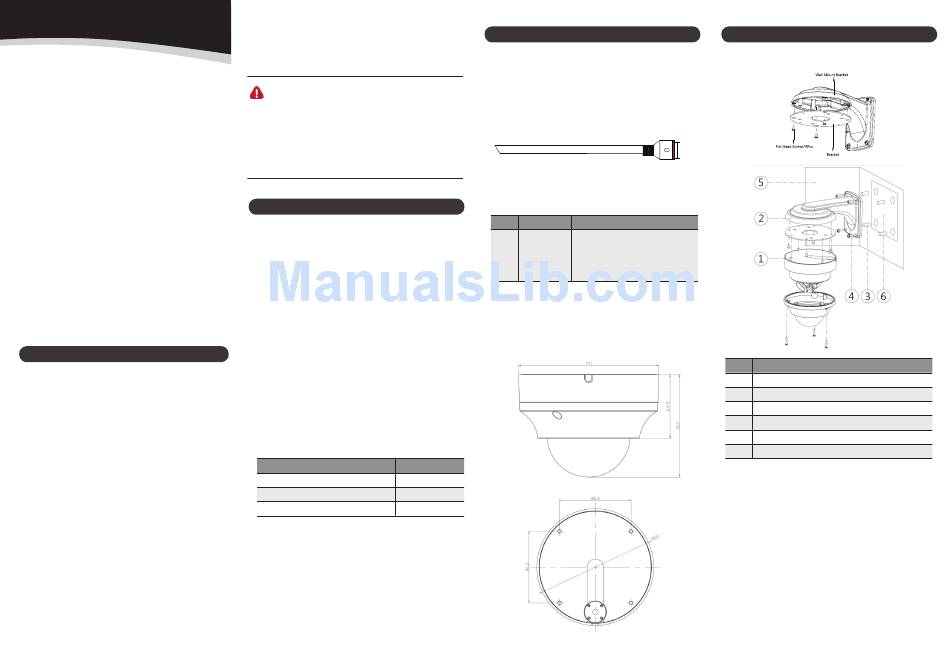

2. PRODUCT STRUCTURE
2.1 Cable function
Picture 1 Cable function
List 2 Cable function of table
NO. Name Functional description
Connect to a router or switch on your
network using RJ45 Ethernet cable
2 LAN(RJ45) (Cat5e or better). 100Mhz connection.
PoE supported (class 3 PoE switch
required).
2.2 Dimensions
Picture 2 Dimensions
3. EQUIPMENT INSTALLATION
Picture 3 Equipment installation diagram (1)
NO. Name
1 Mounting Screws
2 Wall mount bracket(ACB-02) W1 kit
3 Expansion Bolts
4 Mounting Screws
5 Wall or Ceiling place
6 Installation Sticker
Description: The bracket on the metope must be withstand at least 3X
the total weight of bracket and camera.
3.1 Use the Flat Head Screws 4Pcs fixed Wall mount
bracket & Bracket
3.2 Put installation sticker on the surface (Wall or Ceiling)
where need to be installed.
3.3 Take out screws of bracket and put into expansion bolts
to fix bracket on the surface (Wall or Ceiling).
3.4 Remove base of camera and camera. Screw to fix the
base on the bracket.
3.5 Put camera back to fix with base on the bracket.
