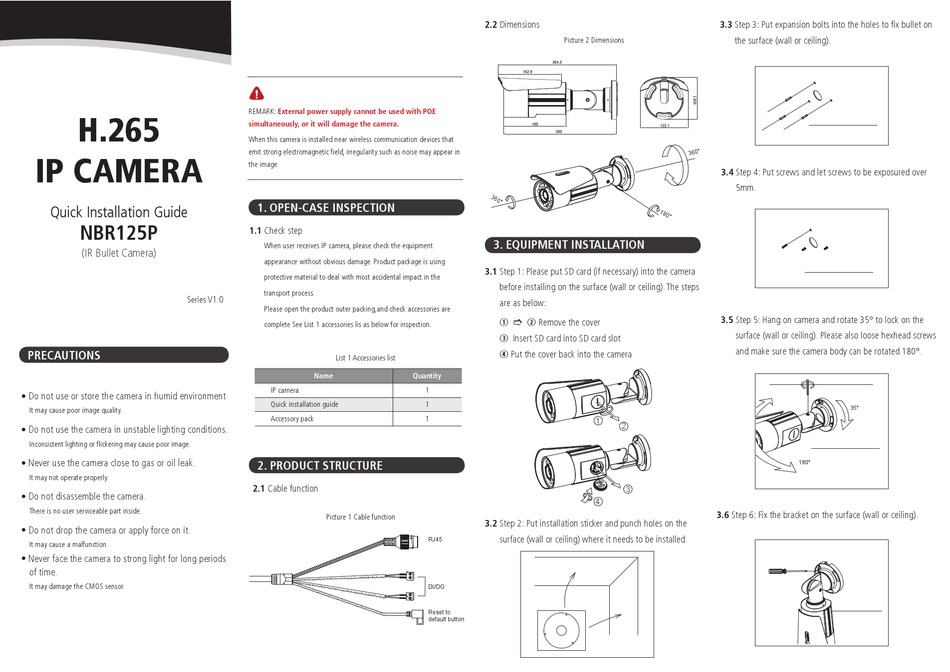

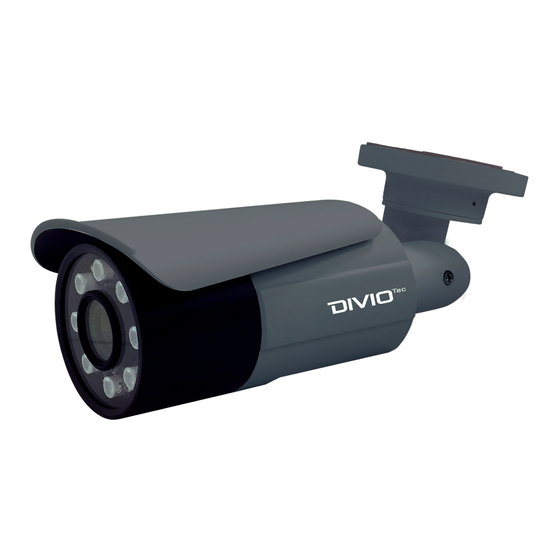

DivioTec NBR125P Quick Installation Manual

H.265
IP CAMERA

Quick Installation Guide

NBR125P
(IR Bullet Camera)
Series V1.0
PRECAUTIONS
Do not use or store the camera in humid environment
●
It may cause poor image quality.
Do not use the camera in unstable lighting conditions.
●
Inconsistent lighting or flickering may cause poor image.
Never use the camera close to gas or oil leak.
●
It may not operate properly.
Do not disassemble the camera.
●
There is no user serviceable part inside.
Do not drop the camera or apply force on it.
●
It may cause a malfunction.
Never face the camera to strong light for long periods
●
of time.
It may damage the CMOS sensor.
REMARK: External power supply cannot be used with POE
simultaneously, or it will damage the camera.
When this camera is installed near wireless communication devices that
emit strong electromagnetic field, irregularity such as noise may appear in
the image.
1. OPEN-CASE INSPECTION
1.1 Check step
When user receives IP camera, please check the equipment
appearance without obvious damage. Product package is using
protective material to deal with most accidental impact in the
transport process.
Please open the product outer packing,and check accessories are
complete See List 1 accessories lis as below for inspection.
List 1 Accessories list
Name Quantity
IP camera 1
Quick installation guide 1
Accessory pack 1
2. PRODUCT STRUCTURE
2.1 Cable function
Picture 1 Cable function
2.2 Dimensions
Picture 2 Dimensions
304.5
162.9
160
290
3. EQUIPMENT INSTALLATION
3.1 Step 1: Please put SD card (if necessary) into the camera
before installing on the surface (wall or ceiling). The steps
are as below:
q ] w
Remove the cover
Insert SD card into SD card slot
e
Put the cover back into the camera
r
1
1
4
4
3.2 Step 2: Put installation sticker and punch holes on the
surface (wall or ceiling) where it needs to be installed.
RJ45
DI/DO
Reset to
default button
3.3 Step 3: Put expansion bolts into the holes to fix bullet on
the surface (wall or ceiling).
122.1
3.4 Step 4: Put screws and let screws to be exposured over
5mm.
3.5 Step 5: Hang on camera and rotate 35° to lock on the
surface (wall or ceiling). Please also loose hexhead screws
and make sure the camera body can be rotated 180°.
2
2
3
3
3.6 Step 6: Fix the bracket on the surface (wall or ceiling).
35°
35°
180°
180°
35°
35°
180°
180°
