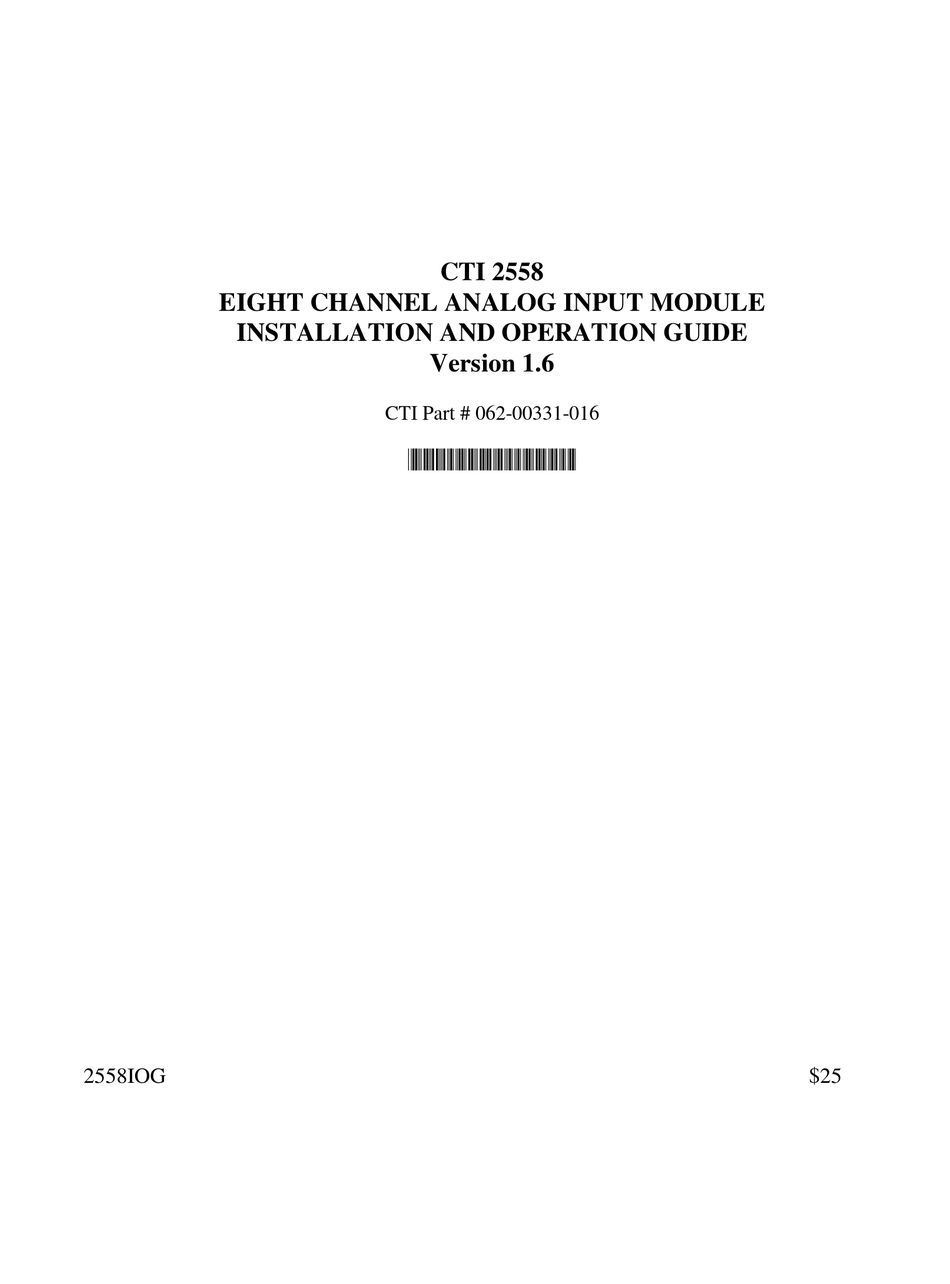

- Page 1 CTI 2558 EIGHT CHANNEL ANALOG INPUT MODULE INSTALLATION AND OPERATION GUIDE Version 1.6 CTI Part # 062-00331-016 *062-00331-012* 2558IOG...
- Page 3 Copyright © 2005 Control Technology Inc. All rights reserved. This manual is published by Control Technology Inc., 5734 Middlebrook Pike, Knoxville, TN 37921. This manual contains references to brand and product names which are tradenames, trademarks, and/or registered trademarks of Control Technology Inc. and Siemens AG. Other references to brand and product names are tradenames, trademarks, and/or registered trademarks of their respective holders.
- Page 5 Chapter 1 provides a description of the module. Chapter 2 covers installation and wiring. Chapter 3 is a guide to troubleshooting. Appendix A details compatibility between the 2558 and the Siemens505-6108-A and 505-6108-B. The Model 2558 8-Channel Analog Input Module CTI 2558 Installation and Operation Guide...
- Page 7 Notes alert the user to special features or procedures. CAUTION: Cautions alert the user to procedures that could damage equipment. WARNING: Warnings alert the user to procedures that could damage equipment and endanger the user. CTI 2558 Installation and Operation Guide...
-
Page 9: Table Of Contents
CHAPTER 3. TROUBLESHOOTING .................. 23 HARDWARE SPECIFICATIONS ..................25 APPENDIX A. COMPATIBILITY WITH SIEMENS 505-6108A/B ......27 APPENDIX B. JUMPER SETTINGS LOG SHEET ............29 LIMITED PRODUCT WARRANTY ................... 31 REPAIR POLICY ........................33 CTI 2558 Installation and Operation Guide... - Page 11 TABLE OF FIGURES Figure 1.1 CTI 2558 Front Panel ......................1 Figure 1.2 13 Bit Word Input to the PLC from the Module ..............3 Figure 1.4 13 Bit Overrange Word Value (Unipolar) ................5 Figure 1.5 13 Bit Underrange Word Value (Unipolar) ................. 6 Figure 1.6 13 Bit Voltage Input Limits (Bipolar) .................
-
Page 13: Chapter 1. Overview
CHAPTER 1. OVERVIEW 1.0. Product Summary The CTI 2558 Eight Channel Analog Input Module is a member of Control Technology’s family of I/O modules compatible with the 505 programmable controllers. It is designed to SIMATIC® translate an analog input signal into an equivalent digital word which is then sent to the programmable controller (PLC). -
Page 14: Asynchronous Operation
(see Figure 2.2 Configuration Jumper Board Locations). Jumper JP40 when enabled will configure the module such that all inputs will be scaled for 1-5VDC or 4-20mA operation. No further relay ladder logic is required for input processing. CTI 2558 Installation and Operation Guide... -
Page 15: Digital Word Map: 13 Bit Mode
WX = (10 x 32000) 20 = 16000 Note: Bit 15 is always returned as a zero, and bit 16 is employed as an over/underrange bit. Consequently, returned data values change by four. CTI 2558 Installation and Operation Guide... -
Page 16: Effect Of Out-Of-Range Input Signals: 13 Bit Mode
This level is different for every channel. In Figures 1.3 and 1.6, the limits for the overrange and underrange values are the minimum limits for a given channel. The actual limits for an individual channel may be greater. CTI 2558 Installation and Operation Guide... -
Page 17: Figure 1.4 13 Bit Overrange Word Value (Unipolar)
PLC for a number of counts before the underrange bit is set. Figure 1.3 13 Bit Voltage Input Limits (Unipolar) Figures 1.4 and 1.5 show the binary values of typical overrange and underrange conditions for Unipolar mode. Figure 1.4 13 Bit Overrange Word Value (Unipolar) CTI 2558 Installation and Operation Guide... -
Page 18: Figure 1.5 13 Bit Underrange Word Value (Unipolar)
Figure 1.6 13 Bit Voltage Input Limits (Bipolar) Figures 1.7 and 1.8 show the binary values of typical overrange and underrange conditions for Bipolar Mode. Figure 1.7 13 Bit Overrange Word Value (Bipolar) CTI 2558 Installation and Operation Guide... -
Page 19: Resolution: 13 Bit Mode
5 counts out of 32000 as a result of the multiplication and division of the incoming data word. The chart below shows the corresponding input resolution per step for each of the input configuration modes: Figure 1.9 Input Resolution: 13 Bit CTI 2558 Installation and Operation Guide... -
Page 20: Digital Word Map: 16 Bit Mode
WX = (7.5 x 32000) 10 = 24000 Digital Word (WX) = (Input current x 32000) 20 mA 0 to +20mA range example: 10mA input WX = (10 x 32000) 20 = 16000 CTI 2558 Installation and Operation Guide... -
Page 21: Effect Of Out-Of-Range Input Signals: 16 Bit Mode
The underrange capability of any channel in Unipolar Mode may produce a negative value to the PLC for a number of counts before the underrange code is produced. CTI 2558 Installation and Operation Guide... -
Page 22: Figure 1.11 16 Bit Voltage Input Limits (Unipolar)
In Bipolar Mode signals above or below the upper and lower limits in the -5 to +5 VDC or -10 to +10 VDC range are translated to a digital word and also utilize the overrange and underrange values. CTI 2558 Installation and Operation Guide... -
Page 23: Figure 1.14 16 Bit Voltage Input Limits (Bipolar)
Figure 1.14 16 Bit Voltage Input Limits (Bipolar) Figures 1.15 and 1.16 show the binary values of typical overrange and underrange conditions for Bipolar Mode. Figure 1.15 16 Bit Overrange Word Value (Bipolar) Figure 1.16 16 Bit Underrange Word Value (Bipolar) CTI 2558 Installation and Operation Guide... -
Page 24: Resolution: 16 Bit
1 count per step 32000 counts full scale = 1/32000 The chart below shows the corresponding input resolution per step for each of the input configuration modes: Figure 1.17 Input Resolution: 16 Bit CTI 2558 Installation and Operation Guide... -
Page 25: Chapter 2. Installation
Avoid placing low voltage wire parallel to high-energy wire (if the two wires must meet, cross them at a right angle) • Avoid bending the wire into sharp angles • Use wireways for wire routing • Avoid placing wires on any vibrating surface CTI 2558 Installation and Operation Guide... -
Page 26: Unpacking The Module
Always use this bag for protection against static damage when the module is not inserted into the I/O backplane. WARNING: Ensure that the power supply is turned OFF before connecting the wires to the I/O base. CTI 2558 Installation and Operation Guide... -
Page 27: Configuring The Module
For each input channel operating in voltage mode, set the corresponding Voltage Range Jumper to “5V” for 0 to +5V or –5 to +5V input range or “10V” for 0 to +10V or –10 to +10V input range. As shipped, the 2558 is in “5V” range. CTI 2558 Installation and Operation Guide... -
Page 28: Figure 2.1 Shipping Jumper Configuration Locations
JP33 JP22 JP21 JP23 JP34 Offset Digital Scaling Jumper Filtering Jumper Compatibility Jumper Channels Jumper Position Jumper Position Mode Jumper Position JP40 DISABLED JP25 ENABLE JP26 13 BIT Figure 2.1 Shipping Jumper Configuration Locations CTI 2558 Installation and Operation Guide... -
Page 29: Figure 2.2 Configuration Jumper Board Locations
“EN” position; to disable, set to the “DIS” position. Since many analog input signals contain noise, CTI recommends using digital filtering unless maximum response time is required. As shipped, digital filtering is enabled for all 8 analog inputs. CTI 2558 Installation and Operation Guide... - Page 30 “COM” (common) position. To isolate individual channels, choose the “ISO” (isolated) position. As shipped, all 8 channels are in “COM” (common) mode. 2.3.9. Jumper Settings for Future Reference See Appendix B. Jumper Settings Log Sheet to record any changes to the module’s jumper settings. CTI 2558 Installation and Operation Guide...
-
Page 31: Inserting The Module Into The I/O Base
To assign an input to a specific channel, locate the appropriate channel position on the screw terminal connector as shown in the following figure: Figure 2.3 Screw Terminal Connector Wiring CTI 2558 Installation and Operation Guide... - Page 32 2.5.3. Connecting the Shield Wiring Control Technology Inc. recommends that all wires be shielded twisted pair with a foil wrap shield and a separate drain wire and that they be installed in a metallic conduit. Use Belden cable 8761 or equivalent which contains a foil wrap shield and a separate drain wire.
-
Page 33: Installing The Screw Terminal Connector
2.6. Installing the Screw Terminal Connector When all the input signal wires are connected to the screw terminal connector, carefully install the connector on the front of the module. Figure 2.5 Input Connector Assembly 2.7. Checking Module Operation CTI 2558 Installation and Operation Guide... -
Page 34: Figure 2.6 Example I/O Configuration Chart
If the line is blank or erroneous, re-check the module to ensure that it is firmly seated in the slots. Generate the PLC memory configuration chart again. If the line is still incorrect, contact your local distributor or CTI at 1-800-537-8398 for further assistance. CTI 2558 Installation and Operation Guide... -
Page 35: Chapter 3. Troubleshooting
When it is inconvenient to visually check the status indicator, use the TISOFT “Display Failed I/O” or “Show PLC Diagnostics” support functions. If after consulting the chart above, you are unable to diagnose or solve the problem, contact your local distributor or CTI at 1-800-537-8398 for further assistance. CTI 2558 Installation and Operation Guide... -
Page 37: Hardware Specifications
Input Protection: Input ESD Protection: 20,000V, IEC 1000-4-2, level 4 Overrange Protection: +/- 300VDC Isolation: 1500VDC channel-to-PLC Module Size: Single wide Backplane Power Consumption: 3.0 Watts (maximum) Operating Temperature: 0° to 60°C (32° to 140°F) CTI 2558 Installation and Operation Guide... - Page 38 -40° to 85°C (-40° to 185°F) Humidity: 5% to 95% (non-condensing) Agency Approvals Pending: UL, ULC, FM (Class 1, Div 2) CE Shipping Weight: 1.5 lb. (0.68 Kg) Specifications subject to change without notice. CTI 2558 Installation and Operation Guide...
-
Page 39: Appendix A. Compatibility With Siemens 505-6108A/B
Module setup Since the CTI 2558 allows for both Unipolar and Bipolar setup, the module does have a slightly different module setup. See Chapter 2.3 Configuring the Module for Operation to determine the details in module setup. - Page 40 CTI 2558 Installation and Operation Guide...
-
Page 41: Appendix B. Jumper Settings Log Sheet
Digital Scaling Jumper Filtering Jumper Compatibility Jumper Channels Jumper Position Jumper Position Mode Jumper Position JP40 JP25 JP26 Record the configuration jumper settings on this log for future reference. Make additional copies if necessary. CTI 2558 Installation and Operation Guide... -
Page 43: Limited Product Warranty
CTI. Control Technology Inc. reserves the right to make changes to the Product in order to improve reliability, function, or design in the pursuit of providing the best possible Product. CTI assumes no responsibility for indirect or consequential damages resulting from the use or application of this equipment. - Page 44 CTI 2558 Installation and Operation Guide...
-
Page 45: Repair Policy
Failure to observe static control precautions may void the warranty. For additional information on static control precautions, contact CTI's office at 1-800-537-8398. CTI 2558 Installation and Operation Guide...
