Sony MDR-IF245RK Operating Instructions

Cordless Stereo

Headphone System

Operating Instructions
©2013 Sony Corporation Printed in China
MDR-IF245RK
Checking the included Features
items
Thank you for purchasing the Sony MDR-IF245RK Cordless Stereo
Headphone System. Before operating the unit, please read this
manual thoroughly and retain it for future reference.
Some features are:
– Lightweight headphones for long time listening comfort.
– Approx. 28 hours playback with supplied Ni-MH rechargeable
battery. AAA alkaline batteries (not supplied) can also be used
as alternative power.
– Battery is automatically charged by placing the headphones
on the transmitter.
Transmitter TMR-IF245R (1)
– 40 mm driver units for powerful, expressive sound.
–
Muting function reduces noise disturbance.
– Self-adjusting headband mechanism eliminating the need for
headband adjustment.

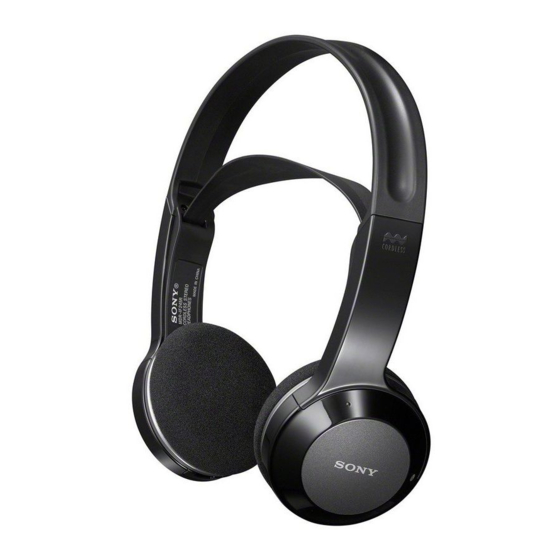

Headphones MDR-IF245R (1)
– Up to 8 meters (26 feet) reception range.
AC adaptor (1)
Connecting cable (stereo mini
plug  pin plug × 2), 1 m (1)
Rechargeable nickel-metal
hydride battery
(BP-HP550-11) (1)
WARNING
Note
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
This equipment has been tested and found to comply with the
To reduce the risk of fire or electric shock, do not expose this limits for a Class B digital device, pursuant to Part 15 of the FCC
apparatus to dripping or splashing, and do not place objects Rules. These limits are designed to provide reasonable
filled with liquids, such as vases, on the apparatus. protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
Do not expose the batteries (battery pack or batteries installed)
radio frequency energy and, if not installed and used in
to excessive heat such as sunshine, fire or the like for a long time.
accordance with the instructions, may cause harmful
interference to radio communications.
To avoid electrical shock, do not open the cabinet. Refer
However, there is no guarantee that interference will not occur
servicing to qualified personnel only.
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
Do not install the appliance in a confined space, such as a
determined by turning the equipment off and on, the user is
bookcase or built-in cabinet.
encouraged to try to correct the interference by one or more of
As the main plug of AC power adaptor is used to disconnect the the following measures:
AC power adaptor from the mains, connect it to an easily
– Reorient or relocate the receiving antenna.
accessible AC outlet. Should you notice an abnormality in it, –
Increase the separation between the equipment and receiver.
disconnect it from the AC outlet immediately.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Excessive sound pressure from earphones and headphones can
– Consult the dealer or an experienced radio/ TV technician for
cause hearing loss.
help.
AC adaptor is not disconnected from the mains as long as it is
connected to the AC outlet, even if the unit itself has been
turned off.
The nameplate is located on the bottom exterior.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
How to use
1
Insert the supplied rechargeable battery BP-HP550-11 into the left housing of the headphones.
Observe the correct polarity when installing battery.
Insert the 
end first.
Rechargeable nickel-metal hydride
battery BP-HP550-11 (supplied)
4-429-158-31(1) 2
Connect the AC adaptor.
To AC
outlet
4
Connect the A/V component, following hookup  or  below.
Raise the volume level on the connected A/V component within the range where the sound is not distorted.
 Using the headphone jack of the A/V component
R (red) L (white)
 Using the audio out (L/R) jacks of the A/V component
Stereo mini plug
If you want to receive audio on the headphones while at the same time hearing audio from the television speakers:
connect the transmitter to your Cable Box/Satellite Box rather than your television.
5
Wear the headphones.
Before listening
To reduce the risk of hearing damage, first lower the volume.
Tactile dot
Lower volume
About the infrared sensors
The infrared sensors of the headphones are located as illustrated below.
–
Use the transmitter in a position facing the headphones.
– If the infrared sensors of one housing are covered by your hands (when adjusting the
volume, etc.), the muting function may be activated to reduce noise caused by
obstruction of the infrared rays. To restore sound, move nearer the transmitter, or
orient the sensor of the uncovered housing toward the transmitter.
3
Charge the headphones.
(Red) (Off )
Complete when
indicator turns off.
Contact
points
Contact
pins
Headphone jack
(Stereo mini jack)
Stereo mini
plug
TV, Digital music player, etc.
Audio out
(L/R) jacks
L (white)
R (red)
Stereo system, Blu-ray Disc player, DVD player, TV*, etc.
* In case of no headphone jack.
6
Start playback of the A/V component.
Raise the volume level on the connected A/V component within the range where the sound is not
distorted.
Tactile dot
Up Down
After use If no signal or low signal is
input for about 10 minutes
Take off the headphones, then turn off the power.
When no signal is input for about 10 minutes, the
transmitter turns off automatically*. The infrared
emitters of the transmitter also turn off. The
transmitter restarts after receiving an audio signal
again.
The transmitter may also turn off if low signal is
input for about 10 minutes. In this case, raise the
volume of the connected A/V component within
the range where the sound is not distorted, then
lower the volume of the headphones.
* If signal noise is output from the connected A/V
component, the transmitter may not turn off,
even when no audio signal is input.
Effective area of the Using the headphones
transmitter with separately-sold dry
batteries
The illustration below shows the approximate area covered by
the infrared rays emitted from the transmitter when you wear
the headphones and face the transmitter.
Commercially available (LR03 (size AAA)) dry batteries can also
be used to power the headphones. Install two batteries in the
Top view Approx. 3 m (10 ft)
same manner as described in step 1 of "How to use. "
When dry batteries are installed, the battery charge function is
not activated.
Battery life
Approx. 8 m
Battery Approx. usage time
(26 ft)
Sony alkaline battery LR03
50 hours
(size AAA)
Transmitter
1) at 1 kHz, 0.1 mW + 0.1 mW output
90°
2) Time may vary, depending on the temperature or conditions
of use.
Side view Approx. 3 m (10 ft) Note
Do not carry a dry battery together with coins or other metallic
objects. It can generate heat if the positive and negative
terminals of the battery are accidentally come into contact with
metallic objects.
Approx. 8 m
(26 ft)
Tips for connection
Transmitter
– Do not connect to the AUDIO IN 1 and AUDIO IN 2 jacks at the
90°
same time. If you connect two A/V components to both jacks
at the same time, both of the audio signals may result in mixed
– If you use the headphones at too great a distance from the
output.
transmitter, you may hear a hissing noise, and if there is an
– When you connect the connecting cable directly to an
object between the headphones and the transmitter, sound
earphone jack (monaural mini jack), the audio signal may not
may be interrupted. These phenomena are inherent in infrared
be output through the right channel.
ray communication and not a malfunction.
– Do not cover the infrared sensors with your hands or hair.
– When you use the headphones inside the area in the
Tips for volume setting
illustration above, the transmitter can be placed in front,
behind or by the side of you. However, depending on
circumstances, the area covered by the infrared rays may be – If you connect the transmitter to the headphone jack of the A/
smaller than illustrated. V component, set the volume of the A/V component as high as
– The noise you may hear through the headphones may vary possible but not so high that the audio signal becomes
depending on the transmitter position and room conditions. It distorted.
is recommended that you place the transmitter in a location – When watching videos, be careful not to raise the volume too
that produces the clearest sound. high in quiet scenes. You may hurt your ears when a loud
– Do not use this system in areas exposed to direct sunlight or scene is played.
other strong light. The sound may be interrupted.
– Plasma displays may interfere with normal operation of this
system. Replacing the earpads
– The brightness of the infrared emitters may not be uniform;
however, this is not a malfunction.
The earpads are replaceable. If the earpads become dirty or
About muting function
worn out, replace them as illustrated below. The earpads are not
commercially available. You can order replacements from the
If the infrared rays are obstructed, or the headphones are used
store where you purchased this system, or at your nearest Sony
outside their effective range, noise will increase and sound will
dealer.
become hard to hear. In such a case, this function mutes any
sound from the headphones to avoid potential ear damage as a
result of noise. Sound is automatically restored when you move
nearer the transmitter or remove the obstruction.

Tips for charging
Charge supplied battery first
1
Remove the old earpad
The supplied rechargeable nickel-metal hydride battery is not
by pulling it off.
charged from the first time you use it. Be sure to charge them
before use.
About auto charge function
Troubleshooting
Placing the headphones on the transmitter automatically turns
them off, then charging starts. This eliminates the need for If you run into any problems using this system, use the following
turning on/off every time you wear and take off the headphones. checklist. Should any problem persist, consult your nearest Sony
dealer.
If CHG indicator is not lit
No sound/Low sound
Check if the right and left headphones are rested on the
transmitter correctly. Take off the headphones and place them – Turn on the headphones.
on the transmitter again so that the headphones' contact points – Check the connection of the A/V component or the AC
meet the transmitter's contact pins. adaptor.
– Check that the A/V component is turned on.
Charging and usage time
–
If you connect the transmitter to an A/V component using the
headphone jack, raise the volume level on the connected A/V
Depending on the remaining battery status, it takes approx. 30
component within the range where the sound is not distorted.
minutes to 7 hours to recharge.
– Check that the infrared sensors of the headphones are not
Approx. charging time Approx. usage time covered with your hands or hair.
1)
– Check that there is no object between the transmitter and the
7 hours
2) 28 hours 3)
headphones.
– Use the headphones near the transmitter, or change the
1) at 1 kHz, 0.1 mW + 0.1 mW output
position of the transmitter.
2) hours required to fully charge an empty battery
– Charge the supplied rechargeable battery, or replace dry
3) Time may vary, depending on the temperature or conditions
batteries with new ones. If the POWER indicator is still off after
of use.
charging, take the headphones to a Sony dealer.
To recharge supplied battery after use – Raise the headphone volume.
Distorted or intermittent sound
Place the headphones on the transmitter after use. The CHG
indicator lights up, then charging starts. (sometimes with noise)
When charging is complete, there is no need to remove the
– Use the headphones near the transmitter, or change the
headphones from the transmitter.
position of the transmitter.
Remaining battery
– If you connect the transmitter to an A/V component using the
headphone jack, lower the volume level on the connected A/V
To check the remaining battery charge of the headphones, turn
component within the range where the sound is not distorted.
on the headphones, and check the POWER indicator. The battery
– Charge the supplied rechargeable battery, or replace dry
is still serviceable when the indicator lights up red.
batteries with new ones. If the POWER indicator is still off after
Charge the headphones if the POWER indicator turns off, dims,
charging, take the headphones to a Sony dealer.
flashes, or the sound becomes distorted or noisy.
Loud background noise
Notes
–
Use the headphones near the transmitter, or change the
– Insert the AC adaptor plug firmly.
position of the transmitter. (As you move away from the
– Be sure to use the supplied AC adaptor. Using AC adaptors
transmitter, more noise is likely to be heard. This is inherent in
with different plug polarity or other characteristics can cause
infrared ray communication and not a malfunction.)
product failure.
–
Check that there is no object between the transmitter and the
headphones.
Unified
– Check that the infrared sensors on the headphones are not
polarity plug
covered with your hands or hair.
– The battery capacity may decrease if the headphones are – If you use the headphones by a window where the sunlight is
too strong, draw the curtains/blinds to shut out the direct
turned on and placed on the transmitter with the AC adaptor
disconnected. sunlight, or use the headphones away from the sunlight.
– If you connect the transmitter to an A/V component using the
– The transmitter automatically turns off while charging the
battery. headphone jack, raise the volume level on the connected A/V
component within the range where the sound is not distorted.
– This system is designed to charge only the supplied
rechargeable battery BP-HP550-11 for safety. Note that other – Charge the supplied rechargeable battery, or replace dry
batteries with new ones. If the POWER indicator is still off after
types of rechargeable battery cannot be charged with this
charging, take the headphones to a Sony dealer.
system.
–
– If dry batteries are installed, they cannot be charged. If you have another transmitter, check if more than one
– transmitters are used at the same time. Turn off other
Do not attempt to use the supplied rechargeable battery BP-
HP550-11 for other components. It is for use with this system transmitter or move to a place outside the range of this
transmitter.
only.
– Charge in an environmental temperature of between 5 °C and
The sound cuts off
35 °C (between 41 °F and 95 °F).
– When the battery life reduces to half, this may be the end of –
The transmitter turns off if no signal or low signal is input for
battery lifetime. The supplied rechargeable battery BP-HP550- 10 minutes. If you connect the transmitter to an A/V
11 is not commercially available. You can order the battery
component using the headphone jack, raise the volume level
from the store where you purchased this system, or at your on the connected A/V component within the range where the
nearest Sony dealer.
sound is not distorted.
Battery cannot be charged/CHG
indicator flashes, or does not light up
– Check that the right/left of the headphones and transmitter
correspond, and put the headphones on the transmitter
correctly.
–
Install the supplied rechargeable nickel-metal hydride battery.
Dry batteries and rechargeable batteries other than the
supplied cannot be charged.
– If the CHG indicator does not light up even though you put the
headphones on the transmitter and wait for a while, it may be
the end of battery lifetime. You can order the supplied
rechargeable battery BP-HP550-11 from the store where you
purchased this system, or at your nearest Sony dealer.
1)
Precautions
2)
– When this system is not to be used for a long period of time,
disconnect the AC adaptor from the AC outlet holding the
plug, and remove the battery from the headphones to avoid
damage caused by battery leakage and subsequent corrosion.
– Do not leave this system in a location subject to direct
sunlight, heat or moisture.
– This system is guaranteed for use in the temperature range of
5 °C to 35 °C (41 °F to 95 °F).
– You may hear some noise when you disconnect the AC
adaptor from the transmitter before taking off the
headphones.
– Avoid exposure to temperature extremes, direct sunlight,
moisture, sand, dust or mechanical shock.
Notes on headphones
To reduce the risk of hearing damage
Avoid using headphones at high volume. Hearing experts advise
against continuous, loud and extended play. If you experience a
ringing in your ears, lower the volume or discontinue use.
Caring for others
Keep the volume at a moderate level. This will allow you to hear
outside sounds and to be considerate to the people around you.
If you have any questions or problems concerning the system
that are not covered in this manual, please consult your nearest
Sony dealer.
Be sure to bring the headphones and the transmitter to the Sony
dealer when requiring repair work.
Specifications
Transmitter (TMR-IF245R)
Modulation FM stereo
Carrier frequency Right 2.8 MHz
Left 2.3 MHz
Frequency response
10 Hz – 20,000 Hz
Audio inputs Pin jacks (left/right)
Stereo mini jack
Power requirements
DC 12 V (from the supplied AC adaptor)
Dimensions Approx. 140 mm × 60 mm × 105 mm (w/h/d)
Mass Approx. 200 g
Headphones (MDR-IF245R)
Frequency response
2
10 Hz – 24,000 Hz
Place the new earpad
Power source Supplied rechargeable nickel-metal hydride
around the housing.
battery BP-HP550-11, or commercially
available (LR03 (size AAA)) dry batteries
Mass Approx. 200 g including battery
Included items
Transmitter TMR-IF245R
Headphones MDR-IF245R
AC adaptor (12 V) (1)
Connecting cable (stereo mini plug  pin plug × 2), 1 m (1)
Rechargeable nickel-metal hydride battery BP-HP550-11
(550 mAh min) (1)
Operating Instructions (this manual) (1)
Design and specifications are subject to change without notice.
