QUICKSTART GUIDE

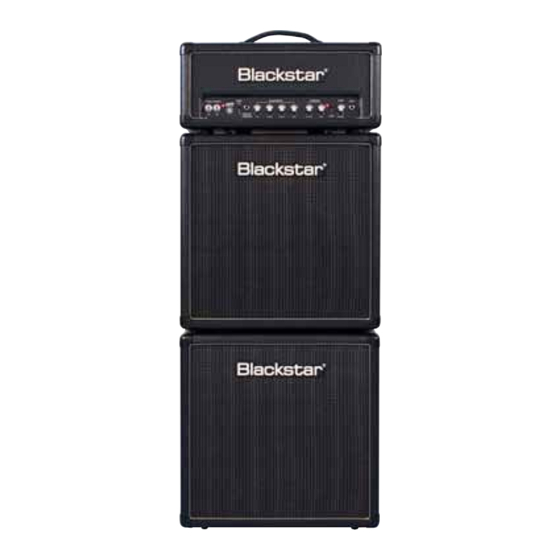

An innovative 5 Watt, two channel valve mini stack
(head and two 1x12" cabinets), with ISF and effects loop.
Specification
5 Watt valve head
■
1 x ECC83 and 1 x 12BH7
■
Unique push-pull power amp design
■
Two footswitchable channels (footswitch included)
■
Two 1x12" Blackstar Blackbird 50 speaker cabinets
■
Patent-applied-for Infinite Shape Feature (ISF)
■
Speaker emulated output, series effects loop
■
18mm chipboard
■
Digital reverb
■
Push-Pull
The HT-5 power amplifier is a
low powered push-pull design
which produces the crunch
and break-up characteristics
of a traditional 100W output
stage, but at a much lower
volume. This is achieved by
the use of a 12BH7 dual triode valves in push-pull
configuration producing 5 Watts output, which is rich
in valve harmonics and compression, sounding full and
toneful even at the lowest volume level.
Warm clean and US blues crunch
REVERB
EQUALISATION
HT
5
0
10
0
10
0
10
0
10
LEVEL
ISF
TREBLE
MIDDLE
Reb Beach – Whitesnake / Winger, Eric Peterson – Testament, James Dean Bradfield – Manic Street Preachers,
Suggested settings
OVERDRIVE
CLEAN
OVERDRIVE
0
10
0
10
0
10
SELECT
0
10
0
BASS
VOLUME
GAIN
TONE
VOLUME
Andy Cairns – Therapy?, Steve Cradock – Paul Weller / Ocean Colour Scene.
ISF (Infinite Shape Feature)
ISF works with the Bass, Middle and Treble
controls to give you access to infinite new
sound possibilities.
Tone tip:
1. Start with ISF set to half way.
2. Adjust Bass, Middle and Treble to taste.
3. Adjust ISF to find your sound (the lower
the Mid the greater the effect).
Bright claen and UK high gain overdrive
REVERB
INPUT
HT
5
10
0
10
0
LEVEL
ISF
HT-5 USERS
EQUALISATION
OVERDRIVE
10
0
10
0
10
0
10
0
10
0
10
TREBLE
MIDDLE
BASS
VOLUME
GAIN
For more information visit
HT-5RS
CLEAN
INPUT
OVERDRIVE
SELECT
0
10
0
10
TONE
VOLUME
