Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
SPECIFICATIONS
Characteristics
Range
0.000 - 1999
2000 - 19999 Lux
20000 - 50000 Lux
Range setting
Manual through key buttons
Resolution
0.000 - 1999 Lux
±1 Lux
2000 - 19999 Lux
±10 Lux
20000 - 50000 Lux
±100 Lux
Accuracy
±6% of reading ±1digits
Peak wave length
560 (nm)
Sensor type
Silicon Photodiode (connected to meter)
Sensor sensitivity
100 scotopic LUX
Sensor stability
±2% change per year
(in first two years)
Power supply
1 x 9 V alkaline battery
Auto-off
after about 5 minutes of non-use
Battery life
approximately 150 hours
of continuous use
Environment
0 to 50ºC; RH95%
Dimensions
143 x 80 x 32 mm
Weight (meter with sensor) approximately 270 g
Milwaukee
Milwaukee
Lux

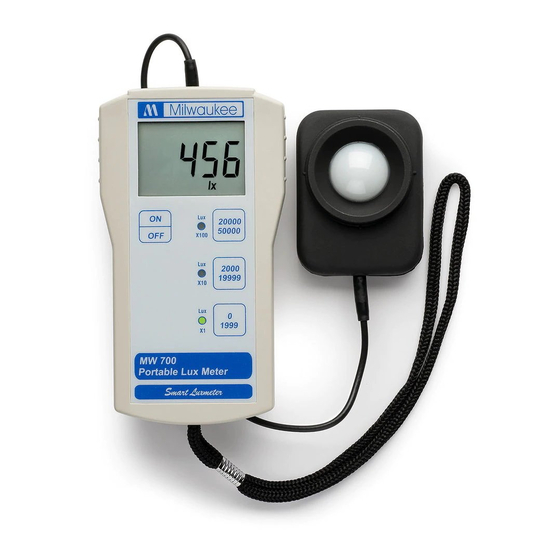

USER MANUAL
PORTABLE
LUXMETER
MW700
MODEL:
Smart Lux Meter
Advertisement
Related Manuals for Milwaukee MW700
Summary of Contents for Milwaukee MW700
- Page 1 USER MANUAL SPECIFICATIONS Characteristics PORTABLE Range 0.000 - 1999 LUXMETER 2000 - 19999 Lux 20000 - 50000 Lux MW700 MODEL: Range setting Manual through key buttons Resolution Smart Lux Meter 0.000 - 1999 Lux ±1 Lux 2000 - 19999 Lux ±10 Lux...
- Page 2 OPERATION: BATTERY REPLACEMENT: • The meter is supplied complete with When the battery becomes weak the a 9V battery. Remove the battery meter will display a blinking " " low compartment cover on the back of battery indicator. the meter and install the battery When it appears, the battery has only into the battery clip connector while about 50 hours of working time left.
