M-system R7G-SC-SHL Instruction Manual

INSTRUCTION MANUAL

GATEWAY MODULE

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Gateway module ........................................................... (1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.

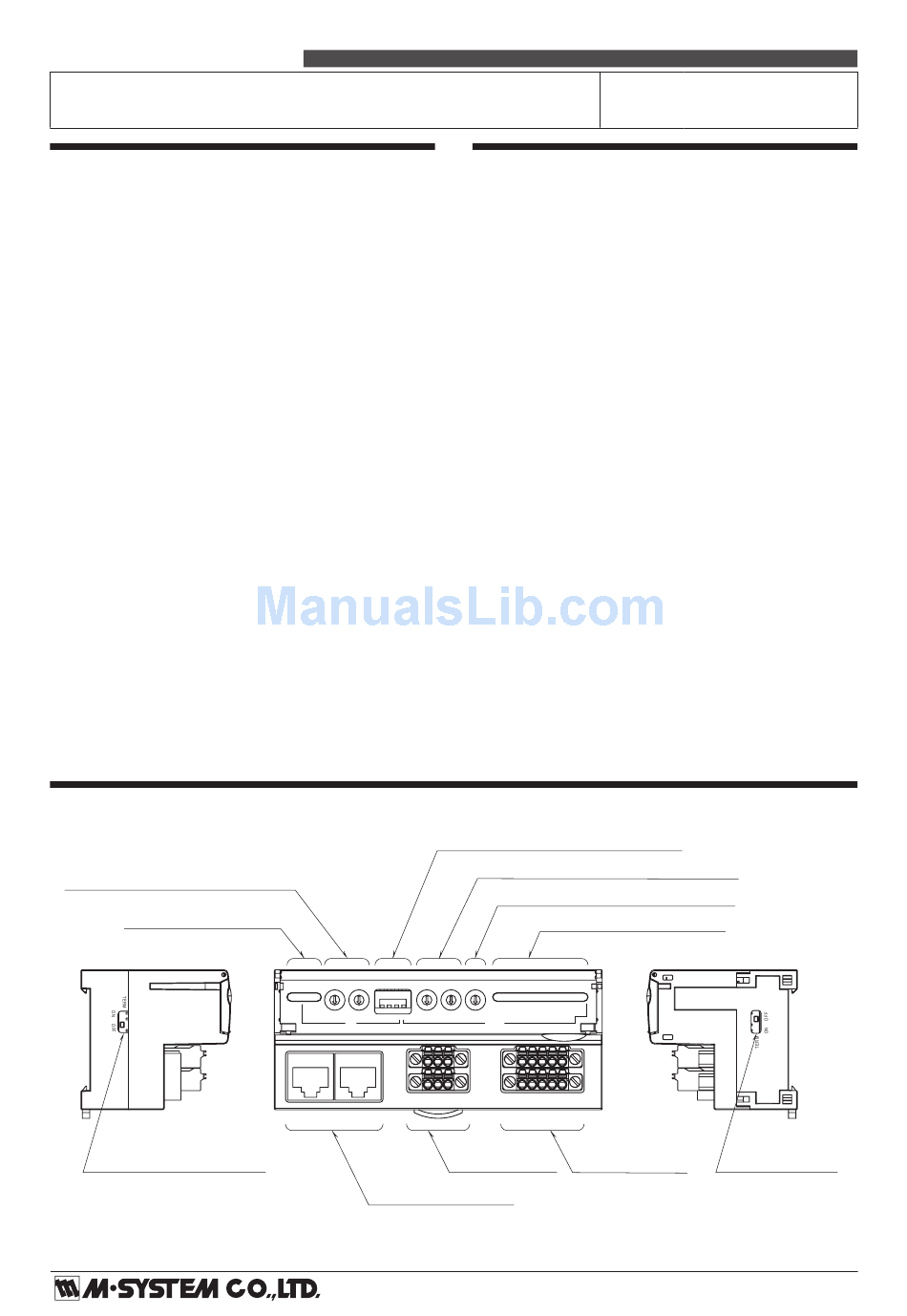

COMPONENT IDENTIFICATION

HLS Module Address Setting Rotay SW
HLS Status Indicator LED
HLS Terminating Resistor SW
Operating Mode Setting DIP SW (SW1)
X10 X1 X10 X1
6M C1 C2 H
PWR RUN1 RUN2
STATION ADD. STATION ADD.
12M H1 H2 C
HLS
Power Supply
Terminals
HLS RJ-45 Connectors
MODEL
POINTS OF CAUTION
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
■ ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing with sufficient ven-
tilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables (power supply, input and output)
close to noise sources (relay drive cable, high frequency
line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
CC-Link Station Address Setting Rotary SW
CC-Link Baud Rate Setting Rotary SW
CC-Link Status Indicator LED
RUN1 ERR1 SD1 RD1 RUN2 ERR2 SD2 RD2
B.RATE
CC-Link
CC-Link Terminals
R7G-SC-SHL
R7G-SC-SHL
CC-Link Terminating
Resistor SW
