GPS Connection

Using the OSD -Autopilot set it is advisable to switch the GPS connector
from the OSD board into connector on autopilot PCB. In such case the
GPS system is supplied by a pulse-UBEC (like servos), relieving the linear
regulator circuit on OSD (less heat is generated on the OSD board), and
reducing the power consumption of the video set.

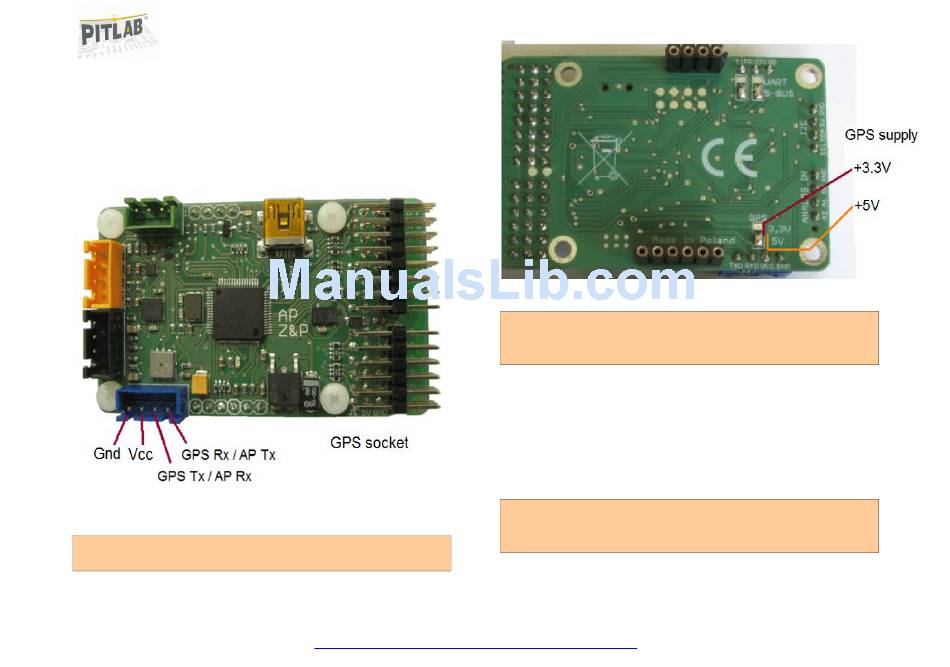

If you use your own GPS, connect it to the connector as described.
NOTE: Before you connect your GPS to the autopilot board you must
verify and possibly change the value of the GPS supply voltage.
© Pit Lab 2017 https://www.pitlab.com/fpv-system/autopilot.html
The changes are made by soldering respective fields with a drop of tin.
NOTE: This option may be changed only for 3-rd party GPS module. The
default GPS voltage setting corresponds to GPSs available in the store
and sold in a set, in this case no power supply voltage change is required.
RSSI
Autopilot does not use the RSSI signal, but for the convenience of
connecting the receiver it has an input for connecting the signal to be
sent directly to the OSD board. Requirements for RSSI signal have been
escribed in the OSD manual.
NOTE: The OSD board in an earlier version (v2.1) does not receive an
RSSI signal from the autopilot, in such case the RSSI signal from the
receiver should be connected directly to the OSD terminal.
