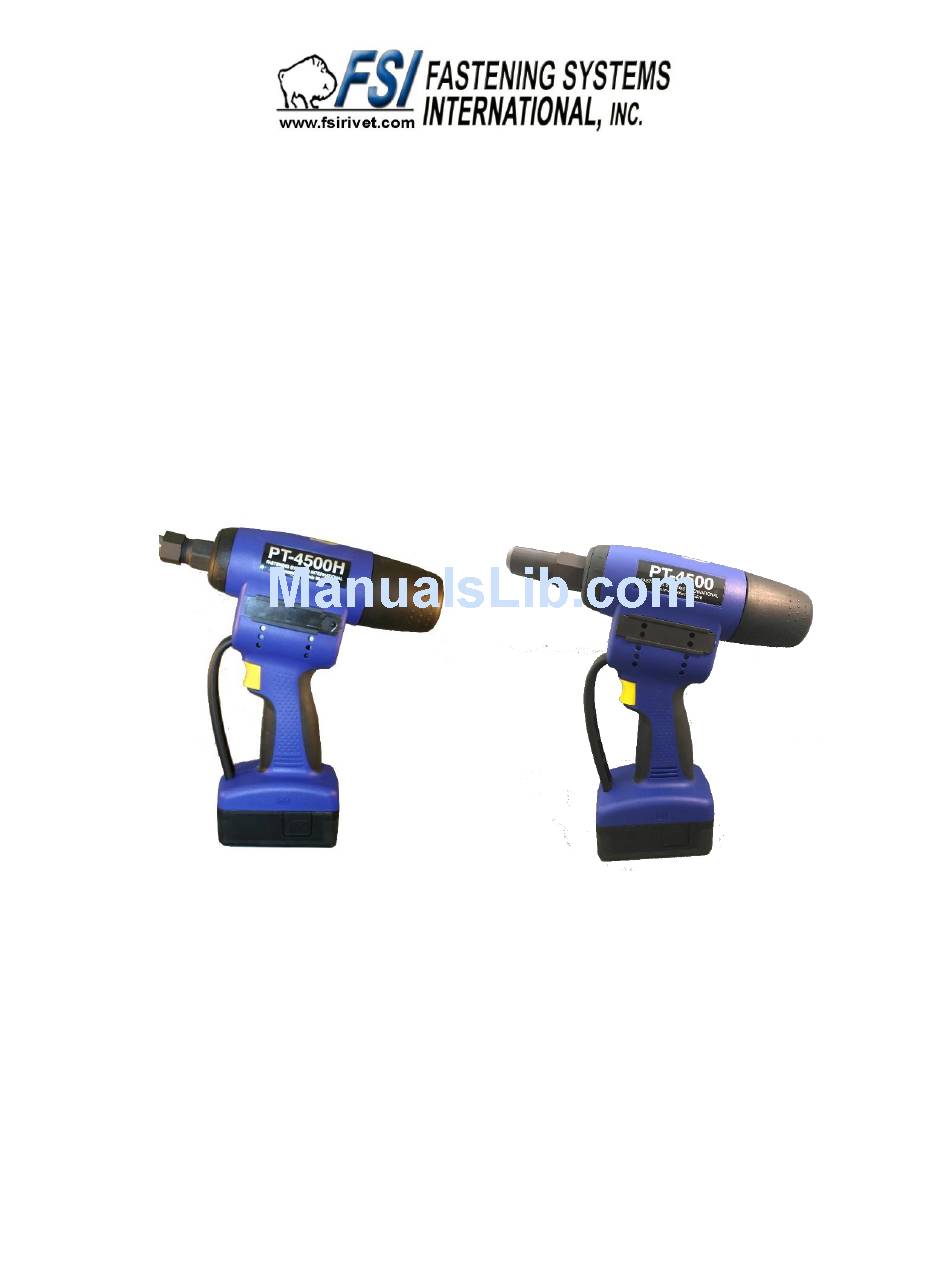

- Page 1 PT-4500/PT-4500H Operating Manual Fastening Systems International, Inc 1206 E. MacArthur Street Sonoma, CA 95476 Tel: 707-935-1170 E-mail: sales@fsirivet.com...
- Page 2 Safety instructions Caution: The following safety rules must be observed for adequate protection against electric shocks, injuries or fire hazards: • The blind riveting tool should be used exclusively to set blind rivets! • Do not overload the tool; work within the prescribed work capacity. •...
- Page 3 the mandrel breaks off, the blind riveting tool stops and automatically re-assumes the front starting position. • Eject the spent mandrel by tilting to the rear into the spent mandrel container or to the front through the nosepiece. • The blind riveting tool is equipped with overload protection. In the event of overloading the blind riveting tool, e.g.
- Page 4 • Never use the charger in a humid or wet environment or close to inflammable substances or gases. Risk of explosion! • Take the charger out of its packaging before use. Insert the FSI battery in the right way into the charger.
- Page 5 • Store batteries in a dry place where there is no danger of frost. The optimum operating temperature range is 10°C to 50°C. FSI batteries have a display showing battery life in percent. Press the button in the display to activate the green LED lights for approx. 5 seconds.
- Page 6 ***** Battery fully charged **** Battery capacity approx. 80% *** Battery capacity approx. 60% ** Battery capacity approx. 40% * Battery capacity max. 20%, charge soon Diagram:...
- Page 7 Parts List: PT-4500 1/8” Nosepiece F159 3/32” Nut-plate Nosepiece F156 F143 5/32-3/16 Nosepiece F142 1/4" Nosepiece F130-F Nose Tube F6012 O-Ring F126-F Jaw Holder F122-A 2-pc Jaws Jaw Follower, ¼” F3245 F3621A Jaw Follower F3081A Jaw Follower Spring F3605-1 Draw Bolt F3185-1 Adapter Housing F3745...
- Page 8 F4978 Rubber Insert, Not Included F7646 Wrench Cover F5399 Handle Guard F5396 Canister F7644 LED Lights F-4500A 18v Battery Pack, Li-Ion F-3500A Battery Charger, USA Plug F-3500B Battery Charger, EU Plug PT-4500 Configurations:...
- Page 9 PT-4500H Configurations: 1. Basic Tool – No Pulling Heads 2. Adding the F4187-AR-4500 – Rotating Adapter for Offset Huck Heads 3. Adding the F1458-SE – Side Ejection Adapter...
- Page 10 4. Adding a Huck Pulling Head 5. Standard Configuration...
