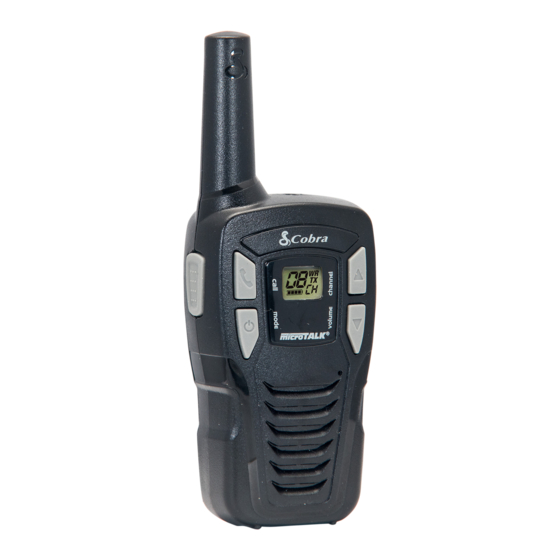

Cobra microTALK CX112 User Manual

TWO-WAY RADIO MODEL
CX112
Making Life Easier
And Safer
Staying in touch with your family and
friends is convenient and easy when using
your microTALK radio. Some of the many
®
uses you will discover include:
Communicating with others while hiking, biking,
and working; keeping track of family and friends
at a crowded public event; checking with travel companions
in another car; talking with neighbors; arranging meeting
spots with others while shopping at the mall.

Talk Button

Press and hold to communicate with
others. With the microphone about two
(2) inches [five (5) cm] from your mouth,
speak in a normal voice.
Release the Talk button when you are
finished talking and listen for a response.
You cannot receive incoming calls while
pressing the Talk button.
NOTE Both radios must be tuned to
the same channel to communicate.

Call Button

Press and release to alert others that you
are calling. This tone is used only to establish
voice communications.

Mode/Power Button

Press and hold to turn the radio On or Off.
Press and release to enter mode function to
change channels.
The channel numbers will blink when that
mode is selected. Use the Up/ Down buttons
to select a channel.
Press and release again to enter the NOAA
Weather Channels. Use the Up/Down buttons
to select the strongest weather channel in
your area.
COBRA RADAR DETECTORS
While in Standby mode or when selecting
Speaker/Microphone
a channel, shows current channel (1 through 22).
Jack

Battery Low Icon

LCD
Icon blinks and an audible tone will be
Display
heard when battery power level is low.
®
Your microTALK radio has a unique circuit
designed to extend battery life. If there are no
transmissions within ten (10) seconds, the radio
will automatically switch to Battery Save mode.
This will not affect the radio's ability to receive
incoming transmissions.

Up/Down Buttons

Press and release to adjust
the volume.
While in mode function, press
and release to change channels.
Antenna
USB Charge
Jack
Battery
Compartment
Cover
Channel Numbers
When adjusting the volume,
shows current level (1 through 8).
WR
TX
Maximum range may vary and is based on unobstructed
line-of-sight communication under ideal conditions.

Installing Batteries

To Install or Replace Batteries:
Remove Belt Clip
1. Remove belt clip by releasing belt clip
latch and sliding clip up.
2. Pull up on the battery door latch to remove the
battery compartment cover.
Pull Latch Up
3. Insert three (3) AAA batteries. Position
batteries according to polarity markings.
4. Replace battery compartment cover
and belt clip.
Insert Batteries
• Do not attempt to charge alkaline batteries.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• If you are planning to buy NiMh batteries,
please purchase Cobra supplied batteries only.
User's Guide

Weather Icon

Visible when in NOAA weather radio
®
mode. You can use your microTALK
radio to listen to weather channels
transmitting in your area.

Receive Icon

Visible when receiving
a message.

Transmit Icon

Visible when transmitting
a message.
Channel/Volume
Indicator
Visible when receiving
a message.
" CH" is visible when in
Standby mode or when
selecting a channel.
" LE" is visible when
adjusting volume.
