Blonder tongue BTPRO-1000 Quick Manual

BTPRO-1000 with Optional
Pro:Idiom™ Recovery (Stock # 4230 RK)
1. Press the Recovery Pro:Idiom™ Key [
2. With the Standard Navigation highlight the PLAN field and select the
desired modulator channel plan (CABLE or Broadcast) and press the
ENTER key [ ] .
C
3. Using the Standard Navigation highlight the CHANNEL field and select
the desired modulator output channel. Allowable selections are 2-158 for
CABLE and 2-69 for Broadcast. Press the ENTER key [
NOTE: When using the Restore or PI Key Test commands in 8.5.5, the selected
channel must be one of the PI encrypted channels the TV is programmed
(mapped) to receive. This channel entry is the actual RF channel assignment
- NOT a virtual channel.
4. Using the Standard Navigation highlight the MODE field and select the
desired QAM output (QAM64 or QAM256). Press the ENTER key [
5. After the Plan, Channel and Mode settings have been done, highlight
the SET PARAMETERS? field and press the ENTER key [
modulator is now providing an RF output based on the previous settings.
Connect the RF output to the TV and tune to the channel set in #3 above.
The TV should now lock on to the BTPRO modulator's RF output channel.
6. Using Standard Navigation methods, highlight the COMMAND field and
select the desired action of:
Restore: Refreshes the TV's Pro:Idiom key providing a color bar test
pattern with "Production Renewal Key" text once completed.
PI Key Test: PI encrypted color bar test pattern with "Production Keys"
text for testing TV PI reception capability.
MPEG-2/AC3: Non-encrypted MPEG-2 video test pattern with AC3
audio for testing TV receiving capability.
MPEG2/MPEG1 Layer 2: Non-encrypted MPEG-2 video test pattern
with MPEG-1 Layer 2 audio for testing TV receiving capability.
H.264/AC3: Non-encrypted H.264 video test pattern with AC3 audio
for testing TV receiving capability.
H.264/EAC3: Non-encrypted H.264 video with EAC3 audio for testing
TV receiving compatibility.
Press the ENTER key [ ] .
C
7. Select the SEND COMMAND field and press the ENTER key [
transmit the command. Confirm the command action on the TV as
described above. The test pattern duration is approximately 30 seconds.
4
] to display the menu.
F
] .
C
] .
C
] . The internal
C
] to
C

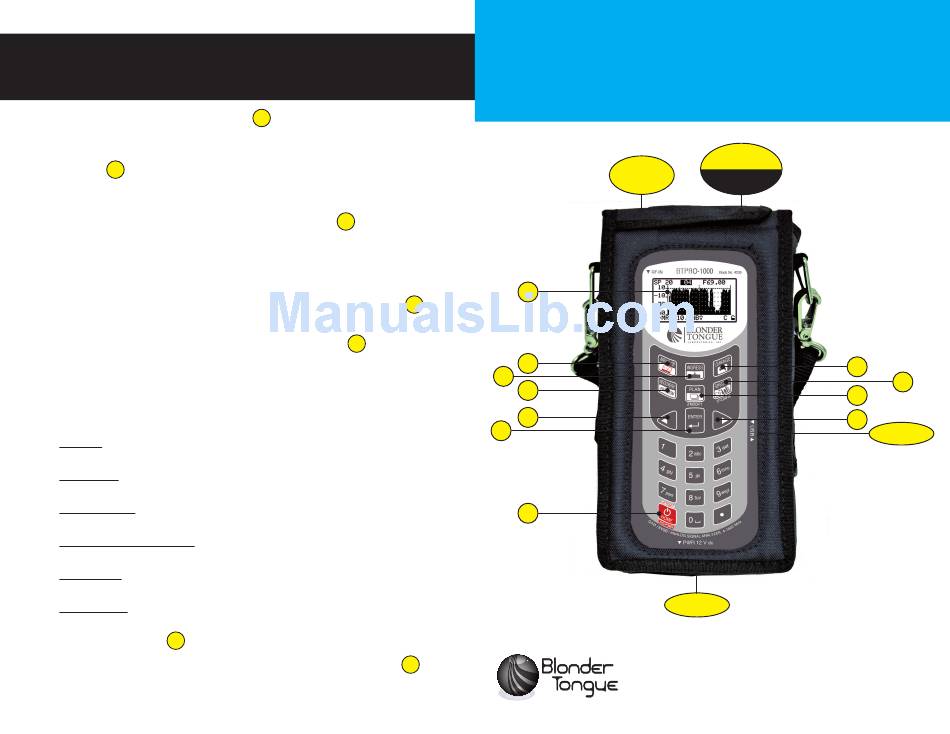

BTPRO-1000
