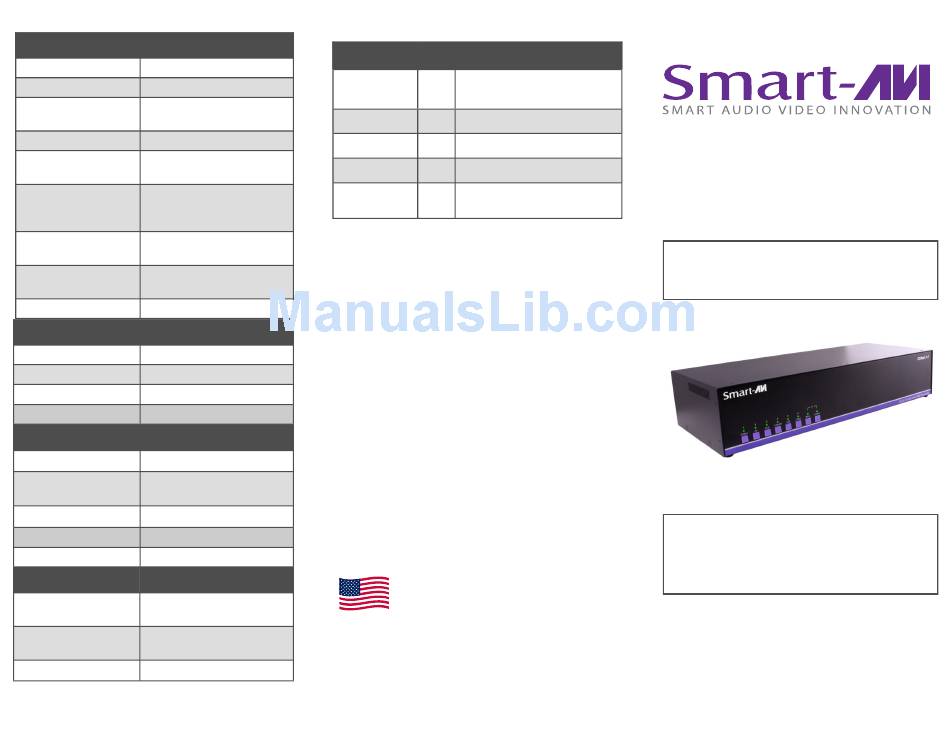

SMART-AVI EZWall-Pro 4x4 Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
Input Resolution Up to 1920x1080
Output Resolution Up to 1920x1080 (@60Hz)
DVI Format Single-link
Input Video Signal 1.2 volts
Input DDC Signal 5 volts
Input Interface (2) HDMI, (1) VGA, (2) AV,
(1) Y/Pb/Pr, (1) USB 2.0
Type A
Output Interface (16) DVI-D
Audio (1) 3.5,, input, (1) 3.5mm
output
HDCP Compliance 1.0/2.0
CONTROL
Front Panel Tactile Switches
IR EZ-RMT (NEC 38kHz)
RS-232 DB9 (female)
TCP/IP (Ethernet) RJ-45
USB MEDIA PLAYER
Signal Type USB 2.0 Type A
Video Formats MJPEG, MPEG-1, MPEG-2,
MPEG-4, Vvid, DivX, H.264
Max Resolution 1920x1080 @ 30fps
Max Data Rate 20 Mbps
Audio Formats MP3, WMA, AAC, AC3
OTHER
Power 110-220V (CCPWR06)
Dimensions 3.75"H x 17.125"W x
7.25"D
Weight 7.7 lbs
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
EZW4X4-S 1 EZWall-Pro: 4x4 Video Wall
Controller
CCPWR06 1 Power Chord
EZ-RMT 1 IR Remote Control
SM-EYE 1 IR Receiver
EZWALL-4x4- 1 EZWall-4x4 Quick Start Guide
QSG
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI
makes no warranty of any kind with regard to
this material, including but not limited to,
implied warranties of merchantability and
fitness for particular purpose.
SmartAVI will not be liable for errors
contained herein or for incidental or
consequential damages in connection with
the furnishing, performance or use of this
material.
No part of this document may be
photocopied, reproduced, or translated into
another language without prior written
consent from SmartAVI Technologies, Inc.
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
EZWall-Pro 4x4
Multi-Format
HD Video Wall Processor
4x4 DVI, HDMI, VGA, AV,
and Y/Pb/Pr Video Wall Processor
with Integrated USB Media Player

Quick Start Guide
