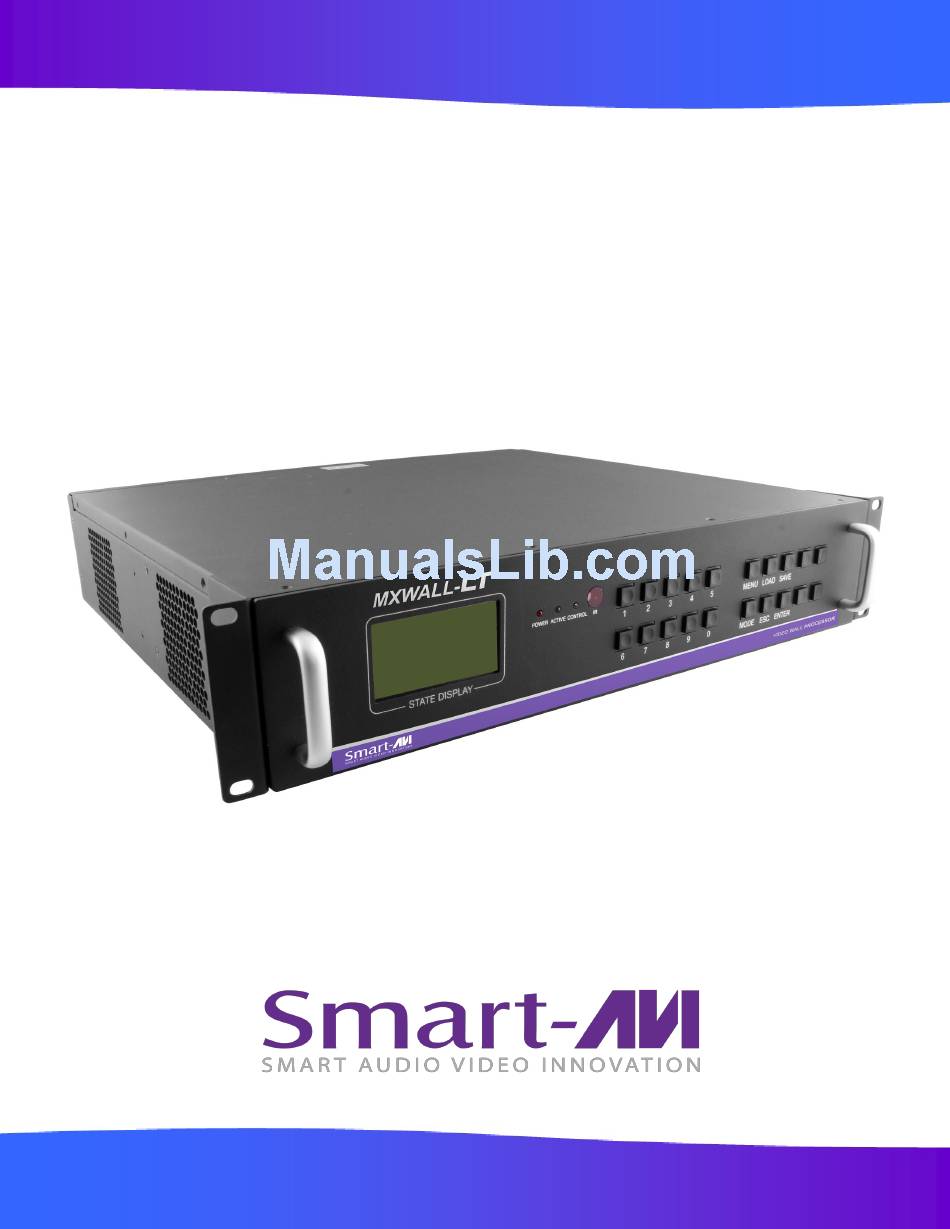

MXWall-LT
User Manual
4-Input and Up to 12-Output Video Wall Processor and Matrix Switch
All-in-one video wall and matrix solution with 1080p Full HD resolution output, integrated
converter & scaler, flexible creative configuration modes, and user friendly control
software!
Made in U.S.A.
www.SmartAVI.com
1
1-800-AVI-2131

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXWall-LT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART-AVI MXWall-LT

Summary of Contents for SMART-AVI MXWall-LT

  • Page 1 MXWall-LT User Manual 4-Input and Up to 12-Output Video Wall Processor and Matrix Switch All-in-one video wall and matrix solution with 1080p Full HD resolution output, integrated converter & scaler, flexible creative configuration modes, and user friendly control software! Made in U.S.A.

  • Page 2: Table Of Contents

     Creating Inputs and Views USING THE SOFTWARE (Continued)  Adding USERS  Creating Schedules LIMITED WARRANTY STATEMENT WHAT'S IN THE BOX PART NO. QTY DESCRIPTION MXWALL-LT-S 4-Input 12-Output Video Wall Processor and Matrix Switch CCPWR06 Power supply cord Manual Quick Start Guide...

  • Page 3: Introduction

    Specifically designed and optimized for the most de- manding environments and applications, the MXWall-LT lets users manage and route up to 12 HDMI or DVI video sources to as many as 12 HD displays. There are a total of 4 card slots for input and output cards.

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS VIDEO Video Amplifier Bandwidth 3.2G Input Video Signal Video (TMDS) 0.5~1.0Vpp Input DDC Signal 5 volts Compliances HDMI 1.4 and HDCP Pixel Rates Clock frequency beyond 165Mpix/second Format 4:4:4 and 4:2:2 data input formats Input Resolution 480p, 720p, 1080i, 1080p Output Resolution Up to 1080p (1920X1080@60Hz) Input Card Format...

  • Page 5: Hardware Installation

    4. Optionally connect an RS-232 cable from a PC to the RS-232 port on the unit for additional control. 5. Optionally connect an Ethernet cable to the MXWall-LT for additional control. 6. Turn on the MXWall-LT and wait a few seconds for the unit to initialize.

  • Page 6: Available Configurations

    AVAILABLE CONFIGURATIONS It is easy to create different configurations or modes that are easy to navigate through with the MXWall-LT. There are endless possibilities. Creating and switching between display modes is simple. Front panel buttons, on-screen-display, RS-232, and TCP/IP can be used to switch between modes at will.

  • Page 7: Front Panel Controls

    FRONT PANEL CONTROLS The front panel of the MXWall-LT allows you to quickly set up IP address, Baud Rate, and control input and outputs. Press the “Menu” button, and a Menu of items will appear in the green screen. You can use the buttons on the far right to go up or down or simply press the number next to the option you want.

  • Page 8: Software Installation

    SOFTWARE INSTALLATION 1. Run setup.exe (Provided with the MXWallProInstaller software) 2. A Setup window will pop open. Click ‘Next >’ to continue (Figure 8-1). Subsequently select where you would like to save MxWallPro and who the users will be and click ‘Next >’. (Figure 8-2) 3.

  • Page 9: Using The Software

    USING THE SOFTWARE First Time Logging In 1. Run MxWallPro 2. Log in using the default Account Settings. Username ‘Administrator’ Password ‘admin’, then click the ‘ENTER’ button. (Figure 9-1) Figure 9-1 Configuring Settings 1. Click on ‘SETTINGS’ Located in the top blue bar. (Figure 9-2) 2.

  • Page 10: Using The Software (Continued)

    USING THE SOFTWARE (Continued) Configuring VideoWall After Logging in, Navigate with your mouse to the top, and click on ‘VideoWall’ On the right side of the VideoWall settings window under ‘Resolution’ you can use the pull down menu to select the resolution. Click on the + or — buttons to set the number of Rows and Columns in your Video Wall array.

  • Page 11: Using The Software (Continued) Creating Inputs And Views

    USING THE SOFTWARE (Continued) Creating Inputs and Views While in the MXWall Main Window click on ‘INPUT’. An ‘Input Settings’ pop up will appear. See Figure 11-1. Click on the + and — buttons to set the number of input ports and click the OK button.

  • Page 12: Adding Users

    USING THE SOFTWARE (Continued) Adding USERS You can Add and delete Users by clicking on the USERS symbol shown in figure 12-1. Figure 12-1 In the window that pops up you set the name, password and whether or not the user is administrator. See Figure 12-2 Figure 12-2 Creating Schedules...

  • Page 13: Limited Warranty Statement

    Smart-AVI limited warranty is valid in any country where the covered product is distributed by Smart-AVI. Limitations of warranty To the extant allowed by local law, neither Smart-AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart-AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
  • Page 14 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war- ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant- ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci- dental or consequential damages in connection with the furnishing, performance or use of this material.
