SonicWall™ TZ500 / TZ500
Wireless
Quick Start Guide
Regulatory Model Numbers:
APL29‐0B6 TZ500
APL29‐0B7 TZ500 W
Copyright © 2017 SonicWall Inc. All rights reserved.
SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in
the U.S.A. and/or other countries. All other trademarks and registered trademarks are
property of their respective owners.
The information in this document is provided in connection with SonicWall Inc. and/or its
affiliates' products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of
SonicWall products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED
IN THE LICENSE AGREEMENT FOR THIS PRODUCT, SONICWALL AND/OR ITS AFFILIATES
ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR
STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
OR NON‐ INFRINGEMENT. IN NO EVENT SHALL SONICWALL AND/OR ITS AFFILIATES BE
LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL
DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS,
BUSINESS INTERRUPTION OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR
INABILITY TO USE THIS DOCUMENT, EVEN IF SONICWALL AND/OR ITS AFFILIATES HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SonicWall and/or its affiliates
make no representations or warranties with respect to the accuracy or completeness of
the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. SonicWall Inc. and/or its affiliates do
not make any commitment to update the information contained in this document.
For more information, visit https://www.sonicwall.com/legal/.
Legend
WARNING: A WARNING icon indicates a potential for property damage,
personal injury, or death.
CAUTION: A CAUTION icon indicates potential damage to hardware or loss of
data if instructions are not followed.
IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates
supporting information.
TZ500 / TZ500 Wireless Quick Start Guide
Updated ‐ January 2017
232‐003781‐50 Rev A

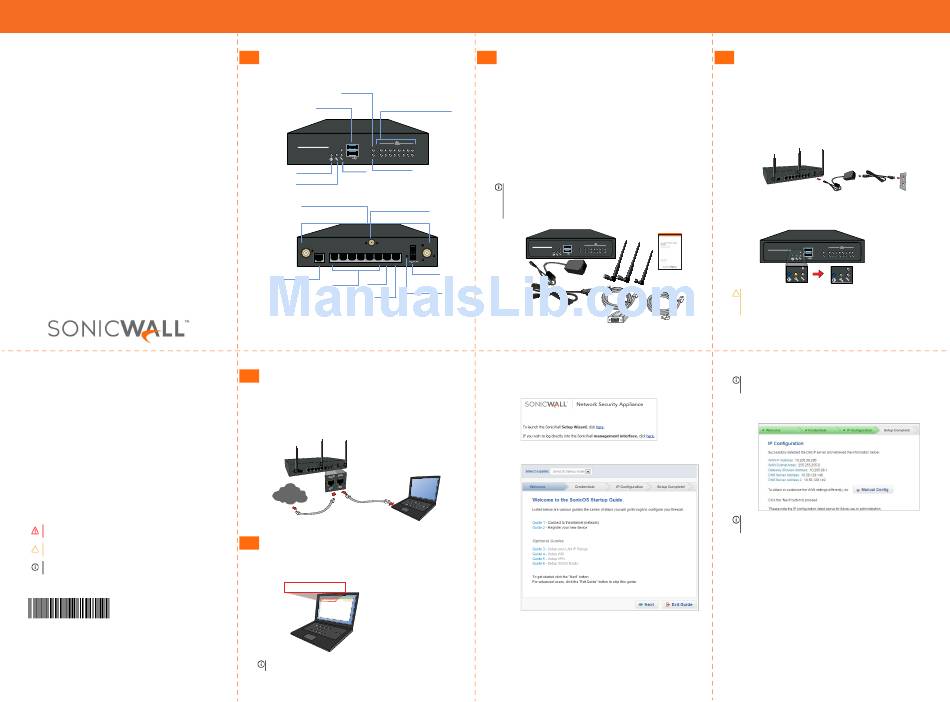

TZ500 / TZ500 W front and back
1
panels
Front Panel Wireless (W0) LED
(TZ500 W only) Indicates
802.11 ac/n/g/b security
status
USB / SSD port
Ethernet Port Status (X0-X7)
External USB and SSD hard
Top - Provides 10/100 Mbps Ethernet port status
drive support
Bottom - Provides 1 Gbps Ethernet port status
1000
W0 X0 X1 X2 X3 X4 X5 X6 X7
SonicWall TZ500 W
security 10/100/act
1000/act
on / act
ss lan wan
Wireless LAN LED
Service LED
Power LED
(TZ500 W only) Indicates 802.11
For future use
ac/n/g/b activity
Indicates Power Supply status
Test LED
Fast blinking - Initializing
Slow blinking - SafeMode
Rear Panel
Antenna Screws (3)
Center Antenna Screw
(TZ500 W only) Provides 802.11 wireless capabilities
to the SonicWall appliance (TZ500 W only) The center antenna screw is only
compatible with the enclosed center antenna
power
wan lan
console X7 X6 X5 X4 X3 X2 X1 X0
Power Supply
Console Port
Provides power to
the SonicWall
X1 Port
Access the SonicOS Command X2 - X7 Ports
appliance
Line Interface (CLI) using a
For WAN access
Configurable ports
compatible CLI cable
Reset Button
X0 Port
Press and hold for several
seconds to set the appliance
For LAN access
into Safe Mode
Connect the interfaces
4
• Connect the WAN interface (X1) to your Internet
connection using a standard Ethernet cable.
• Connect the LAN interface (X0) to your computer
using a standard Ethernet cable.
Internet
Run the Setup Wizard
5
• Navigate to
https://192.168.168.168
Web browser.
http://192.168.168.168/
TIP: Your computer should be using DHCP IP addressing.
Check package contents
2
Verify that your package has the following contents:
• SonicWall appliance
• Antennas (3) (TZ500 Wireless appliance only)
• Ethernet cable
• Standard power adaptor
• Standard power cord
• Serial console cable
• Quick Start Guide
NOTE: The included power cord is approved for use only
in specific countries or regions. Before using a power
cord, verify that it is rated and approved for use in your
location.
1000
W0 X0 X1 X2 X3 X4 X5 X6
SonicWall TZ500 W
security
on / act
ss
lan wan
• Click on the link in "To launch the SonicWall Setup
Wizard, click here."
• The SonicOS Startup Guide opens.
on your
• Click Next and follow the prompts in the Startup
Guide pages that follow.
• Enter the TZ appliance administrator credentials to
change the password, if you wish. Click Next.
Power on
3
• Connect the antennas to the appliance. Note that the
center antenna is labeled and is only compatible with
the center antenna screw. (TZ500 Wireless appliance
only.)
• Connect the power adaptor to the appliance and to
the power cable. Plug the power cable into an
appropriate outlet (100‐240 volts AC).
• The TZ appliance powers on, and the Test LED blinks
during the boot sequence.
X7
10/100/act
SonicWall TZ500 W
1000/act
CAUTION: Only use the included power adaptor with
this appliance. Do not use a power adaptor that is
damaged or from another appliance.
NOTE: The default administrator credentials are
Username: admin Password: password
• The automatic WAN IP settings are displayed. Click
Next.
NOTE: For manual configuration, refer to the latest
SonicOS Administration Guide.
• The new IP Configuration is displayed. Click Done.
Configuring Wireless LAN settings
• Log in to your TZ appliance and click the Wizards
icon.
120V AC
(U.S.)
1000
W0 X0 X1 X2 X3 X4 X5 X6 X7
security 10/100/act
on / act 1000/act
ss
lan wan
