CTC Union ETU-01A Installation And Operation Manual

CTC Union ETU-01A Installation And Operation Manual

Standalone/rack series e1 fractional e1 access unit
Hide thumbs Also See for ETU-01A:
Table of Contents

Advertisement

Quick Links

Download this manual

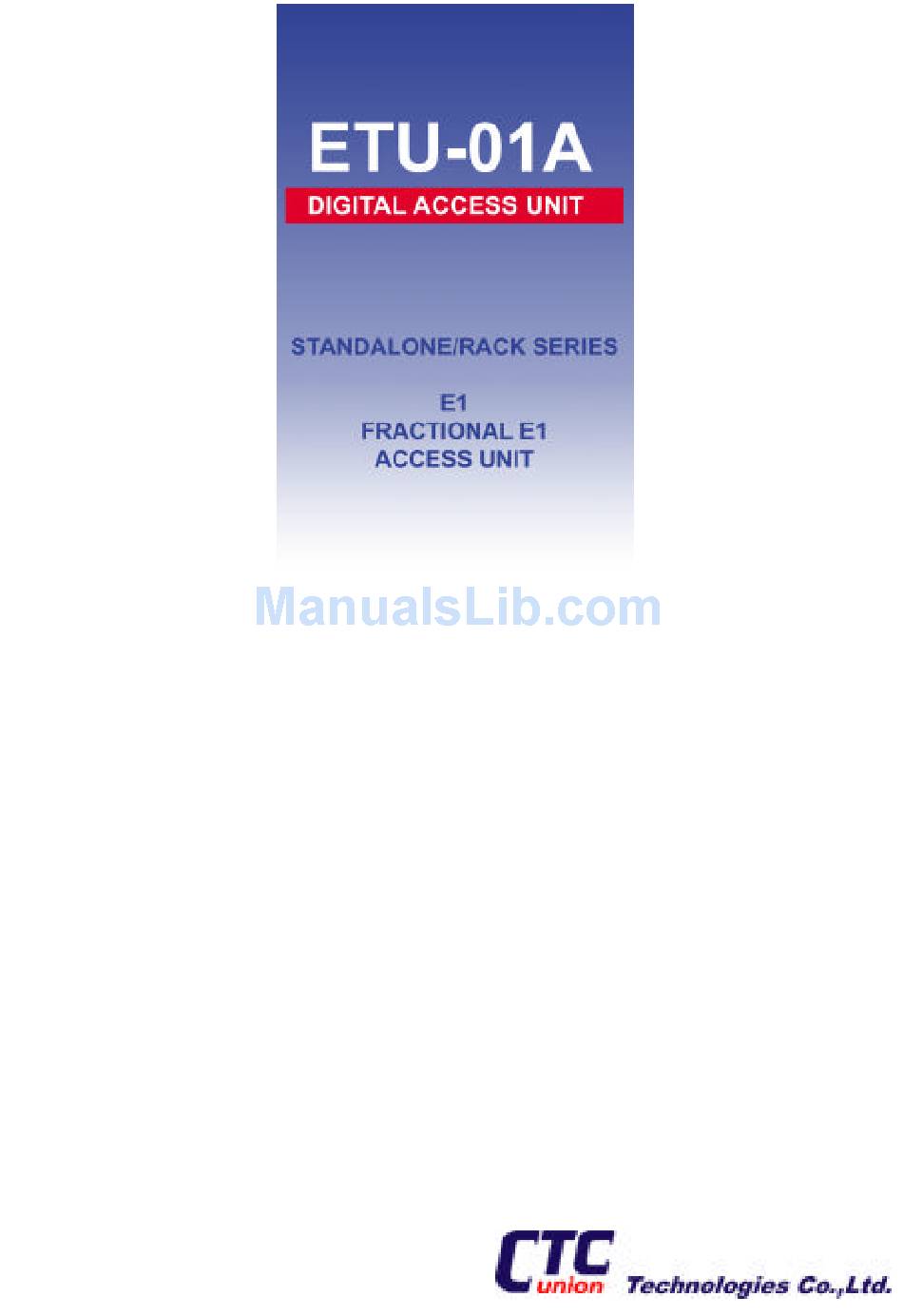

I N S T A L L A T I O N
and
OPERATION MANUAL
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETU-01A and is the answer not in the manual?

Questions and answers

Related Manuals for CTC Union ETU-01A

Summary of Contents for CTC Union ETU-01A

  • Page 1 I N S T A L L A T I O N OPERATION MANUAL Version 2.0...
  • Page 3 CTC Union Technologies Co., Ltd. 8F, No.60, Zhouzi St., Neihu, Taipei, 114, Taiwan ETU-01A E1 Access Unit, Installation and Operation Manual March 2002 (Third Printing) This manual supports the following models: ETU-01A/AC 90~250VAC model ETU-01A/DC 18~72VDC model This manual includes the updates for functional firmware version 1.16 and above, including installation and operation of the SNMP optional hardware agent.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1. Introduction ……………………………... 1 1.1 General ………………..……………………………….. 1.2 Functional Description …………………………..…….. 1.3 System Timing Considerations ………………….…….. 1.4 Typical System Application …………………………… 1.5 E1 Signal Structure ……………………………………. 1.6 Technical Specifications …………………………..…… Chapter 2. Installation …………………………..… 19 2.1 General ……………………..………………………….. 2.2 Site Preparation ………………………………………...
  • Page 6 Chapter 6. SNMP Option ………………………… 103 6.1 Installation …..………………………………………… 103 6.2 Simple Network Management Protocol ……….……… 6.3 Breakdown of MIB for ETU-01A ……………………… 111 Appendix A. I/F Specifications ………….……..…. 117 A.1 E1 Line Connectors …………...………………...……. 117 A.2 X.21 User Data Channel Connector …………….…….

  • Page 7: Chapter 1. Introduction

    DTE devices, which may be linked to an ETU-01A at data rates of 56Kbps to 2048Kbps. The ETU-01A supports local control and diagnostics via the LCD display, keypad and LED status indicators located on the front panel, via the RS-232 control port connection or via optional SNMP.
  • Page 8 Chapter 1. Introduction At the time of this printing, the ETU-01A had nine types of user- replaceable data channel modules. 1. ETU/TTU-V35 V.35 Module: Provides one fully compliant ITU-T V.35 interface on a Female "M" block, 34 pin connector. Operates at any n56/n64 fractional or unframed E1 speed.
  • Page 9 Chapter 1. Introduction 4. ETU/TTU-X21 X.21 Module: Provides one fully compliant ITU-T X.21 interface on a female "D" type 15 pin connector. Operates at any n56/n64 fractional or unframed E1 speed. 5. ETU/TTU-ET10 Ethernet Bridge Module: Provides an Ethernet (IEEE802.3) Bridge function over the WAN when matched to another ET10 module, ET10A standalone, or a compatible bridge utilizing standard...
  • Page 10 Chapter 1. Introduction 7. ETU/TTU-G64 G.703/64K Module: Provides one fully ITU-T compliant G.703 Codirectional (line code) 64Kbps interface on a female "D" type 15 pin connector. Operates at 64Kbps only. 8. ETU/TTU-NRZ NRZ Module: Provides one NRZ interface on four(4) female BNC type connectors.

  • Page 11: Functional Description

    Chapter 1. Introduction 1.2 Functional Description The ETU-01A is a single port access unit for E1, Fractional E1 or Fractional cascade (multiplexing) E1 services. The ETU- 01A data channel supports user-selectable transmission rates, which are integral multiples of 56 or 64Kbps, up to a maximum 2.048Mbps.

  • Page 12: System Timing Considerations

    BERT testing. The operator at either end of the line may test both the ETU-01A and the line in the remote digital loop back mode. The loop back is controlled by local LCD display setting, serial console, optional SNMP or by the DTE interface for V.35, RS-232 and RS-530.
  • Page 13 The ETU-01A E1 link receive path always operates on the receive clock. The ETU-01A recovers the receive clock from the received E1 link data signal. The source of the ETU-01A E1 link transmit clock may be selected by the user. The following E1 link transmit timing modes are available: •...
  • Page 14 • External (DTE) timing: The ETU-01A has three data channel clocking modes: • Clock mode DTE1: The ETU-01A data channel accepts the user transmit clock from the connected DTE (from the ETC pin) and provides a receive clock (Transparent timing) to the synchronous equipment connected to the data channel.

  • Page 15: Typical System Application

    Chapter 1. Introduction 1.4 Typical System Applications General In a typical application (Figure 1-1), the ETU-01A is used in a point-to-point connection. The synchronous data channels of each host are connected over an E1 line. Figure 1-1 Point-to-Point Application Fractional E1 data service is based on the assumption that the user data rate is a fraction of the available E1 bandwidth, in multiples of 56K or 64K.

  • Page 16: E1 Signal Structure

    Chapter 1. Introduction 1.5 E1 signal structure The E1 line operates at a nominal rate of 2.048Mbps. The data transferred over the E1 line is organized into frames, with each E1 frame containing 256 bits. The 256 bits are a total of the 32 time slots, each containing eight bits, carrying the data payload.
  • Page 17 Chapter 1. Introduction Multi-Frame Alignment Signal (MFAS) MFAS framing uses Channel Associated Signaling (CAS) to transmit A/B/C/D bit signaling information for each of 30 channels. This method uses the 32 time slot frame format with time slot 0 for the FAS and time slot 16 for the Multi-Frame Alignment Signal and the Channel Associated Signaling.
  • Page 18 Chapter 1. Introduction E1 link line coding The ETU-01A supports two E1 line codes: AMI coding. HDB3 coding. E1 framing formats The ETU-01A supports three frame formats: Unframed format. FAS (CCS, PCM-31) format. MFAS (CAS, PCM-30) format. November 2001...

  • Page 19: Technical Specifications

    Chapter 1. Introduction 1.6 Technical Specifications E1 link Framing -Unframed/Framed -CCS (PCM31)/CAS (PCM30) -CRC4 ON/OFF Bit Rate 2.048 Mbps Line Code -AMI -HDB3 Line Impedance -75 ohms -120 ohms Relative Receive Level 0 to -43dB -Nominal 2.37V± ± 10% for 75 ohms “Pulse”...
  • Page 20 Chapter 1. Introduction User Data Channels Interface Types -V.35, X.21, RS-530, RS-449, RS-232, -G.703/64K Codirectional, NRZ/BNC, -10Base-T Bridge, and 10/100Base-T Router I/F Connectors V.35 I/F 34 pin, M-block Female X.21 I/F 15 pin, D-type Female RS-530 I/F 25 pin, D-type Female RS-449 I/F 37 pin, D-type Male(adpt.
  • Page 21 Chapter 1. Introduction Setup/Configuration LCD Display 2 rows of 16 Characters Pushbutton Switches -ESC -Left Arrow -Right Arrow -Enter LED indicators POWER Green Power Sig Loss E1 link signal loss SYNC Loss E1 link sync loss Alarm E1 link alarm, include: BPV error / CRC4 error / Frame slip / All ones(AIS) / Remote alarm Yellow...
  • Page 22 Chapter 1. Introduction Diagnostic tests Test loops -E1 local analog loop back -E1 local digital loop back -E1 local payload loop back -E1 remote analog loop back -E1 remote payload loop back -Data port local analog loop back -Data port local digital loop back -Data port V.54 loop back BERT test pattern -511...
  • Page 23 Chapter 1. Introduction Power supply Voltage AC Model: 90 ~ 250 VAC (auto detect) DC Model: 18 to 72 (-18 to -72VDC) Frequency 47 to 63 Hz for AC power Power consumption 15 Watts Fuse 0.5A slow blow Environment 0-60° ° C / 32-140° ° F Temperature Humidity 0 to 90% non-condensing...
  • Page 24 Chapter 1. Introduction This page left blank intentionally. November 2001...

  • Page 25: Chapter 2. Installation

    AC outlet. The outlet should be capable of furnishing 90 ~ 250 VAC (18VDC to 72VDC for DC model unit). Allow at least 10 cm (4 inch) clearance at the rear of the ETU-01A for signal lines and interface cables.
  • Page 26 Please refer to the User Data Channels table on page 10 for a description of the digital interface connectors located on the rear panel of the ETU-01A (Refer to Figure 2-1). The E1 line connectors incorporate DB15 pin or two BNC Coax connectors.
  • Page 27 Chapter 2. Installation E1 Line side DB-15 Connector The pin assignment for DB-15 connector is as follows: Pin: Function: E1 Link TTIP (Transmit data out) TRING (Transmit data out) RTIP (Receive data in) RRING (Receive data in) ALARM relay contact common NO (normally open) NC (normally closed)
  • Page 28 Chapter 2. Installation X.21 interface connector For applications using an X.21 interface external clock (Clock mode select DTE1 or DTE3), connect the input clock to pins 7(A) and 14(B) of the 15-pin connector. RS-530 interface connector Utilizes standard pin-out. The three test pins have been chosen for loops and test.
  • Page 29 Cable and Termination Use a shielded twisted pair cable between the ETU-01A and the DTE device. The receivers on the ETU-01A are 100 Ohm terminated (For X.21 and RS-530). If problems are encountered with the connection to the DTE interface, make sure that the DTE interface is terminated correctly.

  • Page 30: Dip Switches And Jumper Settings

    Chapter 2. Installation 2.5 DIP Switches and Jumper Settings 2.5.1 Caution To avoid accidental electric shock, disconnect the ETU-01A power cord before opening the cover. Access inside the equipment is only permitted to authorized and qualified service personnel. 2.5.2 Procedure Turn power OFF, Disconnect the power cord from the AC mains.
  • Page 31 "DIS" to separate logic and chassis grounds. Please refer to the following figure for location of DIP switch and chassis jumper. Switching Power Supply DATA Port I/F SNMP Card Option DIPSW1 Figure 2-3 : ETU-01A Main PCB Assembly November 2001...
  • Page 32 Chapter 2. Installation This page left blank intentionally. November 2001...

  • Page 33: Chapter 3. Operation

    ETU-01A. 3.2 Controls and Indicators All controls (push-button switches), LCD display and LED indicators are located on the ETU-01A front panel. The momentary on pushbutton switches are used to activate menu selections and select parameter settings.

  • Page 34: Operating Procedure

    • Diagnostic loops are required. The ETU-01A is turned on when its AC power cord is connected to an AC power outlet and the power switch is turned to the ON position. The ETU-01A will perform its internal POST (power on self test) to verify CPU, RAM, ROM and FPGA integrity.
  • Page 35 The POWER indicator will be lit, indicating that the ETU-01A is on. If the LCD display back light is set to either AUTO or ON, it will be lit. Verify the ETU-01A is in operation by checking that the front panel LEDs match the following indicator conditions: •...

  • Page 36: Menu Operation

    Chapter 3. LCD Operation 3.4 Menu Operation 3.4.1 Top Level Menus The following are the MAIN MENUs (top level). Press an arrow key to select another Main Menu or press ENTER to reach a sub menu. < S Y S T E M >...
  • Page 37 D I S P L A Y & S E T Display and set the internal real time clock of the ETU-01A. < M I S C E L L A N E O U S > S E T U P Set the mode of the LCD backlight either Off, On, or Auto.
  • Page 38 Chapter 3. LCD Operation < A L A R M B U F F E R > D I S P L A Y Display the Alarm Buffer and remote alarm buffer. < P E R F O R M A N C E >...
  • Page 39 Available parameters under Master Timing are: RECOVERY; Timing is recovered from the main E1 link. INT OSC; Timing is provided by the internal oscillator of the ETU-01A. DTE 1; Data channel accepts user transmit clock and provides receive clock to DCE on data port.
  • Page 40 Chapter 3. LCD Operation From the MASTER TIMING sub-menu press ESC to return to the SYSTEM PARAMETER screen. Press the Right Arrow key to the SEND MAPPING screen. < S E N D M A P P I N G >...
  • Page 41 P A R A M E T E R Press ENTER and the E1 LINE sub-menu will be displayed. E1 Line sets the frame type, CRC mode, cascade mode, idle code, RAI state and Line Code for the E1 link of the ETU-01A. < L I N E >...
  • Page 42 Chapter 3. LCD Operation 3.4.4 Timeslot Mapping Detail The following screen is an example of the screen under Timeslot Mapping. TIME SLOT MAPPING < T I M E S L O T > M A P P I N G Press ENTER.
  • Page 43 Chapter 3. LCD Operation 3.4.5 Data Port Parameter Detail The following shows the setup screens under the Data Port Parameter Screen. DATA PORT PARAMETER < D A T A P O R T > P A R A M E T E R Press ENTER R S 5 3 0 R E C O...
  • Page 44 Chapter 3. LCD Operation While at the Data Port display, only the multiplier value (N64 or N56) and handshaking (CTS) mode are user settable. As previously stated, the interface type is auto-detected and the data bandwidth is calculated by multiplying the multiplier value times the number of timeslots assigned to the channel under the Timeslot Mapping screen.
  • Page 45 Chapter 3. LCD Operation 3.4.6 Loop back Parameter Detail The following shows the setup screens under the Loop back Parameter Screen. LOOPBACK PARAMETER. < L O O P B A C K > P A R A M E T E R Press ENTER <...
  • Page 46 Chapter 3. LCD Operation 3.4.7 BERT Test Detail The following displays show the setup screens under the BERT test Parameter Screen. BERT TEST PARAMETER < B E R T T E S T > P A R A M E T E R Press ENTER <...
  • Page 47 Chapter 3. LCD Operation 3.4.8 Control Port Parameter Detail The following shows the setup screens under the Control Port Parameter Screen. CONTROL PORT PARAMETER < C O N T R O L P O R T > R A M E T E R Press ENTER C O N T R O L P O R T...
  • Page 48 ENTER to save and move to the Day field. Continue this procedure for the time settings and then press ESC to start the clock from the set time. The clock used in the ETU-01A is a Dallas DS1743 and is fully Y2K compliant.
  • Page 49 Chapter 3. LCD Operation 3.4.10 Miscellaneous Setup Detail The following shows the setup screens under the Miscellaneous Parameter Screen. Miscellaneous Parameter Display < M I S C E L L A N E O U S > S E T U P Press ENTER.
  • Page 50 Chapter 3. LCD Operation Press ENTER. R E S E T D E F A U L T P R E S S [ E N T E R ] Press the ENTER key to completely reset all parameters to their original factory defaults.
  • Page 51 ES, CURR UAS, etc. To exit the performance display, press ESC. To clear the data registers, press ENTER on the Reset page. This completes the detailed discussion of the function setup and operation of the ETU-01A via the front panel LCD display. November 2001...
  • Page 52 Chapter 3. LCD Operation ETU-01A Menu System Overview SYSTEM RECOVERY MASTER PARAMETER INT OSC TIMING DTE1 DTE2 SEND DTE3 MAPPING REMOTE MAPPING CONTROLLED E1 LINE FRAME PARAMETER UNFRAME CRC-4 CASCADE IDLE CODE (00~FF) ENABLE DISABLE HDB3 LINE CODE IMPEDANCE 120 Ohms...
  • Page 53 Chapter 3. LCD Operation ETU-01A Menu System Overview (cont.) BERT TEST FUNCTION PARAMETER CHANNEL DATA PATTERN 2047 2e15-1 2e20-1 QRSS 2e23-1 ALL 1 ALL 0 0011 3in24 1in16 1in8 1in4 ERR INS NONE SINGLE [ENTER] 10e-1 10e-2 10e-3 10e-4 10e-5...
  • Page 54 Chapter 3. LCD Operation ETU-01A Menu System Overview (cont.) ALARM BUFFER DISPLAY DISPLAY ALARM BUFFER DISPLAY REMOTE ALARM BUFFER CLEAR ALARM BUFFER PERFORMANCE BPV CNT DISPLAY ERR SECS LONG ES LONG UAS CURR SEC LONG SEC November 2001...

  • Page 55: Chapter 4. Control Port Operation

    Systems Engineer. Connection of the ETU-01A to the computer is accomplished by a DB9-pin one-to-one, male to female cable. The ETU-01A acts as a DCE to the PC’s DTE communications port. A convenient application, provided with the Microsoft Windows® NT/9X operating systems, is “HyperTerminal ™”.
  • Page 56 Chapter 4. Control Port Operation Figure 4-1. Example of terminal display November 2001...

  • Page 57: Menu System Detail

    “Display” and “Define” deal with all the system settings. The Display item will browse settings for viewing only, while under Define, all parameters may be both viewed and changed. ******************************************** **** CTC UNION TECHNOLOGIES CO.,LTD **** **** ETU-01A/SNMP TERMINAL MODE...
  • Page 58 Time Slot Data Port Control Port Alarm Buffer BERT Test Result Performance SNMP Agent Information ETU-01A Information Enter 1-A or Press "ESC" to previous menu. Enter 1 to display the Timing Parameters. << Display Timing Parameter >> Master Timing : RECOVERY Press "ESC"...
  • Page 59 Chapter 4. Control Port Operation << Display E1 Line Parameter >> Frame : CCS CRC-4 : OFF Cascade Mode : OFF Idle Code : 7E : DISABLE Line Code : HDB3 Impedance : 120 ohm Press "ESC" to previous menu. The above display shows the settings for Frame type, CRC setting, Cascade Mode, Idle code, RAI setting, Line Code and E1 interface impedance for the E1 line.
  • Page 60 Chapter 4. Control Port Operation The Time Slot mapping display shows the assignments for all of the 32 timeslots of the E1 frame. All timeslots 0~31 are shown with the assigned abbreviations shown directly beneath. Press ESC to return to the Display System Status menu and press 4 to display the Data Port parameter settings for the channel I/F module.
  • Page 61 OFF. 00/08/24 16:41:06 E1 Line MRAI OFF. 00/08/24 16:41:06 ETU-01A Power turn OFF. 00/08/24 18:33:27 Press "ESC" to previous menu or "SPACE" to review , "ENTER" to clear Press ESC to return to the Display Alarm Buffer Menu, press SPACE to display the screen again, or press ENTER to clear the alarm buffer.
  • Page 62 Chapter 4. Control Port Operation Press ESC to return to the Display System Status menu and press 7 to display the Bert Test Result screen. << Display Bert Test Result >> Rx Bit : 0 Rx Error Bit : 00000000000000000 Rx Error Rate : 0.0e-00 Press "ESC"...
  • Page 63 Press "ESC" to previous menu. The information displayed shows the hardware version numbers of the FPGA chip in the ETU-01A. To exit this display, press ESC. Then press ESC again to go to the very top menu display. November 2001...
  • Page 64 Chapter 4. Control Port Operation ******************************************** **** CTC UNION TECHNOLOGIES CO.,LTD **** **** ETU-01A/SNMP TERMINAL MODE **** **** SETUP MENU Ver. 1.16 **** ******************************************** Display System Status. Define System Parameter. Test Function Parameter. Password Reset Data to Default. EXIT DATE : 2000/08/24 TIME : 15:57:51 Enter 1-6 to select function.
  • Page 65 Chapter 4. Control Port Operation The first selection of system parameters is the Timing parameter, so let’s enter 1. << Define Master Timing Parameter >> Master Timing : RECOVERY Recovery Internal OSC DTE 1 DTE 2 DTE 3 Enter 1-5 or Press "ESC" to previous menu. The current master timing is shown as “Recovery”.
  • Page 66 Chapter 4. Control Port Operation To define the Frame type for the main E1 link, press 1. << Define E1 Line Frame Parameter >> Frame : CCS UNFRAME Enter 1-3 or Press "ESC" to previous menu. The current frame type setting is CCS. To change it enter 1~3. Press ESC to exit and leave the setting unchanged.
  • Page 67 Chapter 4. Control Port Operation In cascade mode, the unused timeslots will pass through their received data. Enter 2 to turn cascade mode ON, 1 to turn cascade mode OFF or ESC to exit to the Define E1 Line Parameters menu. Press ESC and enter 4 to define the Idle code for the E1 line.
  • Page 68 Chapter 4. Control Port Operation Press 1 to define a Line Code of HDB3, press 2 to define a Line Code of AMI or press ESC. Press ESC to return to the Define E1 Line Parameter menu. Press ESC again to return to the top of the Define System menu. <<...
  • Page 69 Chapter 4. Control Port Operation << Define Time Slot Mapping >> TIME SLOT 01 TYPE : Data port Data Port Enter 1-2 or Press "ENTER" to next Time Slot or "ESC" to previous menu. The slot number and map type are shown. Select 1 to remove the timeslot from the data port, press 2 to assign the timeslot to the data port.
  • Page 70 Chapter 4. Control Port Operation Selecting 2 will take the defined time slot mapping for the local unit and send it to the remote ETU-01A unit. In this way, the bandwidth can be controlled from the local unit. << Define Time Slot Mapping >>...
  • Page 71 Chapter 4. Control Port Operation Press 4 to define the Data port parameters. << Define Data Port Parameter >> TYPE : RS530 MULTIPLIER : N64 CTC : ON V.54 Mode : OFF SPEED : 256Kbps Multiplier Enter 1-2 or Press "ESC" to previous menu. Press the appropriate number 1~2 corresponding to the Data Port parameter to be defined.
  • Page 72 Chapter 4. Control Port Operation << Define Data Port Parameter >> TYPE : RS530 MULTIPLIER : N64 CTS : ON V.54 Mode : OFF SPEED : 256Kbps Multiplier Enter 1-2 or Press "ESC" to previous menu. Now we will select 2 to set the parameter for CTS. <<...
  • Page 73 Chapter 4. Control Port Operation The following is an example of setting the system date and time. Press 5. << Define Date & Time >> DATE TIME DATE : 2000/08/24 TIME : 16:24:25 Enter 1-2 or Press "ESC" to previous menu. To define the Date, press 1.
  • Page 74 Chapter 4. Control Port Operation << Define Time >> HOUR (00 ~ 23) : 16 MINUTE (00 ~ 59) : 27 SECOND (00 ~ 59) : 00 Enter the Hour, Minutes, and Seconds. (Single digit entries must have a leading zero.) <<...
  • Page 75 Set Community String. < Public > Save Parameter to SNMP Card and Exit. Enter 1-5 or Press "ESC" to previous menu. NOTE: The SNMP menu is not available if the optional SNMP card is not installed in the ETU-01A. November 2001...
  • Page 76 Chapter 4. Control Port Operation Press 1 to set the agent information (IP address and subnet mask). << Set the Agent Information >> Local IP Address. <192.168.0.10> Subnet Mask. <255.255.255.0> Gateway IP Address. <192.168.0.254> Enter 1-3 or Press "ESC" to previous menu. Press 1 to set the IP address, 2 to set the subnet mask, 3 to set the default gateway, or ESC to return to the SNMP agent setup menu.
  • Page 77 Enter 1-2 or Press "ESC" to previous menu. Enter 1 to set IP address of the input agent to receive traps sent by the ETU-01A. Enter 2 to set the severity of traps sent; informational, warning, or severe. November 2001...
  • Page 78 Chapter 4. Control Port Operation Press ESC to the SNMP agent setup menu << SNMP Agent Setup Menu >> Set the Agent Information. Set Access Control Table. Set Trap Receivers Table. Set Community String. < Public > Save Parameter to SNMP Card and Exit. Enter 1-5 or Press "ESC"...
  • Page 79 Chapter 4. Control Port Operation << SNMP Agent Setup Menu >> Set the Agent Information. Set Access Control Table. Set Trap Receivers Table. Set Community String. < Public > Save Parameter to SNMP Card and Exit. Enter 1-5 or Press "ESC" to previous menu. Up until now, none of the changes made have been saved to the SNMP card.
  • Page 80 Chapter 4. Control Port Operation ******************************************** **** CTC UNION TECHNOLOGIES CO.,LTD **** **** ETU-01A/SNMP TERMINAL MODE **** **** SETUP MENU Ver. 1.16 **** ******************************************** Display System Status. Define System Parameter. Test Function Parameter. Password Reset Data to Default. EXIT DATE : 2000/08/24 TIME : 17:14:42 Enter 1-6 to select function.
  • Page 81 Chapter 4. Control Port Operation The first two lines of the display show the current loop back status of the E1 line and the Data Port. In the next example we will set loop back for the E1 Line. Press 1. <<...
  • Page 82 Chapter 4. Control Port Operation If we now ESC back, the display of all loop back status can be observed. Note that the E1 Line is now set for Local Analog Loop Back. << Define LoopBack Test Port >> E1 Line Loopback : LOCAL ANALOG Data Port LoopBack : LOOPBACK OFF E1 Line Data Port...
  • Page 83 Chapter 4. Control Port Operation Press ESC and the status will again be displayed. << Define LoopBack Test Port >> E1 Line Loopback : LOOPBACK OFF Data Port LoopBack : LOOPBACK OFF E1 Line Data Port Enter 1-2 or Press "ESC" to previous menu. Press ESC to back out to the Define Test Mode menu.
  • Page 84 Chapter 4. Control Port Operation Enter 2 to Start the BERT function. << Bert Test Function >> Function : ON Enter 1-2 or Press "ESC" to previous menu. Enter 1 to Stop BERT function. Note that pressing 2 and 1 repeatedly toggles the function on and off.
  • Page 85 Chapter 4. Control Port Operation Press ESC. Now we will select the Data Port for BERT testing. Press 2. << Bert Test Channel >> Channel : E1 E1 Line Data Port Enter 1-2 or Press "ESC" to previous menu. Enter 2, to select Data Port for testing. <<...
  • Page 86 Chapter 4. Control Port Operation Now select a different pattern for testing. Enter 3. << Bert Test Pattern >> Pattern : 511 2047 2e15-1 2e20-1 QRSS 2e23-1 ALL 1 ALL 0 0011 3in24 1in16 1in8 1in4 Enter 1-E or Press "ESC" to previous menu. In this example, we will enter 9, to select the ALT 0101 pattern, then press ESC.
  • Page 87 Chapter 4. Control Port Operation An important function of BERT is the ability to insert errors at a pre-defined error rate or to insert single bit errors (to verify proper loop back) on command. Press 4. << Bert Test Error Insert >>...
  • Page 88 Chapter 4. Control Port Operation << Display BERT Test Results >> Rx Bit: 39204867 Rx Error Bit: 4 Rx Error Rate: 1.0e-07 Press "ESC" to previous menu. Note that almost 40 million bits were received with exactly 4 inserted bit errors. The error rate is about 1 in 10 million bits. After viewing the BERT results, press ESC.
  • Page 89 Press ESC to the Bert Test Parameter page. Then press ESC again to exit to the Define Test Mode screen, followed by ESC again to the top menu page. ******************************************** **** CTC UNION TECHNOLOGIES CO.,LTD **** **** ETU-01A/SNMP TERMINAL MODE ****...
  • Page 90 Chapter 4. Control Port Operation The following is an example of Password setting for the ETU-01A. Press 4. << Password >> Set Password Clear Password Enter 1-2 or Press "ESC" to previous menu. Enter 1 to set the password. <<...
  • Page 91 Enter original password : Enter the original password, 1234. *** Password is DISABLED *** Press "ESC" to previous menu. Press ESC twice to return to the main menu. ******************************************** **** CTC UNION TECHNOLOGIES CO.,LTD **** **** ETU-01A/SNMP TERMINAL MODE **** **** SETUP MENU Ver.
  • Page 92 Reset Data to Factory Default. >> Press "ENTER" to confirm, "ESC" to previous menu. Press ENTER to reset to factory defaults. To exit without resetting press ESC. Press ENTER. ******************************************** **** CTC UNION TECHNOLOGIES CO.,LTD **** **** ETU-01A/SNMP TERMINAL MODE **** **** SETUP MENU Ver.
  • Page 93 March 1, 1999. To exit the terminal mode. press 6. The terminal connection will be dropped and the following will be displayed. ETU-01A TERMINAL MODE IS DISCONNECTED This completes the detailed examples of terminal mode operation for the ETU-01A.
  • Page 94 Chapter 4. Control Port Operation This page left blank intentionally. November 2001...

  • Page 95: Chapter 5. Loop Back And Bert Testing

    5.2 Status Indicators and Messages Indicators: The status, of the ETU-01A, is indicated by viewing the Signal Loss, Sync Loss, Alarm, Error and Test LED indicators. User data channel activity is indicated by the corresponding RD and TD LED indicators.
  • Page 96 ON when SPACE is being transmitted, Flashing when data is transmitted. Error ON when BERT function is activated and detects bit errors. ON when the ETU-01A is in any loop back mode or BERT Test function is on. Flashing when in loop back initiated by the remote unit.
  • Page 97 Check other equipment Loss of E1 link frame E1 SYNC LOSS ON/OFF providing the same frame sync. link to the ETU-01A. Replace the ETU-01A. Check that line attenuation Bipolar violations in does not exceed that the E1 link receive specified for E1 line.

  • Page 98: User Activated Loop Back

    Chapter 5. Loop Back and BERT Testing 5.3 USER Activated Loop Back. The ETU-01A supports the following types of test loop backs. E1 line local analog loop back. E1 line local digital loop back. E1 line local payload loop back.
  • Page 99 The Data Port must receive its own transmission. This loop back fully tests the local ETU-01A operation and the connections to the local DTE. During this loop back, the ETU-01A E1 line sends an unframed “all ones” signal to the remote equipment.
  • Page 100 DSU. This loop back test checks the performance of the local ETU- 01A, the remote ETU-01A and the connections between them, as shown in Figured 5-2. LOCAL ETU-01A...
  • Page 101 Digital Service Unit (DSU). This loop back test checks the performance of the local ETU-01A, the remote ETU-01A and the connections between them, as shown in Figured 5-3.
  • Page 102 The remote loop back codes, also referred to as data link messages, for the ETU-01A utilize the 4 spare Sa bits within the framing timeslot (TS0). Therefore, any remote loop back functions, including remote analog loop back (LLB) and remote payload loop back (PLB) are only available when running in framed mode (PCM30 or PCM31).
  • Page 103 Digital Service Unit (DSU). This loop back test checks the performance of the local ETU-01A, the remote ETU-01A and the connections between them, as shown in Figured 5-5.
  • Page 104 Data Port local analog loop back is performed by connecting the data channel transmit data (TD) to the input of the receive path (RD) before the CSU, as shown in Figure 5-6. The test signal is provided by the local DTE. LOCAL ETU-01A User Data Port E1 LINE Figure 5-6.
  • Page 105 Data Port local digital loop back is performed by connecting the local data channel receive data (RD) to the data channel transmit input (TD), as shown in Figure 5-7. The test signal is then provided by the remote user DTE. LOCAL ETU-01A User Data Port E1 LINE Figure 5-7.
  • Page 106 (RD) to the channel transmit input (TD). This loop back test checks the performance of the local ETU-01A, the remote ETU-01A and the connections between them, as shown in Figured 5-8.
  • Page 107 For a local test, use the E1 Line local analog loop back (or hardwire main link RX connector to TX) or the Data Port local analog loop back, to return the data back to the local DTE, as shown in Figure 5-9. LOCAL ETU-01A Generator User Tester Data “1”...
  • Page 108 DTE over the E1 link, as shown in Figure 5-10. Additionally, you may use the local site’s E1 link remote analog, remote payload or Data Port V.54 loop back to return the data back to the local DTE. LOCAL ETU-01A REMOTE ETU-01A Generator Tester...

  • Page 109: Chapter 6. Snmp Option

    Chapter 6. SNMP Option 6.1 Installation Installation of the SNMP optional feature should be performed by qualified service personnel only. As with all electronic devices that are powered from an AC line, dangerous voltages may be present inside the unit. The technician should exercise proper care and judgement. Only open the unit for service after disconnecting the unit from the power source.
  • Page 110 Chapter 6. SNMP Option 3. Refer to Figure 6-2, the SNMP Exploded view. Apply thread-lock to three mounting screws and attach the three brass standoffs to the main PCB as shown. The standoffs are to be located on the component side of the main PCB.
  • Page 111 Chapter 6. SNMP Option IC reference mark Figure 6-1: Firmware Chip Location Figure 6-2: SNMP Installation Exploded View November 2001...

  • Page 112: Simple Network Management Protocol

    Chapter 6. SNMP Option 6.2 Simple Network Management Protocol 6.2.1 SNMP Overview The Simple Network Management Protocol (SNMP) is one of many protocols in the Internet Protocol (IP) suite. SNMP is the protocol recommended specifically for the exchange of management information between hosts residing on IP networks.
  • Page 113 Chapter 6. SNMP Option 6.2.2 SNMP Operations The SNMP protocol includes four types of operations: getRequest Command for retrieving specific value of an “instance” from the managed node. The managed node responds with a getResponse message. getNextRequest Command for retrieving sequentially specific management information from the managed node.
  • Page 114 Chapter 6. SNMP Option The MIB includes the definitions of relevant managed objects (MIB variables) for the specific node. Various MIB's can be defined for various management purposes, types of equipment, etc. The management data itself is a collection of integer, string and MIB address variables that contain all the information necessary to manage the node.
  • Page 115 The assigned number designates the top of an enterprise-specific sub-tree of non-standard MIB's. Within this context, CTC Union has been assigned the enterprise number 4756. Under this scheme, the path to CTC Union’s Enterprise branch would be: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).ctcu(...
  • Page 116 Chapter 6. SNMP Option 6.2.5 SNMP Communities To enable the delimitation of management domains, SNMP uses "communities". Each community is identified by a name, which is an alphanumeric string of up to 255 characters defined by the user. Any SNMP entity (this term includes both managed nodes and management stations) is assigned by its user a community name.

  • Page 117: Breakdown Of Mib For Etu-01A

    Chapter 6. SNMP Option 6.3 Breakdown of MIB for ETU-01A Branch Leaf object Set Parameters 0. systemEntry 0. masterTimin 0. Recovery 1. Internal OSC 2. DTE1 (transparent) 3. DTE2 (external) 4. DTE3 1. sendMapping 2. remoteConfig 1. e1LineEntry 0. frame 0.
  • Page 118 Chapter 6. SNMP Option Branch Leaf Set Parameter 5. CONTROL PORT 0. SPEED 0. 300 bps PARAMETER 1. 600 bps 2. 1200 bps 3. 2400 bps 4. 4800 bps 5. 9600 bps 6. 19200 bps 6. ALL CHANNEL 1. Loop back Off 2.
  • Page 119 Chapter 6. SNMP Option Branch Leaf Set Parameter 9. MISCELLANEOUS 0. LCD LIGHT 0. AUTO 1. ON 2. OFF 1. RESET TO DEFAULT (W) Press [ENTER] Send ASCII 13 10. ALARM BUFFER 0. DISPLAY ALARM See Text 5 1. CLEAR ALARM (W) Press [ENTER] 13 See Text 6 11.
  • Page 120 Chapter 6. SNMP Option Text 4: Date & Time transfer format (BCD code) Text 1 (9) Text 2 (10) Text 3 (11) Text 4 (12) 0. DATE Century (19-20) Year (00-99) Month (01-12) Date (01-31) 1. TIME Hour (00-23) Minute (00-59) Second (00-59) Text 5: Alarm Buffer trap code:...
  • Page 121 Chapter 6. SNMP Option Text 6: LED Status: Parameter Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Test Error Sub Alarm Sub SYNC Loss Sub Signal Loss Main Alarm Main SYNC Main Signal Loss Loss ETU01-A SMNP Trap codes...
  • Page 122 Chapter 6. SNMP Option November 2001...

  • Page 123: Appendix A. I/F Specifications

    A.1 E1 Line Connectors A.1.1 D-15 connector The E1 link D-15 connector conforms to AT&T Pub 62411. The physical interface is a 15-pin female D-type connector. Designation Direction Function TTIP From ETU-01A Transmit data ↔ ↔ Frame ground RTIP To ETU-01A Receive data ↔...
  • Page 124 Appendix A. I/F Specifications A.1.2 BNC connector Conn. Designation Direction Function Center TTIP From ETU-01A Transmit data ↔ ↔ Sleeve TRING Signal return Center RTIP To ETU-01A Receive data ↔ ↔ Sleeve RRING Signal return Table A-2 E1 BNC connector pin allocation...

  • Page 125: X.21 User Data Channel Connector

    Appendix A. I/F Specifications A.2 X.21 User Data Channel Connector When the ETU-01A is ordered with an X.21 interface, the physical interface is a 15-pin female D-type connector wired in accordance with Table A-3. SIGNAL PIN CIRCUIT DIRECTION DESCRIPTION FUNCTION Chassis ground.

  • Page 126: V.35 User Data Channel Connector

    Appendix A. I/F Specifications A.3 V.35 User Data Channel Connector When the ETU-01A is ordered with a V.35 interface, the physical interface is a 34-pin female M-Block type connector wired in accordance with Table A-4. SIGNAL CIRCUIT DIRECTION DESCRIPTION FUNCTION Protective Chassis ground.

  • Page 127: User Data Channel Connector

    Appendix A. I/F Specifications A.4 RS-530 User Data Channel Connector When the ETU-01A is ordered with an RS-530 interface, the physical interface is a 25-pin female D-type connector wired in accordance with Table A-5. SIGNAL PIN CIRCUIT DIRECTION DESCRIPTION FUNCTION ↔...

  • Page 128: User Data Channel Connector

    Appendix A. I/F Specifications A.5 RS-232 User Data Channel Connector When the ETU-01A is ordered with an RS-232 interface, the physical interface is a 25-pin female D-type connector wired in accordance with Table A-6. SIGNAL PIN CIRCUIT DIRECTION DESCRIPTION FUNCTION Protective Chassis ground.

  • Page 129: To Rs-449 Adapter Cable

    Appendix A. I/F Specifications A.6 RS-530 to RS-449 Adapter Cable When the ETU-01A is ordered with a RS-449 interface, an RS-530 module and adapter cable provide the proper interface. The physical interface is a 37-pin male D-type connector wired in accordance with Table A-7.

  • Page 130: G.703/64K Codirectional Channel Connector

    Appendix A. I/F Specifications A.7 G.703/64K Codirectional Connector When the ETU-01A is ordered with a G.703/64K interface, the physical interface is a 15-pin female D-type connector wired in accordance with Table A-8. SIGNAL DIRECTION DESCRIPTION FUNCTION Chassis ground. Protective ↔...

  • Page 131: G.703/Nrz User Data Channel Connector

    Appendix A. I/F Specifications A.8 G.703/NRZ When the ETU-01A is ordered with an NRZ interface, the physical interface is 4 BNC female connectors wired in accordance with Table A-9. Specifications: Line Code: Impedance: 50 ohms Signal Level: Logic "1": 0V +/- 0.3V Logic "0": -1.5V +/- 0.3V...

  • Page 132: 10Base-T User Data Channel Connector

    Appendix A. I/F Specifications A.9 ET10 10BASE-T Ethernet Bridge Interface When the ETU-01A is ordered with an ET10 Interface, the unit is not only an access unit for E1, but also becomes a high performance WAN bridge for 10Base-T Ethernet extension.

  • Page 133: Appendix B. Performance Monitor

    • CRC-4 Disabled: in this case, the ETU-01A does not support the capabilities listed above. However, the ETU-01A now becomes capable of providing statistics for bipolar violations (BPV).
  • Page 134 LCD, the register can be reset by pressing ENTER when the RESET menu item is displayed. When the CRC-4 function is disabled, the ETU-01A will be able to detect bipolar violations and store them in a register for 1 second.
  • Page 135 Appendix B: Performance Monitor The remaining performance monitor data is available whether CRC-4 is enabled or not. Current errored seconds (ES) An errored second is any second containing one or more CRC error events, or one or more controlled slip events. The data is collected for the current 15-minute interval.
  • Page 136 Appendix B: Performance Monitor Long term interval (LONG SEC) The number of 15-minute intervals in the powered-up period. Performance Monitor Brief Table Display Description Range BPV Cnt The total number of BPV errors during the last second. The display is updated every second. 0-65535 CRC-4 must be disabled.

  • Page 137: Appendix C. Rack Mounting Option

    Appendix C: Rack Mounting Option All Standalone/Rack Series units have the option of adding standard EIA 19” rack mount capability. Two rack mount options provide for either mounting a single unit (half space) in a rack or for mounting two units in tandem (full space).
  • Page 138 Appendix C: Rack Mounting Option In order to save rack mount space, units may be mounted in tandem. Please refer to the following drawing examples for this application. Figure C-2: Tandem Units Mounting (Exploded) Figure C-3: Tandem Units Mounting Detail The tandem kit includes two (2) rack mount adapters, one (1) each of inner and outer central mounting adapters, twenty (20) 3x8mm self-tapping screws, and four (4) #12-24x0.5”...
  • Page 139 NOTES: November 2001...
  • Page 140 NOTES: November 2001...
  • Page 141 CTC Union Technologies Inc Fax:(886)2 27991355 Tel:(886)2 26591021 Attn : Technical Support Division E-mail:info@ctcu.com From Company: Name: Tel: ( Fax:( § MODEL: ETU-01A/AC ETU-01A/DC § ACTIVITY: As attached in DIP switch setting table § SYS CONFIGURATION: § Question: March 2002...
  • Page 142 Technical Inquiry Form MODEL No.: ETU-01A/AC ETU-01A/DC Please fill in the configuration settings with 'ü ü ' marks into the following table. Send it to us by fax, and we will reply to you immediately. FUNCTION Parameter Your setting Suggested...
  • Page 144 CTC Union Technologies Co., Ltd. Far Eastern Vienna Technology Center (Neihu HI-TEC Park) 8F, No.60, Zhouzi St., Neihu, 114, Taipei, Taiwan Phone:(886) 2.2659.1021 (Rep) Fax:(886) 2.2799.1355 E-mail: mailto:info@ctcu.com http://www.ctcu.com...
